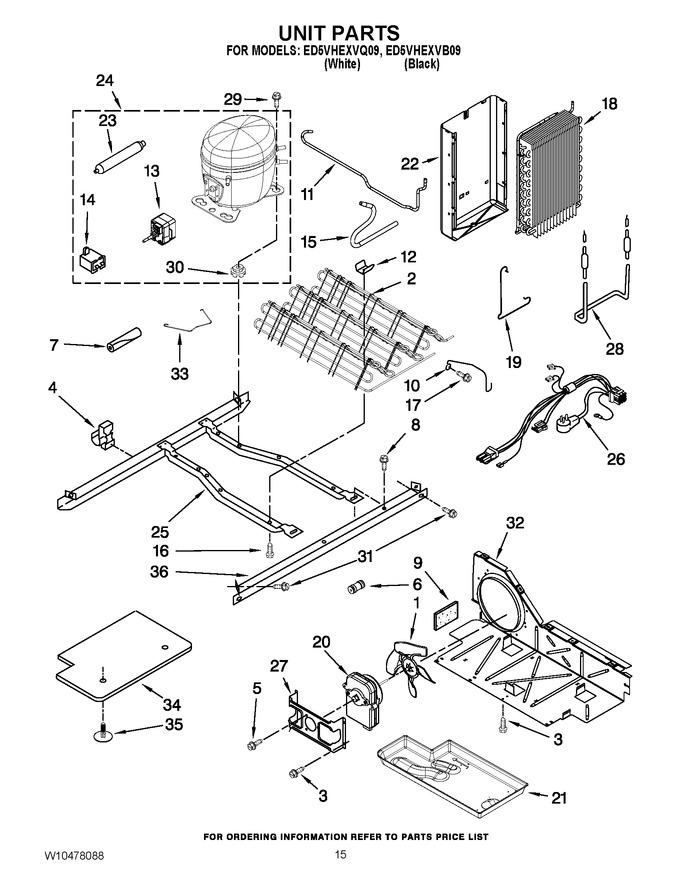

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
2	2324712		Condenser Assembly   (Replaces: W10196260)				$ 323.45
3	WP489464		Screw 8-18 X 1/2   (Replaces: W10001250)			Immediately	$ 8.38
4	2208280		Clip, Wire		Appelez-nous	-
5	WP8533993		Screw 7-18 X 1/2   (Replaces: 8533993)				$ 11.21
6	WPW10334458		Water Connector   (Replaces: W10271540)				$ 22.67
7	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
8	WP489427		Screw 1/4-20 X 5/8   (Replaces: W10146358)				$ 7.84
9	2217070		Pad, Foam				$ 22.08
10	2260517		Guard, Fan		Appelez-nous	-
11	W10528574		Tube Suction   (Replaces: W10177642)				$ 160.36
12	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 19.38
13	WPW10189190		Start Device, Combination (start Relay And Overload)   (Replaces: W10189190)			Immediately	$ 131.29
14	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
15	W10371237		Process Tube		Appelez-nous	-
16	W11544659		Screw 8-18 X 1-1/4   (Replaces: 8281232)				$ 14.35
17	WP489478		Screw 8-15 X 1/2   (Replaces: W10001260)				$ 8.18
18	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
19	2161324		Clip		Appelez-nous	-
20	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
21	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
22	2217194		Heat Shield		Appelez-nous	-
23	WPW10143759		Drier   (Replaces: W10423407)			Immediately	$ 30.78
24	W10233961		Compressor (includes Items 13, 14, 23 & 30)   (Replaces: W10183575)				$ 643.40
25	W10196321		Unit Mounting Frame		Appelez-nous	-
26	WPW10309395		Unit, Harness (includes Power Cord)   (Replaces: W10309395)				$ 308.35
27	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.93
28	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
29	W11661574		Screw 1/4-28 X .90   (Replaces: 489473)				$ 14.29
30	W11661108		Grommet   (Replaces: 2183042)				$ 15.21
31	489340		Screw 5/16 X .630		Appelez-nous	-
32	W10896764		Air Baffle   (Replaces: W10411518)				$ 101.20
33	W11661170		Clip, Retaining   (Replaces: W10174384)			Immediately	$ 11.87
34	2304899		Unit Cover, Bottom (includes Item 35)		Appelez-nous	-
35	489396		Clip				$ 11.26
36	2305374		Unit Mounting Rail				$ 84.67
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (5.0oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
