SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

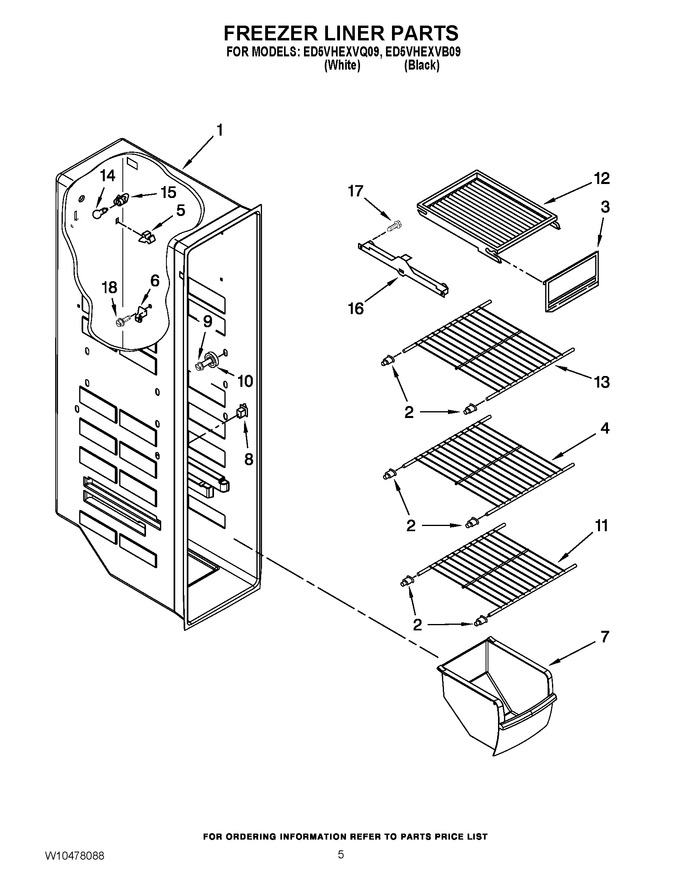

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Serviced)		Appelez-nous	-
2	WPW10130299		Cup, Shelf Mounting   (Replaces: W10130299)			Immediately	$ 14.00
3	WP2171713		Door, Ice Compartment   (Replaces: 2171713)				$ 87.27
4	WPW10318947		Shelf, Wire   (Replaces: W10318947)				$ 87.44
5	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.42
6	2196206		Support, Stud		Appelez-nous	-
7	W11577967		Freezer Bin   (Replaces: 2309757)				$ 91.71
8	W11396033		Switch, Light   (Replaces: 12466114)			Immediately	$ 37.30
9	W10191952		Screw 8-18 X 1-3/8				$ 5.65
10	W11527119		Stud Assembly (includes Item 9)   (Replaces: W10173127)		Appelez-nous	-
11	WPW10318948		Shelf, Wire   (Replaces: W10318948)				$ 147.84
12	2171714		Shelf, Top Compartment		Appelez-nous	-
13	W10318946		Shelf, Wire				$ 37.05
14	W11679940		Light Bulb   (Replaces: W10311505)			Immediately	$ 11.30
15	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
16	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
16	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
17	718257		Screw 8-15 X 1-3/8   (Replaces: 489100)		Appelez-nous	-
18	W10142289		Screw 8-18 X 5/8				$ 9.15

    View Diagram in Separate Window       Print Part List
