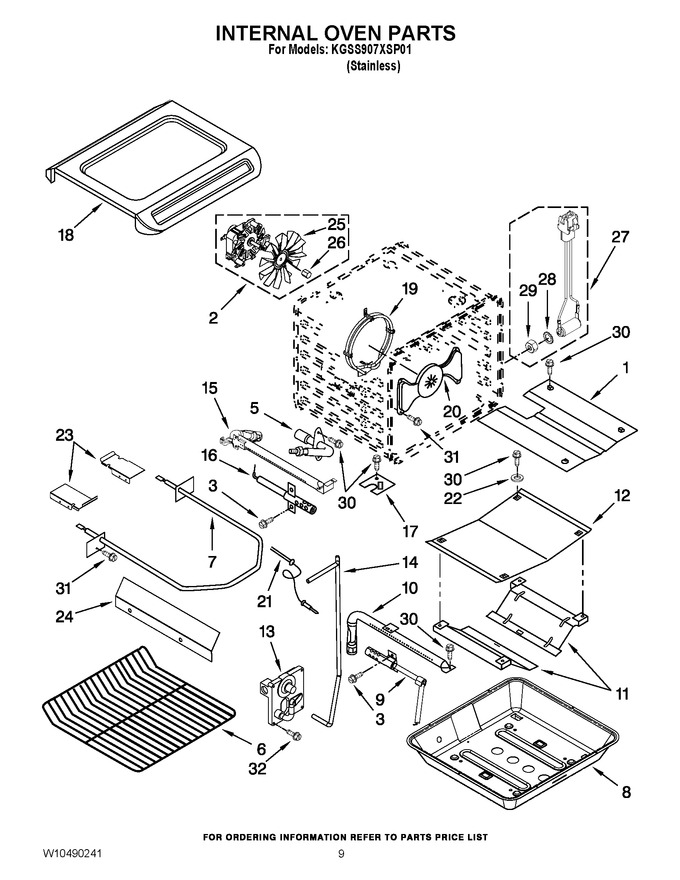

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9752980 | Shield, Flame |
|
$ 38.26 | |||||
| 2 | W10794022 | Motor, Convection (Replaces: W10196895) |
|
Immediately | $ 214.63 | ||||
| 3 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 5 | 9757779 | Fitting, Broiler |
|
$ 130.68 | |||||
| 6 | WPW10179152 | Rack, Oven (Replaces: W10179152) |
|
Immediately | $ 119.61 | ||||
| 7 | W10207402 | Element, Broil |
|
$ 146.69 | |||||
| 8 | WPW10145744 | Pan Support, Bake (Replaces: W10145744) |
|
$ 214.15 | |||||
| 9 | WP9760229 | Electrode, Bake (Replaces: 9760229) |
|
Immediately | $ 154.97 | ||||
| 10 | WP9760228 | Burner, Bake Log (Replaces: 9760228) |
|
$ 262.74 | |||||
| 11 | 9752737 | Shield, Oven |
|
$ 22.04 | |||||
| 12 | 4453984 | Shield, Bake Flame |
|
- | |||||
| 13 | WP9763716 | Valve, Assembly (Replaces: 9763716) |
|
Immediately | $ 534.59 | ||||
| 14 | 9756831 | Tube, Broil |
|
$ 155.53 | |||||
| 15 | W10111219 | Burner, Broil |
|
$ 94.75 | |||||
| 16 | WP8054129 | Ignitor, Broil (Replaces: 8054129) |
|
Immediately | $ 137.14 | ||||
| 17 | 4454009 | Cover, Ignitor |
|
$ 5.31 | |||||
| 18 | WPW10272546 | Pan, Oven Bottom (Replaces: W10272546) |
|
Immediately | $ 222.79 | ||||
| 19 | 9760777 | Element, Convect |
|
$ 286.80 | |||||
| 20 | W10104790 | Cover, Fan |
|
$ 81.08 | |||||
| 21 | WP9755542 | Probe, Meat (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 22 | 9757778 | Bushing |
|
$ 97.63 | |||||
| 23 | W10153093 | Shield, Element (right) |
|
- | |||||
| 23 | W10153094 | Shield, Element (left) |
|
- | |||||
| 24 | W10153101 | Diverter, Air |
|
$ 33.97 | |||||
| 25 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 26 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 21.78 | |||||
| 27 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 108.02 | ||||
| 28 | WP9755547 | Washer, Lock External (Replaces: 9755547) |
|
$ 6.41 | |||||
| 29 | WP9755546 | Hex Nut (Replaces: 9755546) |
|
$ 7.30 | |||||
| 30 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 31 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 32 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 |
