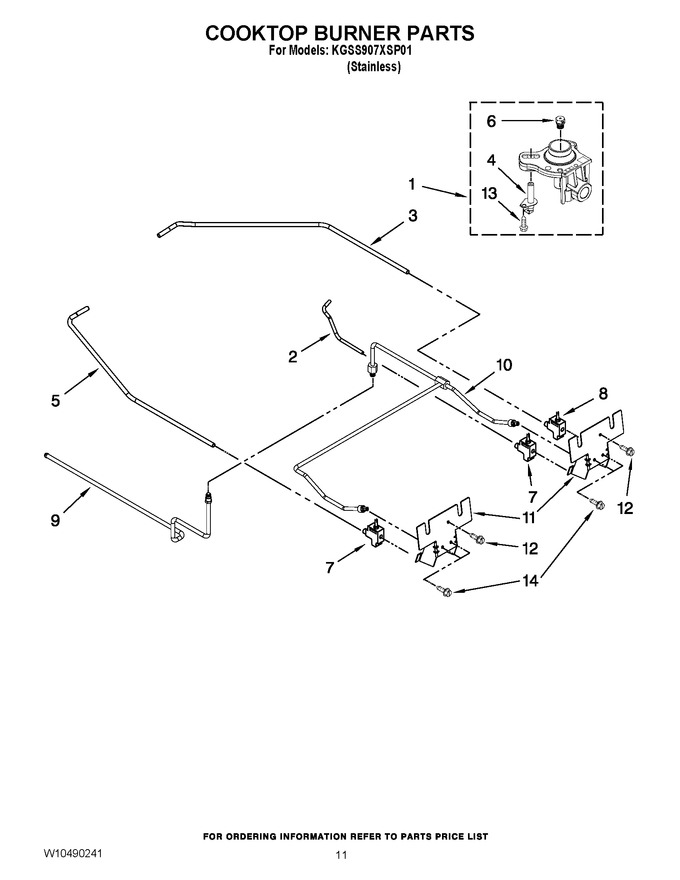

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10128455 | Burner Base (rr) |
|
$ 48.58 | |||||
| 1 | WPW10128446 | Burner Base (lr, Rf) (Replaces: W10128446) |
|
Immediately | $ 113.68 | ||||
| 2 | 9761069 | Tubing, Burner(rf) |
|
$ 49.98 | |||||
| 3 | 9761070 | Tubing, Burner(rr) |
|
$ 52.24 | |||||
| 4 | WPW10110378 | Ingitor, Orifice Holder (Replaces: W10110378) |
|
Immediately | $ 54.71 | ||||
| 5 | 9761068 | Tubing, Burner(lr) |
|
$ 50.22 | |||||
| 6 | 9762937 | Orifice (lr, Rf) |
|
$ 103.80 | |||||
| 6 | 9762938 | Orifice (rr) |
|
$ 67.28 | |||||
| 7 | WP4456816 | Valve, Burner Small (Replaces: 4456816) |
|
$ 334.31 | |||||
| 8 | WP4456817 | Valve, Burner Large (Replaces: 4456817) |
|
$ 334.11 | |||||
| 9 | 4453754 | Tubing Gds To Manifold |
|
$ 208.86 | |||||
| 10 | 9761648 | Tube, Manifold |
|
$ 66.48 | |||||
| 11 | 9761641 | Manifold (tcb) |
|
$ 85.31 | |||||
| 11 | 9761642 | Manifold (cooktop) |
|
$ 192.54 | |||||
| 12 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 13 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 14 | 12002277 | Screw (Replaces: 7101P640-60) |
|
$ 318.24 |
