Diagram for 09 - Control Panel Parts
09 - Control Panel Parts

Diagram for 10 - Optional Parts (not Included)
10 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10156273 Control Panel Special Order $ 258.99

2 WP9761566 Switch, Membrane   (Replaces: 9761566) In-Stock Immediately $ 450.25

3 WP9762794 Control, Interface   (Replaces: 9762794) Special Order $ 537.67

4 W10105370 Shield, Console Special Order $ 69.83

5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

6 9757409 Support, Gas Valve Special Order $ 81.65

7 9761745 Bracket, Touchsensor Special Order $ 40.75

8 9780271 Screw Appelez-nous -
9 WPW10246105 Knob-single   (Replaces: W10246105) Special Order $ 45.82

10 WPW10331686 Module, Spark   (Replaces: 9758080) In-Stock Immediately $ 393.86

11 WPW10246104 Knob-dual   (Replaces: W10246104) Special Order $ 48.26


    View Diagram in Separate Window     Print Icon   Print Part List

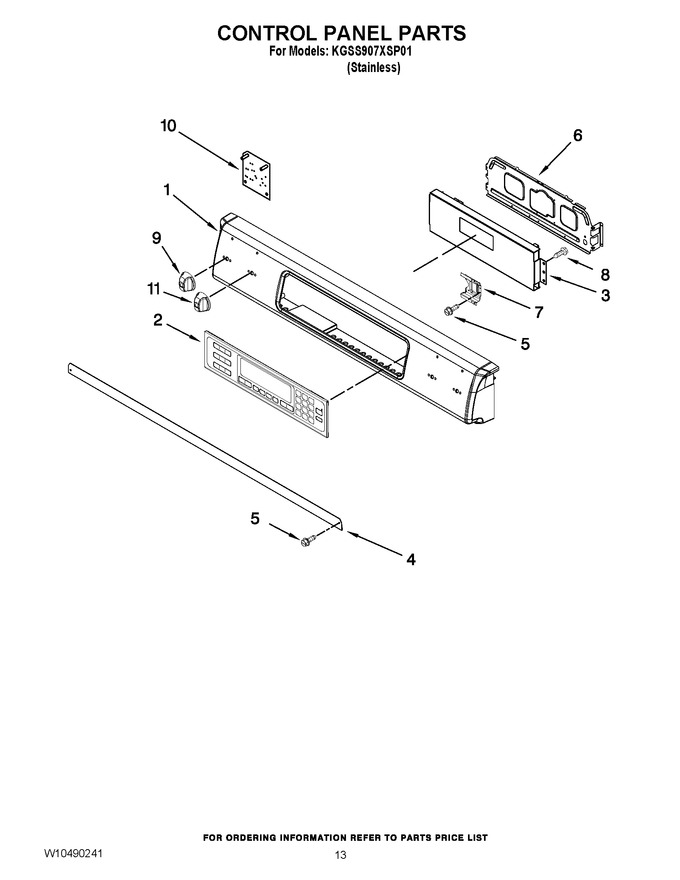

Diagram for KGSS907XSP01
