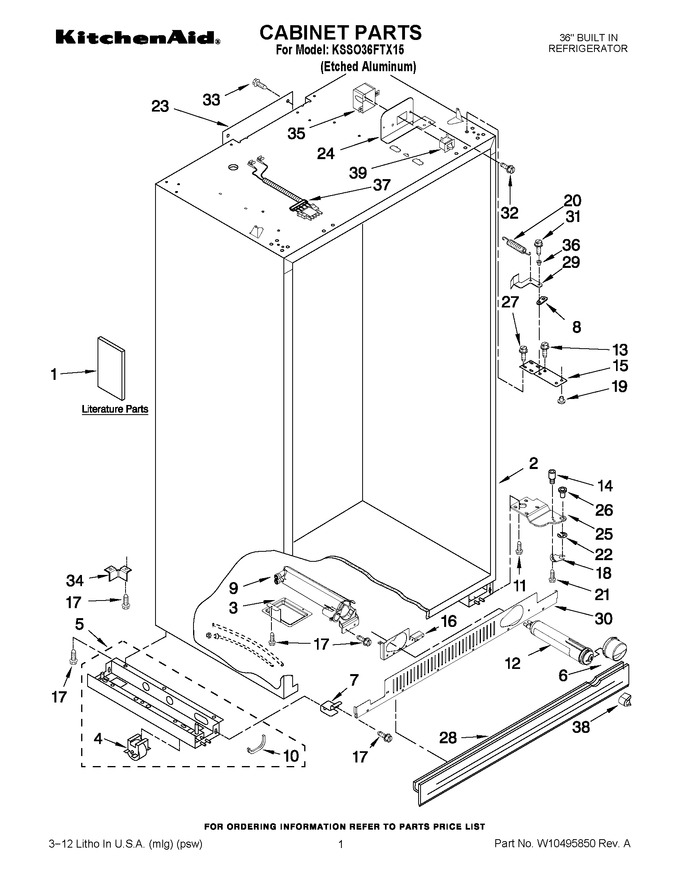

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10303989		Use & Care Guide		Appelez-nous	-
1	W10477240		Energy Label		Appelez-nous	-
1	W10445508		Service & Wiring Sheet		Appelez-nous	-
1	2306337		Icemaker And Ingredient Care Center Service Sheet		Appelez-nous	-
1	W10469185		Main Control Service Sheet		Appelez-nous	-
1	W10379133		Installation Instructions		Appelez-nous	-
2	N/P		Cabinet (not Serviced)		Appelez-nous	-
3	2318189		Tray, Drip Filter				$ 148.73
4	WPW10138054		Roller Assembly, Front & Rear   (Replaces: W10138054)				$ 45.34
5	W10860229		Support Base Assy (left Side)   (Replaces: W10279275)				$ 381.83
5	W10860448		Support Base Assy (right Side)   (Replaces: W10138423)			Immediately	$ 383.00
6	WP2260518B		Cap, Water Filter   (Replaces: 2260518B)			Immediately	$ 28.26
7	W10839844		Mounting Bracket, Grill   (Replaces: 2307640)				$ 43.26
8	2005783		Cam, Door Closer				$ 26.20
9	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
10	2307584		Grommet, Crossover Tube (left Side)				$ 23.40
11	3400525		Screw				$ 12.83
12	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
13	WP8281164		Screw   (Replaces: 8281164)				$ 11.33
14	WP2005378		Screw, Door Stop   (Replaces: 2005378)				$ 12.02
15	2252291		Hinge, Top (left Side)				$ 79.35
15	2252292		Hinge, Top (right Side)				$ 88.79
16	W11755873		Mounting Bracket, Filter   (Replaces: W10348782)				$ 80.33
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
18	WP2004994		Lock, Adjustable Bushing   (Replaces: 2004994)			Immediately	$ 8.39
19	2300082		Bushing				$ 13.44
20	W11805224		Door Closer Spring   (Replaces: 2221242)		Appelez-nous	-
21	W11769878		Screw   (Replaces: 3400230)				$ 12.77
22	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 12.78
23	2215612		Cover, Air Duct		Appelez-nous	-
24	2221096		Bracket, Switch (left Side)				$ 97.86
24	W10741111		Bracket, Switch (right Side)   (Replaces: 2221097)				$ 67.37
25	2309471		Hinge, Bottom (right Side)				$ 129.90
25	2309472		Hinge, Bottom (left Side)		Appelez-nous	-
26	WP2302876		Adjustable Bushing   (Replaces: 2302876)			Immediately	$ 90.72
27	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.78
28	WP2209024B		Grille Skirt, Bottom   (Replaces: 2209024B)				$ 169.87
29	W11418227		Extension Arm,(right Side)   (Replaces: 2267192)				$ 119.09
29	W11416733		Extension Arm,(left Side)   (Replaces: 2267193)				$ 80.42
30	W11739149		Grille Base, Bottom   (Replaces: 2325184B)			Immediately	$ 209.08
31	W11177574		Screw   (Replaces: W10004850)				$ 14.84
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
33	WP1163283		Screw   (Replaces: 1163283)				$ 7.55
34	2006617		Bracket, Support Base (rear)		Appelez-nous	-
35	2215938		Cover, Switch				$ 94.78
36	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 54.20
37	W10167456		Wire Assembly, Light Switch		Appelez-nous	-
38	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 76.42
39	W11457217		Switch, Rocker Arm (left Side)   (Replaces: 1115373)				$ 40.09
39	W11384469		Switch, Rocker Arm (right Side)   (Replaces: 1118894)			Immediately	$ 39.09
