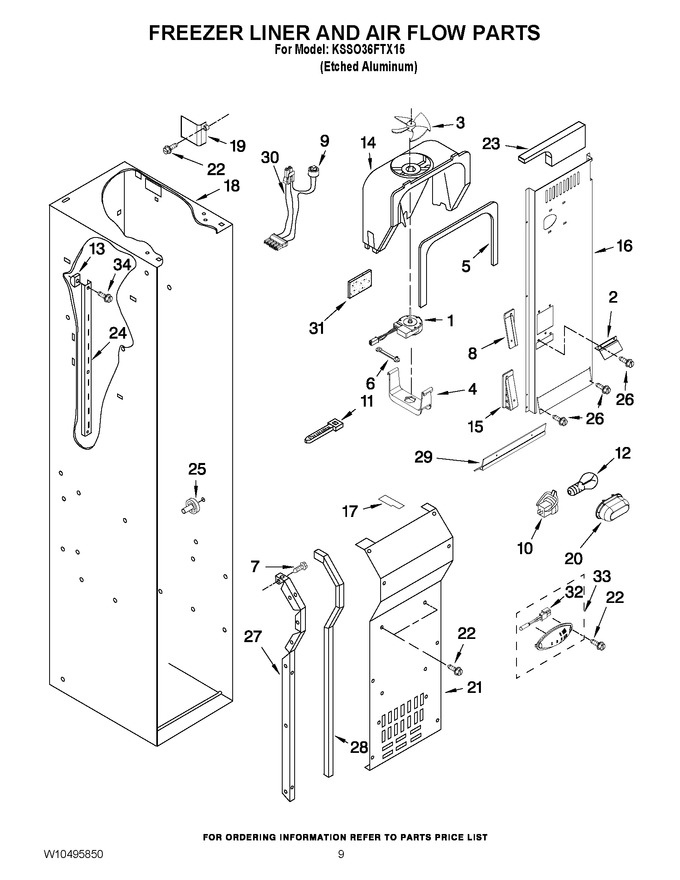

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259385 | Fan Motor |
|
$ 84.74 | |||||
| 2 | 2266801 | Deflector, Air |
|
- | |||||
| 3 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 4 | 8201663 | Retainer, Fan Motor (Replaces: 2223733) |
|
$ 159.27 | |||||
| 5 | WP2302817 | Gasket, Scroll Assembly (Replaces: 2302816) |
|
$ 101.04 | |||||
| 6 | W11669856 | Grommet (Replaces: W10449920) |
|
Immediately | $ 15.93 | ||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 8 | 2259464 | Wedge, Air Duct (right) |
|
$ 95.38 | |||||
| 9 | WPW10160570 | Defrost, Bi-metal (Replaces: W10160570) |
|
Immediately | $ 138.98 | ||||
| 10 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 8.80 | |||||
| 11 | WPW10339879 | Strap (Replaces: 2155774) |
|
$ 8.30 | |||||
| 12 | WPA3073101 | Light Bulb (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 13 | 2259397 | Screw Support |
|
- | |||||
| 14 | W11254898 | Scroll, Fan (Replaces: 2182119) |
|
Immediately | $ 339.43 | ||||
| 15 | 2259465 | Wedge, Air Duct (left) |
|
- | |||||
| 16 | 2307776 | Air Duct |
|
- | |||||
| 17 | 2209481 | Block, Fan Scroll (right) |
|
- | |||||
| 17 | 2209066 | Block, Fan Scroll (left) |
|
- | |||||
| 18 | N/P | Liner (not Serviced) |
|
- | |||||
| 19 | 2259025 | Cover, Air Outlet |
|
$ 92.36 | |||||
| 20 | 2307751 | Light Shield |
|
$ 17.27 | |||||
| 21 | W10427999 | Cover, Evaporator |
|
- | |||||
| 22 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 23 | 2309282 | Deflector, Air Duct |
|
- | |||||
| 24 | WP2259032 | Ladder, Shelf (Replaces: 2259032) |
|
$ 81.02 | |||||
| 25 | W11527119 | Shelf, Stud (Replaces: W10173127) |
|
- | |||||
| 26 | WPW10142283 | Screw (Replaces: W10142283) |
|
$ 10.33 | |||||
| 27 | 2221107 | Evaporator, Cover Rail (left) |
|
- | |||||
| 27 | 2259355 | Evaporator, Cover Rail (right) |
|
$ 126.54 | |||||
| 28 | 2220904 | Gasket Evaporator Cover |
|
$ 23.55 | |||||
| 29 | 2302849 | Support, Air Duct |
|
- | |||||
| 30 | W10139189 | Wire Assembly, Evaporator Fan |
|
$ 168.77 | |||||
| 31 | W10267707 | Insulation, Sound |
|
- | |||||
| 32 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 33 | WP2317844 | Thermistor Assy (Replaces: 2317844) |
|
$ 11.38 | |||||
| 34 | 2006475 | Screw |
|
- |
