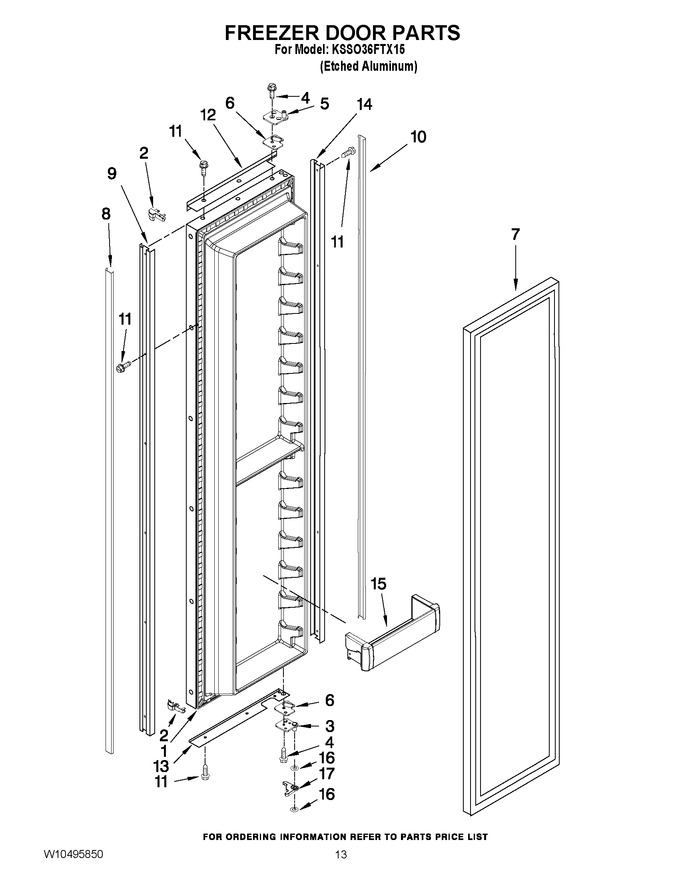

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10193485 | Freezer Door (includes Item 7) |
|
- | |||||
| 2 | 2207457 | Trim, Corner |
|
$ 57.12 | |||||
| 3 | 2252294 | Hinge Assembly, Bottom |
|
- | |||||
| 4 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 5 | 2252295 | Hinge Assembly, Top |
|
$ 51.53 | |||||
| 6 | W11673500 | Spacer-hinge (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 7 | W11624976 | Door Gasket, Magnetic (Replaces: 2222813) |
|
Immediately | $ 316.47 | ||||
| 8 | 2314003S | Cover, Trim (handle Side) |
|
$ 174.63 | |||||
| 9 | 2309497S | Trim-door (handle Side) |
|
$ 323.02 | |||||
| 10 | 2259448S | Cover Assy, Trim (hinge Side) |
|
$ 179.50 | |||||
| 11 | WP8281250 | Screw (Replaces: 8281250) |
|
$ 11.42 | |||||
| 12 | 2309488S | Trim, Door (top) |
|
- | |||||
| 13 | 2309494S | Trim, Door (bottom) |
|
- | |||||
| 14 | 2309498S | Trim-door (hinge Side) |
|
$ 324.38 | |||||
| 15 | W10323601 | Shelf, Door |
|
$ 92.19 | |||||
| 16 | WP2006346 | Washer (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 17 | 2006342 | Gap Cover, Bottom |
|
- |
