SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Shelf Parts


06 - Freezer Shelf Parts


07 - Freezer Liner And Air Flow Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Upper Unit Parts


11 - Lower Unit And Tube Parts


12 - Icemaker Parts

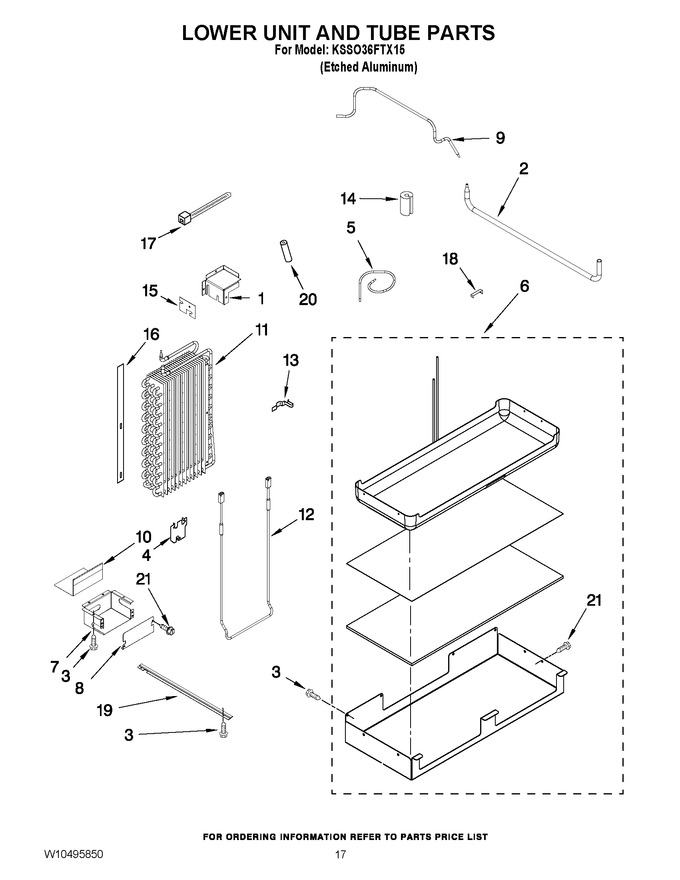

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160981		Bracket Assembly, Air Return		Appelez-nous	-
2	W10388653		Tube, Transition (drier/restrictor)			Immediately	$ 40.48
3	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
4	W10157752		Bracket, Heater Mounting		Appelez-nous	-
5	W10431124		Suction Tube				$ 32.73
6	W11623101		Drain Pan Assy.   (Replaces: W10281063)			Immediately	$ 394.02
7	W10316077		Cover, Wiring Bottom		Appelez-nous	-
8	W11756952		Cover, Box   (Replaces: W10321048)		Appelez-nous	-
9	W10412487		Tube, Discharge		Appelez-nous	-
10	W10321050		Wire Shield Cover		Appelez-nous	-
11	WPW10427991		Evaporator   (Replaces: W10427991)				$ 239.94
12	W10140160		Heater, Defrost		Appelez-nous	-
13	1113048		Clamp, Heater		Appelez-nous	-
14	W11715935		Grommet   (Replaces: W10413009)				$ 13.58
15	W10139908		Seal, Return Air				$ 13.06
16	W10432308		Gasket, Evaporator		Appelez-nous	-
17	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 8.30
18	W10169509		Clip, Retainer		Appelez-nous	-
19	2320554		Support, Drain Pan		Appelez-nous	-
20	2215648		Dampener				$ 13.21
21	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40

    View Diagram in Separate Window       Print Part List
