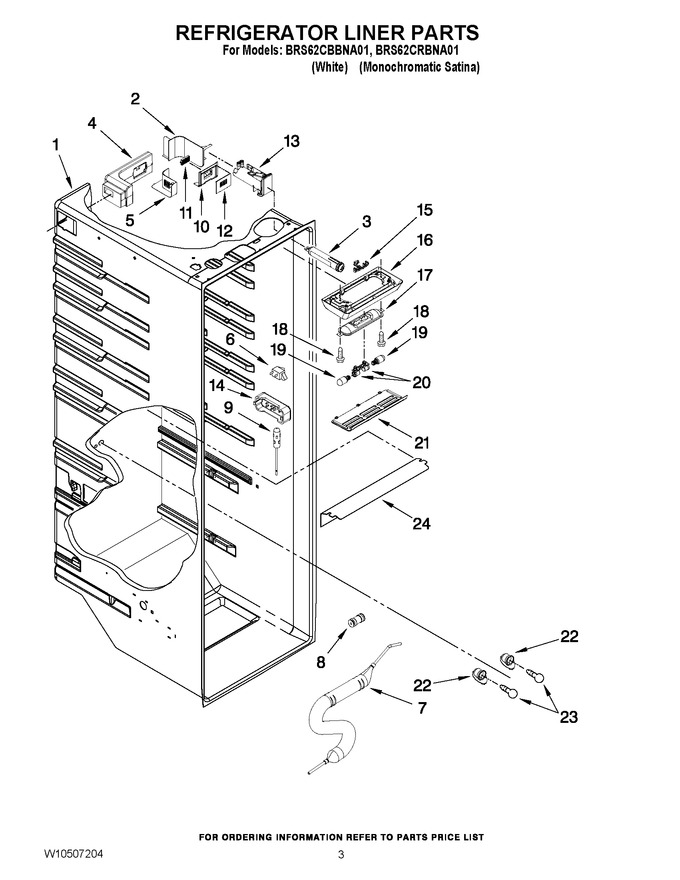

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WPW10260405		Cover, Water Filter   (Replaces: W10260405)				$ 118.77
3	W10391480		Water Filter		Appelez-nous	-
4	W11162594		Air Diffuser Assembly   (Replaces: W10355492)		Appelez-nous	-
5	W10355233		Air Diffuser Cover		Appelez-nous	-
6	W11384469		Switch Rocker Arm   (Replaces: C3680314)			Immediately	$ 39.09
7	W11802492		Reservoir   (Replaces: W10366790)				$ 88.91
8	WP2300868		Connector   (Replaces: W10271541)			Immediately	$ 29.05
9	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 33.60
10	W10342986		Air Filter Housing		Appelez-nous	-
11	W10349302		Air Filter		Appelez-nous	-
12	W10309405		Air Filter Cover		Appelez-nous	-
13	WPW10329943		Housing, Water Filter   (Replaces: W10329943)				$ 78.49
14	WPW10425252		Cover, Thermistor   (Replaces: W10425251)			Immediately	$ 88.38
15	W10279406		Wire Assy, Top Light		Appelez-nous	-
16	W10280178		Trim, Light		Appelez-nous	-
17	2223680		Shield, Heat				$ 93.52
18	WP3400906		Screw   (Replaces: W10141632)				$ 9.05
19	W11618980		Light Bulb   (Replaces: W10173035)				$ 22.42
20	W11661565		Socket, Light   (Replaces: W10130033)			Immediately	$ 35.82
21	W10280420		Lens, Top Light				$ 107.14
22	W11661565		Socket, Light   (Replaces: W10130033)			Immediately	$ 35.82
23	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
24	WPW10269099		Lens, Light   (Replaces: W10269099)				$ 128.01
