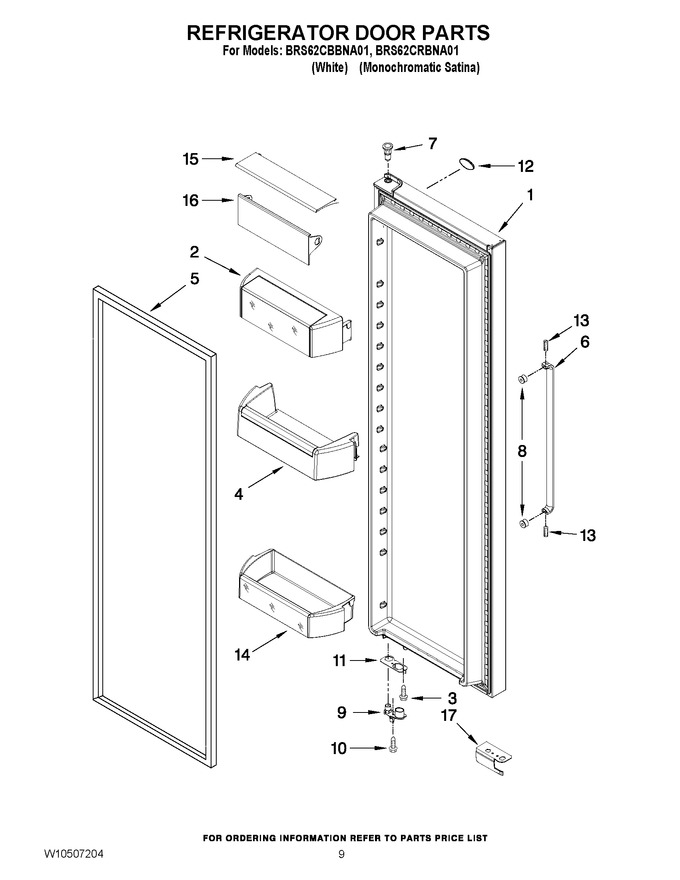

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10287412 | Refrigerator Door (includes Item 5) (mono Satina) (Replaces: W10287412) |
|
- | |||||
| 1 | LW10287400 | Refrigerator Door (includes Item 5) (white) (Replaces: W10287400) |
|
- | |||||
| 2 | WPW10324760 | Door Compartment Assembly (Replaces: W10316889) |
|
$ 85.60 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 4 | WPW10296855 | Door Bin, Shallow (Replaces: W10309877) |
|
$ 79.15 | |||||
| 5 | W10355582 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10249916) |
|
$ 341.26 | |||||
| 5 | WPW10247884 | Door Gasket, Magnetic (mist Beige) (Replaces: W10247884) |
|
$ 322.97 | |||||
| 6 | W10851029 | Handle (Replaces: W10277354) |
|
- | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 8 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 9 | WPW10248011 | Door Closer, Upper Cam (white) (Replaces: W10248011) |
|
$ 12.93 | |||||
| 9 | WPW10257203 | Door Closer, Upper Cam (apollo Grey) (Replaces: W10257203) |
|
$ 12.96 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10367462) |
|
$ 80.24 | |||||
| 12 | W10332630 | Nameplate |
|
- | |||||
| 13 | W11366418 | Set Screw (Replaces: W10223573) |
|
Immediately | $ 15.79 | ||||
| 14 | WPW10335220 | Door Bin, Gallon (Replaces: W10335220) |
|
$ 93.59 | |||||
| 15 | WPW10316883 | Lid, Door Compartment (Replaces: W10316883) |
|
$ 67.67 | |||||
| 16 | WPW10316885 | Window, Door Compartment (Replaces: W10316885) |
|
$ 75.42 | |||||
| 17 | W11661847 | Cover, Door Stop (midnight Grey) (Replaces: W10257218) |
|
Immediately | $ 31.71 | ||||
| 17 | W10789144 | Cover, Door Stop (white) (Replaces: W10248013) |
|
$ 19.38 |
