SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts

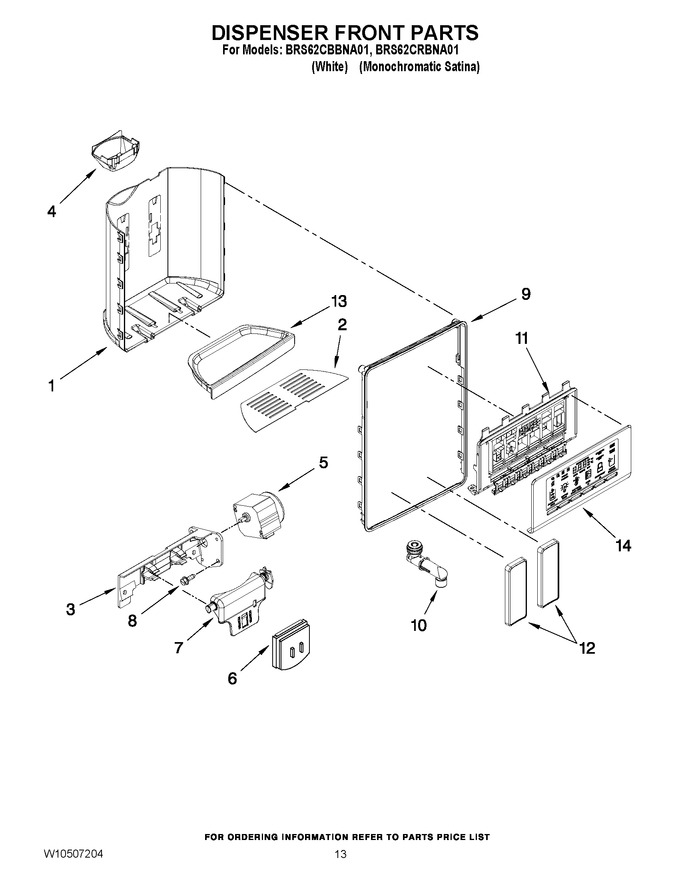

08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10276220		Grate, Drip Tray (white)   (Replaces: W10276220)				$ 63.80
2	WPW10276223		Grate, Drip Tray (midnight Grey)   (Replaces: W10276223)				$ 57.37
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Chute, Door   (Replaces: W10339578)				$ 23.94
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
6	WPW10493172		Ice Door Assy Includes Items 3, 5, 7, & 8)   (Replaces: W10353567)				$ 239.86
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10276227		Trim Ring (midnight Grey)				$ 62.97
9	WPW10276186		Trim Ring (white)   (Replaces: W10276186)				$ 62.93
10	WP2305235		Spigot   (Replaces: 2305235)				$ 147.07
11	WPW10276238		Electronic Control Assy   (Replaces: W10276238)				$ 258.85
12	WPW10370593		Pad, Ice & Water (white)   (Replaces: W10290361)				$ 311.61
12	WPW10370594		Pad, Ice & Water (midnight Grey)   (Replaces: W10370594)				$ 310.61
13	W10276193		Tray, Housing (white)		Appelez-nous	-
13	W11246841		Tray, Housing (midnight Grey)   (Replaces: W10276224)				$ 60.29
14	W10276240		Front Cover (silver Mirror)		Appelez-nous	-
14	W10276256		Front Cover (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
