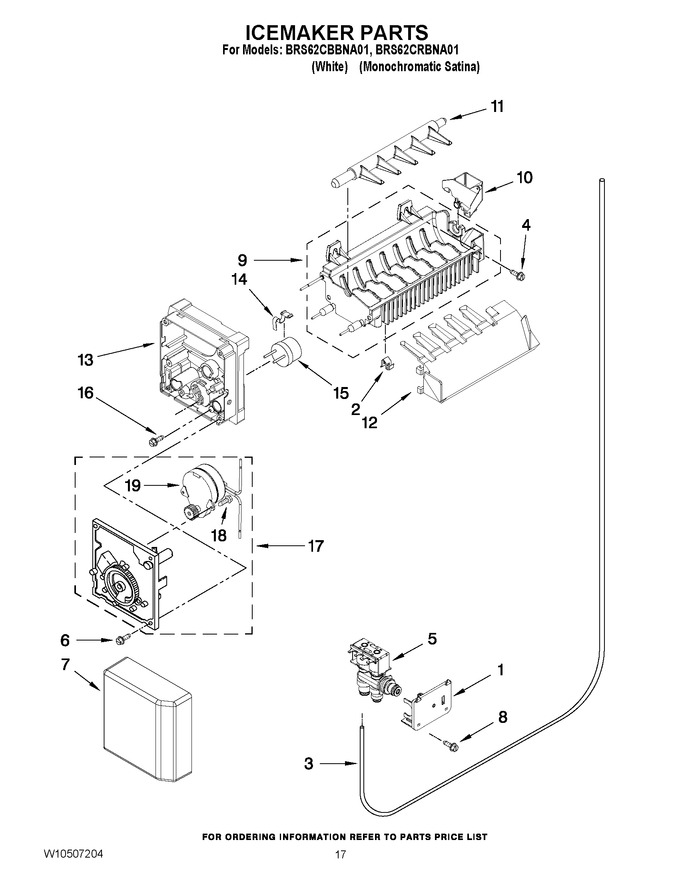

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10847867		Bracket, Valve   (Replaces: W10237915)				$ 80.75
2	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
3	W10823511		Water Tube   (Replaces: W10175644)			Immediately	$ 32.41
4	WP489478		Screw   (Replaces: W10001260)				$ 8.18
5	WPW10258563		Filter Valve Asm   (Replaces: W10258563)				$ 225.78
6	W10001240		Screw				$ 9.22
7	W10289697		Cover		Appelez-nous	-
8	WPW10141625		Screw (2)   (Replaces: W10141625)				$ 22.22
9	W11051460		Mold & Heater Assembly (also Order 542638   (Replaces: W10136599)		Appelez-nous	-
10	W10122561		Cup, Water Fill				$ 29.16
11	W10318914		Ejector				$ 38.08
12	WPW10122563		Ice Striper   (Replaces: W10122563)				$ 99.42
13	WP2195914		Support   (Replaces: 2195914)				$ 109.80
14	WP2315522		Retainer Thermostat   (Replaces: 2315522)				$ 11.60
15	628532		Thermostat (also Order 542369 Cement Alumilastic)				$ 109.07
16	W10001240		Screw				$ 9.22
17	W10239565		Module Assembly		Appelez-nous	-
18	W11096900		Screw   (Replaces: W10001220)		Appelez-nous	-
19	N/P		Motor (not Serviced, Order No.17)		Appelez-nous	-
100	W10122558		Complete Icemaker Assembly		Appelez-nous	-
