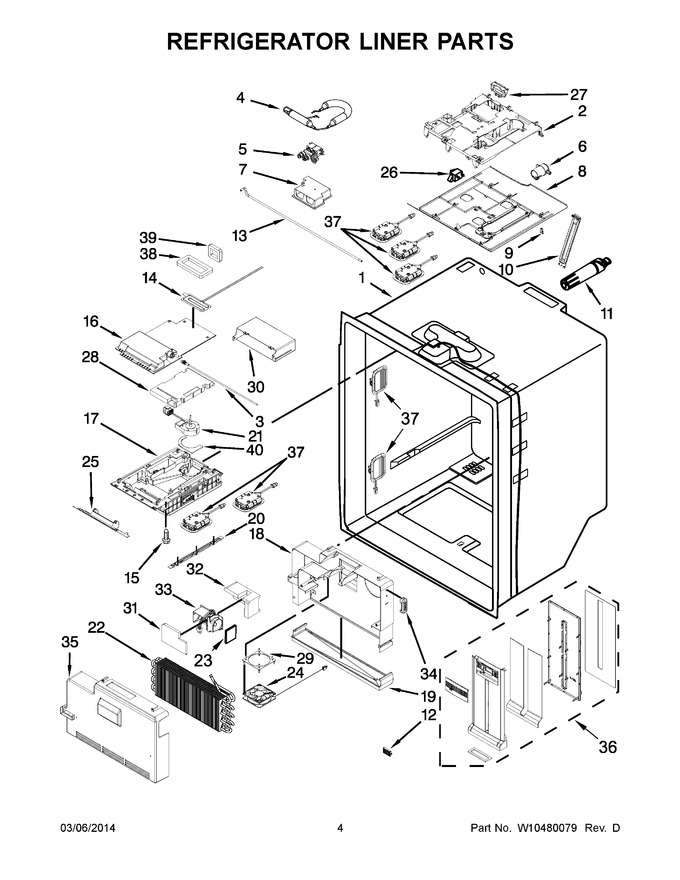

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
N/P |
|
Liner (not A Serviceable Part) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W10842950 |
|
Housing, Water System (Replaces: W10657942) |
|
|
|
$ 50.83 |
|
|
| 2 |
W10490843 |
|
Housing, Water System |
|
|
|
$ 125.46 |
|
|
| 3 |
W10277929 |
|
Tube, Fill |
|
Appelez-nous
|
- |
|
|
|
| 3 |
W11686799 |
|
Tube, Fill (Replaces: W10482107) |
|
|
Immediately |
$ 118.24 |
|
|
| 4 |
W11168758 |
 |
Reservoir, Water (also Order Wire Tie Part 8567668 Qty.5) (Replaces: W10430995) |
|
|
Immediately |
$ 115.54 |
|
|
| 4 |
W11168758 |
|
Reservoir, Water (also Order Wire Tie Part 8567668 Qty.5) (Replaces: W10394084) |
|
|
Immediately |
$ 115.54 |
|
|
| 5 |
WPW10341329 |
 |
Valve, Dual Water (Replaces: W10341329) |
|
|
Immediately |
$ 115.24 |
|
|
| 6 |
W11194438 |
 |
Housing, Water Filter (Replaces: W10238156) |
|
|
Immediately |
$ 220.12 |
|
|
| 7 |
W10811115 |
|
Enclosure, Valve (Replaces: W10279854) |
|
|
|
$ 107.85 |
|
|
| 8 |
W10488685 |
|
Cover, Water |
|
|
|
$ 113.41 |
|
|
| 9 |
WP2223877 |
 |
Latch, Push (Replaces: 2223877) |
|
|
|
$ 120.84 |
|
|
| 10 |
WPW10277949 |
 |
Door, Filter Access (Replaces: W10277949) |
|
|
|
$ 100.91 |
|
|
| 11 |
W10609378 |
|
Filter, Water |
|
Appelez-nous
|
- |
|
|
|
| 11 |
W10238154 |
|
Filter, Water |
|
Appelez-nous
|
- |
|
|
|
| 12 |
W10311524 |
 |
Filter, Air (Replaces: W10315189) |
|
|
Immediately |
$ 14.34 |
|
|
| 13 |
W10476833 |
|
Waterline, Valve To Hinge |
|
|
|
$ 54.92 |
|
|
| 13 |
W10515793 |
|
Waterline, Valve To Hinge |
|
Appelez-nous
|
- |
|
|
|
| 14 |
WPW10554299 |
 |
Heater, Fill Tube (Replaces: W10554299) |
|
|
Immediately |
$ 101.05 |
|
|
| 14 |
WPW10490316 |
 |
Heater, Fill Tube (Replaces: W10490316) |
|
|
|
$ 136.17 |
|
|
| 15 |
WP67006908 |
 |
Screw (Replaces: 12990518) |
|
|
Immediately |
$ 8.78 |
|
|
| 16 |
WPW10598013 |
 |
Cover, Icebox (Replaces: W10598013) |
|
|
Immediately |
$ 157.86 |
|
|
| 16 |
WPW10281012 |
|
Cover, Icebox (Replaces: W10281012) |
|
|
|
$ 155.21 |
|
|
| 17 |
W10492817 |
|
Assembly, Icebox (foamed) |
|
|
|
$ 201.80 |
|
|
| 18 |
WPW10469927 |
|
Enclosure, Evaporator (Replaces: W10469927) |
|
|
|
$ 259.88 |
|
|
| 19 |
W11457241 |
 |
Pan, Drain (Replaces: W10388933) |
|
|
Immediately |
$ 78.60 |
|
|
| 19 |
W11457241 |
|
Pan, Drain (Replaces: W10537710) |
|
|
Immediately |
$ 78.60 |
|
|
| 20 |
W10505516 |
|
Trim, Icebox |
|
|
|
$ 35.20 |
|
|
| 21 |
W10846539 |
 |
Assembly, Blower (Replaces: W10460280) |
|
|
Immediately |
$ 181.73 |
|
|
| 22 |
N/P |
|
Evaporator Assembly - For More Information On This Service Part, Please Contact 1-800-832-7174 |
|
Appelez-nous
|
- |
|
|
|
| 22 |
W11492867 |
 |
Assembly, Evaporator (Replaces: W10503454) |
|
|
Immediately |
$ 266.93 |
|
|
| 23 |
W11683241 |
|
Assembly, Led Light Module (Replaces: W10412708) |
|
|
Immediately |
$ 271.97 |
|
|
| 23 |
W10470981 |
|
Gasket, Damper |
|
|
|
$ 26.47 |
|
|
| 24 |
W10633627 |
 |
Motor, Fan (also Order Fan Support No.w10389152) (Replaces: W10395278) |
|
|
Immediately |
$ 169.62 |
|
|
| 25 |
W11637688 |
 |
Assembly, Fascia (Replaces: W10553630) |
|
|
Immediately |
$ 113.56 |
|
|
| 25 |
W11637688 |
|
Fascia Assembly (Replaces: W10488463) |
|
|
Immediately |
$ 113.56 |
|
|
| 26 |
W11384469 |
 |
Switch, Light (Replaces: C3680310V) |
|
|
Immediately |
$ 39.09 |
|
|
| 26 |
W11384469 |
|
Switch, Light (Replaces: C3680314) |
|
|
Immediately |
$ 39.09 |
|
|
| 27 |
W10434481 |
|
Bracket, Reservoir |
|
|
|
$ 49.86 |
|
|
| 28 |
WPW10280983 |
|
Insulation (Replaces: W10280983) |
|
|
Immediately |
$ 94.25 |
|
|
| 29 |
WPW10389152 |
 |
Support, Fan (Replaces: W10389152) |
|
|
Immediately |
$ 22.39 |
|
|
| 30 |
WPW10635022 |
 |
Adapter, Icebox (Replaces: W10635022) |
|
|
Immediately |
$ 107.57 |
|
|
| 30 |
W10612142 |
 |
Adapter, Icebox Incls. Insulation (Replaces: W10503525) |
|
|
Immediately |
$ 220.27 |
|
|
| 31 |
W10389154 |
|
Retainer, Damper |
|
|
|
$ 26.99 |
|
|
| 32 |
W10389149 |
|
Support, Damper |
|
|
|
$ 20.11 |
|
|
| 33 |
WPW10248595 |
 |
Damper, Electronic Control (Replaces: W10248595) |
|
|
Immediately |
$ 132.64 |
|
|
| 34 |
W11238397 |
|
Cover, Thermistor (Replaces: W10438957) |
|
|
Immediately |
$ 23.33 |
|
|
| 35 |
WPW10501260 |
 |
Cover, Evaporator (Replaces: W10501260) |
|
|
|
$ 248.36 |
|
|
| 36 |
W10435764 |
|
Cover, Switch |
|
Appelez-nous
|
- |
|
|
|
| 36 |
W10624930 |
|
Assembly, Air Tower |
|
Appelez-nous
|
- |
|
|
|
| 37 |
W11683241 |
|
Light, Led Assembly (Replaces: W10279030) |
|
|
Immediately |
$ 271.97 |
|
|
| 37 |
W11683241 |
|
Assembly, Led Light Module (Replaces: W10637153) |
|
|
Immediately |
$ 271.97 |
|
|
| 38 |
WPW10280988 |
 |
Gasket, Rear Supply (Replaces: W10280988) |
|
|
Immediately |
$ 8.17 |
|
|
| 39 |
WPW10320706 |
 |
Gasket, Rear Return (Replaces: W10320706) |
|
|
Immediately |
$ 27.86 |
|
|
| 40 |
WPW10392172 |
 |
Gasket, Fan (Replaces: W10392172) |
|
|
Immediately |
$ 27.77 |
|
|
| 41 |
W10503487 |
|
Assembly, Air Tower |
|
Appelez-nous
|
- |
|
|
|
| 42 |
W10470981 |
|
Gasket, Damper |
|
|
|
$ 26.47 |
|
|
| NI |
N/P |
|
Following Parts Not .illustrated |
|
Appelez-nous
|
- |
|
|
|
| NI |
W10277801 |
|
Harness, Refrigerator Lights |
|
|
|
$ 83.54 |
|
|
| NI |
W10475679 |
|
Harness, Dual Valve |
|
Appelez-nous
|
- |
|
|
|
| NI |
W10859326 |
|
Harness, Dual Valve (Replaces: W10570599) |
|
|
|
$ 121.19 |
|
|
| NI |
WPW10277799 |
 |
Harness, Evaporator Wire (includes Thermistors) (Replaces: W10277799) |
|
|
Immediately |
$ 64.57 |
|
|
View Diagram in Separate Window
Print Part List
