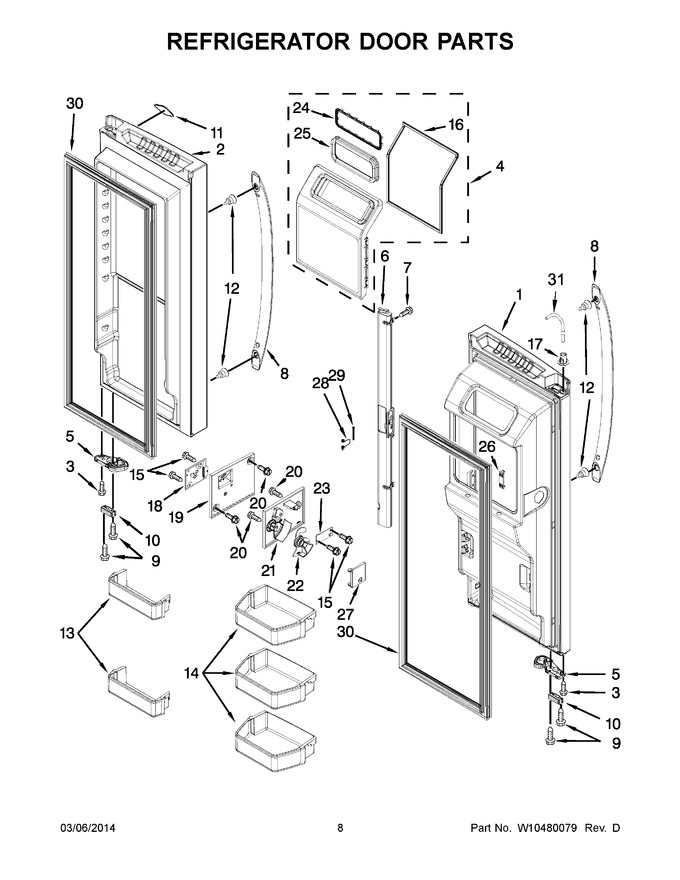

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
LW10417771 |
|
Door, Left (white) (Replaces: W10417771) |
|
|
|
$ 1,487.73 |
|
|
| 1 |
LW10417773 |
|
Door, Left (stainless) (Replaces: W10417773) |
|
|
|
$ 1,480.10 |
|
|
| 1 |
LW10417772 |
|
Door, Left (black) (Replaces: W10417772) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
LW10341282 |
|
Door, Right (black) (Replaces: W10341282) |
|
|
|
$ 1,142.49 |
|
|
| 2 |
W10340316 |
|
Door, Right (white) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
LW10341284 |
|
Door, Right (stainless) (Replaces: W10341284) |
|
|
|
$ 1,164.94 |
|
|
| 3 |
WPW10464016 |
|
Screw (Replaces: W10464016) |
|
|
|
$ 12.32 |
|
|
| 4 |
WPW10549589 |
 |
Door, Ice (Replaces: W10549589) |
|
|
|
$ 354.55 |
|
|
| 5 |
WPW10372267 |
 |
Latch, Door (right Hand) (Replaces: W10372267) |
|
|
|
$ 13.31 |
|
|
| 5 |
W10857643 |
 |
Latch, Door (left Hand) (Replaces: W10355634) |
|
|
|
$ 83.58 |
|
|
| 6 |
W10846151 |
|
Mullion, Door (white) (Replaces: W10407252) |
|
|
|
$ 133.95 |
|
|
| 6 |
W10698196 |
|
Mullion, Door (black) (Replaces: W10407253) |
|
|
|
$ 138.15 |
|
|
| 6 |
W10806457 |
 |
Mullion, Door (grey) (Replaces: W10654762) |
|
|
Immediately |
$ 270.14 |
|
|
| 7 |
W11311945 |
 |
Screw (Replaces: 12990204) |
|
|
|
$ 14.02 |
|
|
| 8 |
W10899551 |
 |
Handle, Door (brushed Aluminum) (Replaces: W10557410) |
|
|
Immediately |
$ 179.83 |
|
|
| 8 |
W10848410 |
|
Handle, Door (white) (Replaces: W10357236) |
|
|
|
$ 194.02 |
|
|
| 8 |
W10398788 |
|
Handle, Door (black) |
|
Appelez-nous
|
- |
|
|
|
| 9 |
WP98165 |
 |
Screw (Replaces: 12990504) |
|
|
|
$ 8.00 |
|
|
| 10 |
W11687672 |
|
Bumper, Door (white) (Replaces: W10407175) |
|
|
|
$ 14.22 |
|
|
| 10 |
W11573367 |
|
Bumper, Door (grey) (Replaces: W10407188) |
|
|
Immediately |
$ 22.24 |
|
|
| 10 |
W10407187 |
|
Bumper, Door (black) |
|
|
|
$ 46.04 |
|
|
| 11 |
WPW10393265 |
 |
Nameplate (grey) (Replaces: W10393265) |
|
|
Immediately |
$ 73.15 |
|
|
| 11 |
WPW10391355 |
 |
Nameplate (white) (Replaces: W10391355) |
|
|
|
$ 72.05 |
|
|
| 12 |
WPW10661886 |
 |
Screw (Replaces: W10460893) |
|
|
Immediately |
$ 11.85 |
|
|
| 13 |
W10539117 |
|
Trivet, 2 Liter |
|
|
|
$ 32.19 |
|
|
| 14 |
W10607728 |
|
Bucket, Gallon |
|
Appelez-nous
|
- |
|
|
|
| 15 |
2006254 |
|
Screw (Replaces: 489214) |
|
|
|
$ 13.13 |
|
|
| 16 |
W11624997 |
 |
Gasket, Ice Door (Replaces: W10347085) |
|
|
|
$ 66.10 |
|
|
| 17 |
W10562834 |
|
Clip-tube (Replaces: W10245516) |
|
|
|
$ 14.91 |
|
|
| 18 |
W11813704 |
|
Board, Receiver Circuit (Replaces: W10518658) |
|
|
Immediately |
$ 313.30 |
|
|
| 19 |
W11763407 |
|
Cover, Receiver (Replaces: W10258510) |
|
|
|
$ 42.38 |
|
|
| 20 |
WP3400065 |
 |
Screw (stainless) (Replaces: 3400065) |
|
|
Immediately |
$ 7.74 |
|
|
| 21 |
W10258502 |
|
Cover, Emitter |
|
|
|
$ 85.47 |
|
|
| 22 |
W10258540 |
|
Slide, Icemaker Shut Off |
|
|
|
$ 10.62 |
|
|
| 23 |
W10870822 |
 |
Board, Emitter Circuit (Replaces: W10518659) |
|
|
Immediately |
$ 222.54 |
|
|
| 24 |
WPW10400825 |
 |
Retainer,ice Chute (Replaces: W10400825) |
|
|
|
$ 30.78 |
|
|
| 25 |
WPW10347087 |
 |
Gasket, Ice Chute (Replaces: W10347087) |
|
|
|
$ 46.64 |
|
|
| 26 |
W11684620 |
|
Vent, Thermistor (Replaces: W10646855) |
|
|
Immediately |
$ 22.06 |
|
|
| 27 |
WPW10258520 |
|
Door, Emitter (Replaces: W10258520) |
|
|
|
$ 75.86 |
|
|
| 28 |
WP2198635 |
 |
Spring, Door (Replaces: 2198635) |
|
|
|
$ 87.08 |
|
|
| 29 |
WP2198634 |
 |
Pin, Door (Replaces: 2198634) |
|
|
|
$ 17.76 |
|
|
| 30 |
W10407212 |
 |
Gasket, Door (grey) (Replaces: W10407146) |
|
|
Immediately |
$ 254.40 |
|
|
| 30 |
W10861004 |
 |
Gasket, Door (black) (Replaces: W10407145) |
|
|
|
$ 315.40 |
|
|
| 30 |
W11678967 |
|
Gasket, Door (white) (Replaces: W10249089) |
|
|
|
$ 229.41 |
|
|
| 31 |
WPW10515777 |
 |
Tube, Water (Replaces: W10515777) |
|
|
|
$ 111.67 |
|
|
