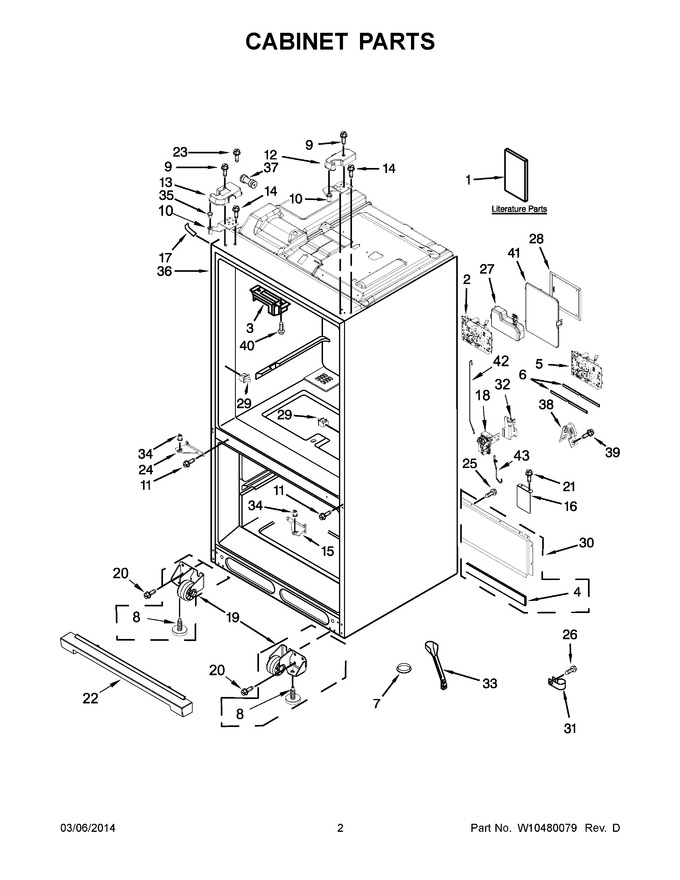

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10568022 |
|
Tech Sheet |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10480135 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10417000 |
|
Use And Care Guide |
|
Appelez-nous
|
- |
|
|
|
| 2 |
WPW10453401 |
 |
Supply, Power (Replaces: W10453401) |
|
|
Immediately |
$ 247.11 |
|
|
| 3 |
WPW10344432 |
|
Block, Pivot (Replaces: W10344432) |
|
|
Immediately |
$ 19.16 |
|
|
| 4 |
W10505487 |
|
Gasket |
|
|
|
$ 28.68 |
|
|
| 5 |
W10581605 |
|
Board, Control |
|
|
|
$ 366.07 |
|
|
| 6 |
W10415341 |
|
Gasket, Hv Box |
|
|
|
$ 37.00 |
|
|
| 7 |
A3076901 |
|
Plug, Hole (black) |
|
|
|
$ 5.70 |
|
|
| 8 |
WPW10141622 |
 |
Brake, Roller (Replaces: W10141622) |
|
|
Immediately |
$ 8.24 |
|
|
| 9 |
WP98165 |
 |
Screw (Replaces: 12990521) |
|
|
|
$ 8.57 |
|
|
| 10 |
W11592404 |
|
Hinge, Top (right Hand) (Replaces: W10248409) |
|
|
|
$ 25.90 |
|
|
| 10 |
W11592405 |
|
Hinge, Top (left Hand) (Replaces: W10248410) |
|
|
|
$ 32.31 |
|
|
| 11 |
W10403208 |
|
Screw (white) |
|
|
|
$ 14.04 |
|
|
| 11 |
W11573362 |
|
Screw (grey) (Replaces: W10403212) |
|
|
|
$ 14.72 |
|
|
| 11 |
W10403211 |
|
Screw (black) |
|
|
|
$ 78.33 |
|
|
| 12 |
W10248562 |
|
Cover, Right Hinge (white) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
W10407157 |
|
Cover, Right Hinge (black) |
|
|
|
$ 23.06 |
|
|
| 12 |
WPW10407158 |
|
Cover, Right Hinge (grey) (Replaces: W10407158) |
|
|
|
$ 22.98 |
|
|
| 13 |
WPW10471618 |
|
Cover, Left Hinge (grey) (Replaces: W10471618) |
|
|
|
$ 25.27 |
|
|
| 13 |
W10471615 |
|
Cover, Left Hinge (white) |
|
|
|
$ 20.70 |
|
|
| 13 |
W10471617 |
|
Cover, Left Hinge (black)) |
|
|
|
$ 24.13 |
|
|
| 14 |
WPW10308751 |
 |
Screw, Black (Replaces: W10308751) |
|
|
|
$ 8.84 |
|
|
| 15 |
W11240748 |
|
Hinge, Center (right) (grey) (Replaces: W10248703) |
|
|
|
$ 78.71 |
|
|
| 15 |
W10407275 |
|
Hinge, Center (right) (black) (Replaces: W10248702) |
|
|
|
$ 79.94 |
|
|
| 15 |
W10248433 |
 |
Hinge, Center (right) (white) |
|
|
|
$ 85.33 |
|
|
| 16 |
W10336736 |
|
Cover, Roller |
|
Appelez-nous
|
- |
|
|
|
| 17 |
12587703W |
 |
Cover, Corner (white) |
|
|
|
$ 22.90 |
|
|
| 17 |
WP12587703AP |
|
Cover, Corner (grey) (Replaces: 12587703AP) |
|
|
|
$ 8.07 |
|
|
| 17 |
67003485 |
|
Cover, Corner (black) (Replaces: 12587703B) |
|
|
Immediately |
$ 22.14 |
|
|
| 18 |
WPW10455331 |
 |
Valve, Smart (Replaces: W10455331) |
|
|
|
$ 310.93 |
|
|
| 19 |
W11820445 |
|
Assembly, Roller (right Hand) (Replaces: W10515762) |
|
|
Immediately |
$ 37.35 |
|
|
| 19 |
W11820444 |
|
Assembly, Roller (left Hand) (Replaces: W10515763) |
|
|
Immediately |
$ 37.35 |
|
|
| 20 |
67006564 |
 |
Screw (Replaces: 12991302) |
|
|
Immediately |
$ 8.15 |
|
|
| 21 |
WP33001882 |
 |
Screw (Replaces: 12990701) |
|
|
|
$ 83.71 |
|
|
| 22 |
WPW10637668 |
|
Grille, Toe (white) (Replaces: W10485160) |
|
|
|
$ 138.98 |
|
|
| 22 |
WPW10637671 |
 |
Grille, Toe (grey) (Replaces: W10637671) |
|
|
Immediately |
$ 143.46 |
|
|
| 22 |
WPW10637669 |
|
Grille, Toe (black) (Replaces: W10485161) |
|
|
|
$ 134.32 |
|
|
| 23 |
W11214483 |
 |
Screw (Replaces: 12992601) |
|
|
|
$ 14.72 |
|
|
| 24 |
W10407279 |
|
Hinge, Center (left) (black) (Replaces: W10248705) |
|
|
|
$ 82.59 |
|
|
| 24 |
W10878115 |
|
Hinge, Center (left) (grey) (Replaces: W10248706) |
|
|
|
$ 76.85 |
|
|
| 24 |
W10248434 |
|
Hinge, Center (left) (white) |
|
|
|
$ 84.85 |
|
|
| 25 |
WPW10141645 |
|
Screw (Replaces: W10141645) |
|
|
|
$ 8.05 |
|
|
| 26 |
67006425 |
 |
Screw (Replaces: 12990511) |
|
|
Immediately |
$ 7.30 |
|
|
| 27 |
WPW10306786 |
 |
Supply, Power Led (Replaces: W10421948) |
|
|
Immediately |
$ 319.36 |
|
|
| 28 |
WPW10485658 |
|
Cover, Control Box (Replaces: W10485658) |
|
|
|
$ 83.03 |
|
|
| 29 |
W11396033 |
 |
Switch, Light (Replaces: 12466105) |
|
|
Immediately |
$ 37.30 |
|
|
| 30 |
W11482027 |
|
Cover, Unit (Replaces: W10523222) |
|
|
Immediately |
$ 121.36 |
|
|
| 31 |
W11456069 |
|
Clamp-tube (Replaces: M0108107) |
|
|
Immediately |
$ 22.40 |
|
|
| 32 |
W10455330 |
|
Cover, Valve |
|
Appelez-nous
|
- |
|
|
|
| 33 |
W10491298 |
|
Tube, Drain |
|
Appelez-nous
|
- |
|
|
|
| 34 |
WPW10505294 |
 |
Coupler, Door (Replaces: W10505294) |
|
|
|
$ 11.90 |
|
|
| 35 |
W10212137 |
|
Retainer, Door |
|
|
|
$ 13.69 |
|
|
| 36 |
N/P |
|
Cabinet (not A Servicable Part) |
|
Appelez-nous
|
- |
|
|
|
| 37 |
WP2300868 |
 |
Connector, Union (Replaces: W10271541) |
|
|
Immediately |
$ 29.05 |
|
|
| 38 |
549193 |
|
Clamp, Power Cord |
|
|
|
$ 14.06 |
|
|
| 39 |
WPW10141645 |
|
Screw (Replaces: W10141645) |
|
|
|
$ 8.05 |
|
|
| 40 |
W10854958 |
|
Screw (Replaces: 12990302) |
|
|
|
$ 7.90 |
|
|
| 41 |
W10277839 |
|
Lid, Hv |
|
|
|
$ 73.91 |
|
|
| 42 |
W10455337 |
|
Tube, Water |
|
Appelez-nous
|
- |
|
|
|
| 43 |
W10455336 |
 |
Waterline, Customer Connection |
|
|
|
$ 113.89 |
|
|
