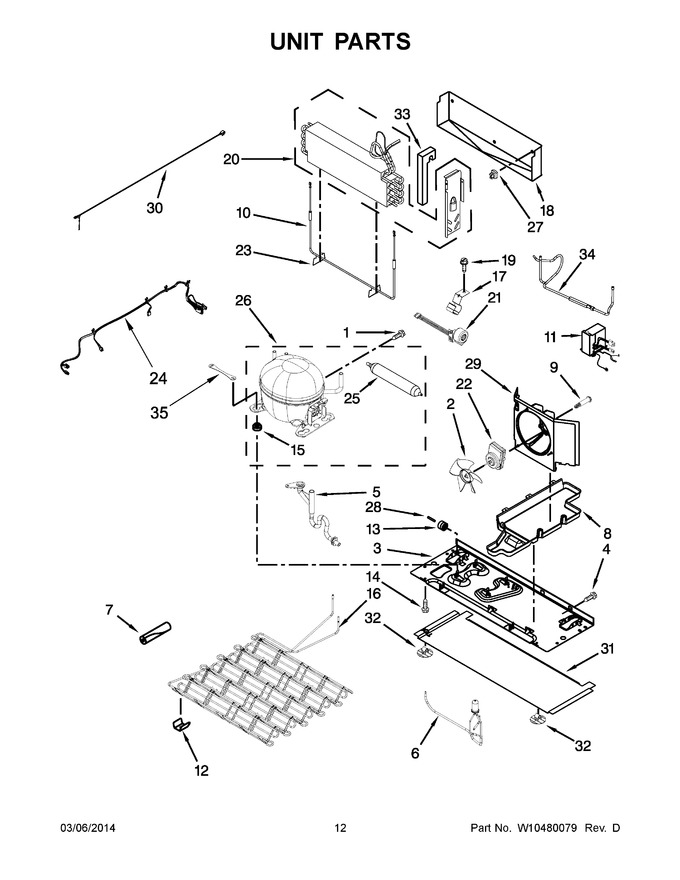

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WPW10141625 |
|
Screw (Replaces: W10141625) |
|
|
|
$ 22.22 |
|
|
| 2 |
W10156818 |
 |
Blade, Fan (Replaces: 12825802) |
|
|
Immediately |
$ 62.11 |
|
|
| 3 |
W10570074 |
|
Baseplate |
|
|
|
$ 148.34 |
|
|
| 4 |
67006425 |
 |
Screw (Replaces: 12990511) |
|
|
Immediately |
$ 7.30 |
|
|
| 5 |
W11745092 |
|
Extension, Drain (Replaces: W10547687) |
|
|
|
$ 81.62 |
|
|
| 6 |
W11580434 |
 |
Assembly, Valve Body (Replaces: W10391081) |
|
|
Immediately |
$ 107.74 |
|
|
| 7 |
W11751592 |
|
Sleeve (Replaces: W10303521) |
|
|
Immediately |
$ 21.32 |
|
|
| 8 |
W10703218 |
 |
Tray, Evaporator (Replaces: W10238584) |
|
|
|
$ 202.29 |
|
|
| 9 |
W10829281 |
|
Screw (Replaces: W10622701) |
|
|
|
$ 13.28 |
|
|
| 10 |
WP12729128 |
 |
Heater, Defrost (Replaces: 12729128) |
|
|
Immediately |
$ 97.71 |
|
|
| 11 |
W10893917 |
 |
Assembly, Inverter Box (Replaces: W10186719) |
|
|
Immediately |
$ 470.79 |
|
|
| 12 |
W10683556 |
 |
Clip, Condenser (Replaces: W10248621) |
|
|
|
$ 19.38 |
|
|
| 13 |
12477102 |
|
Roller |
|
|
Immediately |
$ 7.38 |
|
|
| 14 |
12992101 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 15 |
WPW10169124 |
|
Grommet, Compressor (Replaces: 10835903SP) |
|
|
Immediately |
$ 7.55 |
|
|
| 16 |
W11760073 |
|
Assembly, Condenser (Replaces: W10627646) |
|
|
|
$ 168.80 |
|
|
| 17 |
W10391376 |
|
Bracket, Valve |
|
|
|
$ 35.03 |
|
|
| 18 |
W11408656 |
|
Tray, Drip (Replaces: W10342573) |
|
|
|
$ 45.58 |
|
|
| 19 |
WPW10141645 |
|
Screw (Replaces: W10141645) |
|
|
|
$ 8.05 |
|
|
| 20 |
WPW10608485 |
 |
Evaporator (Replaces: W10248589) |
|
|
Immediately |
$ 372.67 |
|
|
| 21 |
WPW10364560 |
 |
Coil, 3 Way Valve (Replaces: W10364560) |
|
|
|
$ 225.88 |
|
|
| 22 |
WP2188874 |
 |
Motor, Condenser (Replaces: 2188874) |
|
|
Immediately |
$ 113.96 |
|
|
| 23 |
W11673433 |
|
Clip, Heater (Replaces: 10428101) |
|
|
|
$ 148.18 |
|
|
| 24 |
W10494224 |
 |
Harness, Unit |
|
|
|
$ 181.55 |
|
|
| 25 |
WPW10143759 |
 |
Drier (Replaces: W10286069) |
|
|
Immediately |
$ 30.78 |
|
|
| 26 |
W10276644 |
 |
Compressor (Replaces: W10168473) |
|
|
Immediately |
$ 761.58 |
|
|
| 27 |
W11544659 |
|
Screw (Replaces: W10142294) |
|
|
|
$ 14.35 |
|
|
| 28 |
67006434 |
 |
Axle, Roller (Replaces: 12477202) |
|
|
Immediately |
$ 7.90 |
|
|
| 29 |
WPW10406719 |
|
Shroud (Replaces: W10406719) |
|
|
|
$ 82.24 |
|
|
| 30 |
WPW10494227 |
|
Cord, Power (Replaces: W10494227) |
|
|
|
$ 84.70 |
|
|
| 31 |
W10278140 |
|
Cover, Bottom Unit |
|
|
|
$ 94.05 |
|
|
| 32 |
W10296661 |
|
Clip, Bottom Cover |
|
|
|
$ 17.78 |
|
|
| 33 |
W10491355 |
|
Gasket, Airdam |
|
|
|
$ 22.28 |
|
|
| 34 |
WPW10626970 |
 |
Assembly, Suction Tube (Replaces: W10626970) |
|
|
|
$ 166.92 |
|
|
| 35 |
W10236396 |
|
Strap, Compressor |
|
|
Immediately |
$ 20.81 |
|
|
| NI |
WP978025 |
 |
Valve, Access (Œ``) (Replaces: 978025) |
|
|
Immediately |
$ 110.51 |
|
|
| NI |
978026 |
 |
Valve, Access |
|
|
Immediately |
$ 134.49 |
|
|
| NI |
SF5538 |
 |
Valve, Access (Replaces: 978027) |
|
|
|
$ 21.64 |
|
|
| NI |
978028 |
|
Valve, Access |
|
Appelez-nous
|
- |
|
|
|
| NI |
978029 |
 |
Valve, Access |
|
|
|
$ 93.85 |
|
|
| NI |
978030 |
|
Valve, Access Ÿ``) |
|
|
|
$ 137.25 |
|
|
| NI |
876764 |
 |
Valve, Access |
|
|
Immediately |
$ 95.92 |
|
|
| NI |
N/P |
|
Refrigerant Charge 5.50 Oz. (r-134a) |
|
Appelez-nous
|
- |
|
|
|
View Diagram in Separate Window
Print Part List
