SELECT A DIAGRAM

02 - Cabinet


03 - Transformer


04 - Cabinet Trims And Breaker Trim


05 - Top Grille And Unit Cover


06 - Refrigerator Liner


07 - Freezer Liner


08 - Refrigerator Shelf


09 - Freezer Shelf


10 - Refrigerator Door


11 - Refrigerator Control Panel


12 - Freezer Door


13 - Freezer Control Panel


14 - Upper Unit


15 - Lower Unit And Tube


16 - Ice Container


17 - Air Flow And Reservoir


18 - Dispenser And Front


19 - Icemaker, Lit/optional

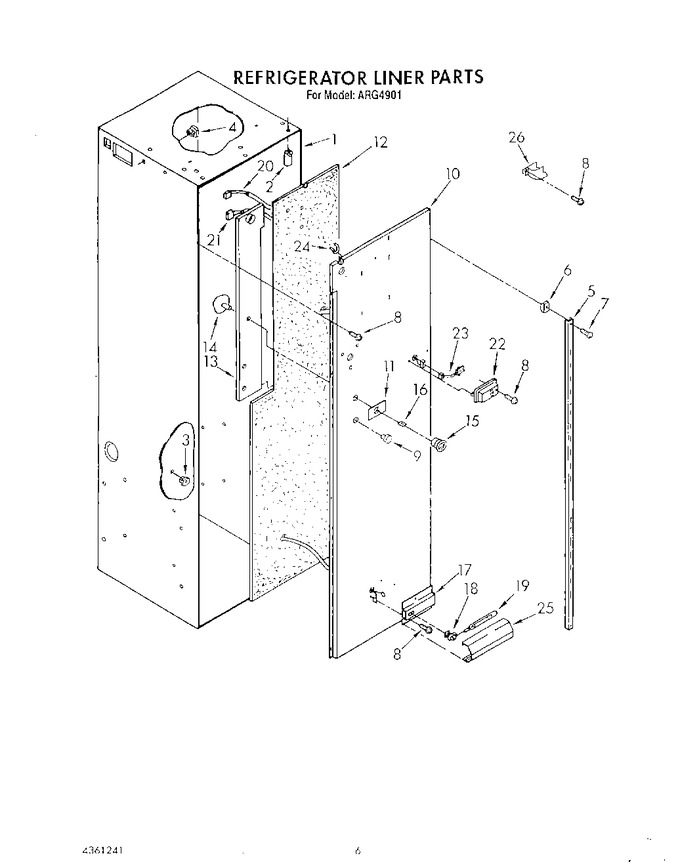

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1112591		Spacer, Control Panel (3)		Appelez-nous	-
3	843436		Grommet, Screw (3)		Appelez-nous	-
4	842339		Grommet		Appelez-nous	-
5	1112115		Ladder, Shelf (2)		Appelez-nous	-
6	520965		Screw Support, Ladder (8)				$ 29.86
7	488357		Screw, 8 X 1-1/4 (8)		Appelez-nous	-
8	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
9	1112257		Hole Plug		Appelez-nous	-
10	2000950		Cover, Liner Back		Appelez-nous	-
11	1112219		Control Panel Assembly (meat)		Appelez-nous	-
12	1112133		Insulation, Liner Back Cover		Appelez-nous	-
13	1112132		Duct, Meat Pan		Appelez-nous	-
14	1112218		Damper Control, Meat Pan				$ 8.51
15	1112258		Control Knob, Meat Pan		Appelez-nous	-
16	837444		Knob, Retainer		Appelez-nous	-
17	1112789		Bracket, Light		Appelez-nous	-
18	1112613		Socket, Light		Appelez-nous	-
19	WP548049		Light Bulb   (Replaces: 547225)				$ 86.35
20	1112993		Wiring Harness, Air Baffle		Appelez-nous	-
21	1112709		Wiring Harness, Light Socket		Appelez-nous	-
22	1116793		Cover, Thermistor				$ 14.63
23	1116959		Thermistor				$ 50.88
24	2000530		Flexible Grommet		Appelez-nous	-
25	1112788		Shield, Light		Appelez-nous	-
26	2003577		Guard, Air Return   (Replaces: 2000527)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
