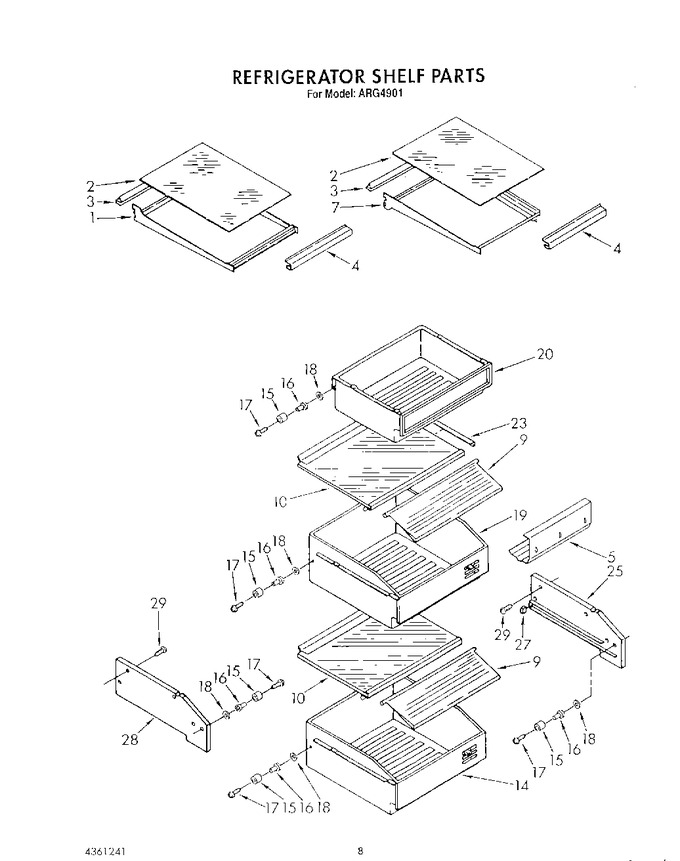

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1113542 | Frame, Shelf |
|
- | |||||
| 2 | 1112297 | Glass, Shelf |
|
- | |||||
| 3 | 1113546 | Reflector, Shelf |
|
- | |||||
| 4 | 1113790 | Gasket, Glass (2) |
|
- | |||||
| 5 | 1125913 | Rack, Wine |
|
- | |||||
| 7 | 1113550 | Frame, Assembly |
|
- | |||||
| 9 | 1113893 | Cover, Crisper |
|
- | |||||
| 10 | 2000154 | Glass, Crisper |
|
- | |||||
| 14 | 2000887 | Pan, Crisper |
|
- | |||||
| 15 | 1113870 | Roller |
|
- | |||||
| 16 | 1113871 | Eyelet, Roller |
|
- | |||||
| 17 | WPW10272364 | Screw, 10-16 X 3/4 (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 18 | 488307 | Washer |
|
- | |||||
| 19 | 2000891 | Utility Pan |
|
- | |||||
| 20 | 2000895 | Meat Pan |
|
- | |||||
| 23 | 1112324 | Retainer, Glass |
|
- | |||||
| 25 | 1112165 | Crisper Spacer, Right Side (2) |
|
- | |||||
| 27 | 1113169 | Stop, Roller |
|
$ 11.28 | |||||
| 28 | 1113890 | Crisper Spacer, Left Side (2) |
|
- | |||||
| 29 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 |
