SELECT A DIAGRAM

02 - Cabinet


03 - Transformer


04 - Cabinet Trims And Breaker Trim


05 - Top Grille And Unit Cover


06 - Refrigerator Liner


07 - Freezer Liner


08 - Refrigerator Shelf


09 - Freezer Shelf


10 - Refrigerator Door


11 - Refrigerator Control Panel


12 - Freezer Door


13 - Freezer Control Panel


14 - Upper Unit


15 - Lower Unit And Tube


16 - Ice Container


17 - Air Flow And Reservoir


18 - Dispenser And Front


19 - Icemaker, Lit/optional

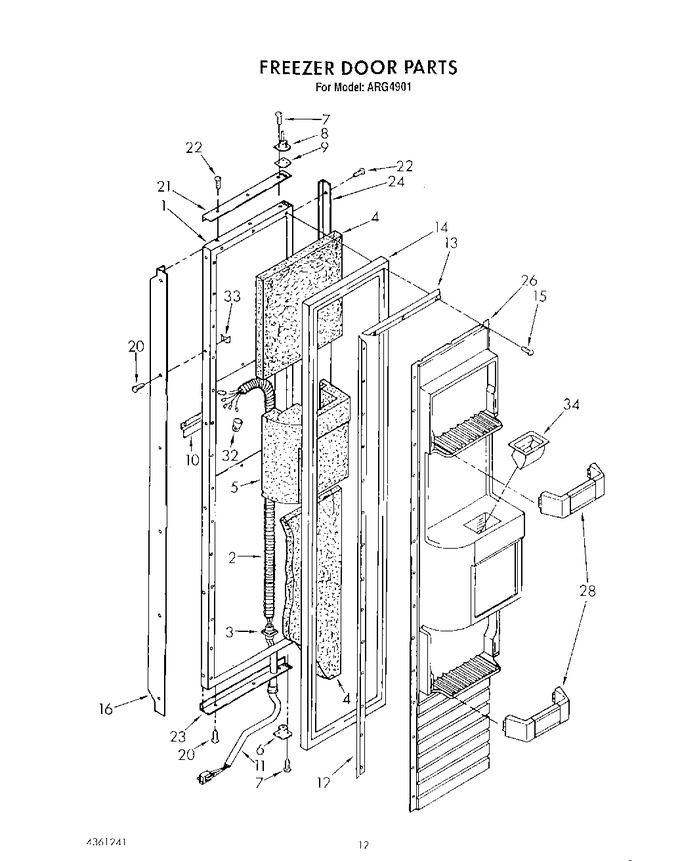

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2000598		Exterior Door Panel, Freezer (also Order Item 4)		Appelez-nous	-
2	1112997		Tube, Wiring		Appelez-nous	-
3	1112928		Retainer, Tube		Appelez-nous	-
4	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
5	1112977		Insulation, Dispenser		Appelez-nous	-
6	1112916		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
8	1112944		Hinge, Top		Appelez-nous	-
9	1112940		Spacer Plate Expansion (2)		Appelez-nous	-
10	2000067		Trim, Door (2)		Appelez-nous	-
11	1113777		Wiring Harness, Freezer Door		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112538		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2000443		Door Gasket, Magnetic		Appelez-nous	-
15	WP489069		Screw, 7 X 1/2 (34)   (Replaces: 489101)			Immediately	$ 7.86
16	2000182		Handle, Door		Appelez-nous	-
20	WP488729		Screw, 8-15 X 1/2   (Replaces: 487052)			Immediately	$ 7.79
21	2000077		Trim (top)		Appelez-nous	-
22	489112		Screw, 6-32 X 1/2		Appelez-nous	-
23	2000084		Trim (bottom)		Appelez-nous	-
24	1113820		Trim (side)		Appelez-nous	-
26	1113945		Panel, Interior Door		Appelez-nous	-
28	2000604		Door Shelf, Assembly (2)		Appelez-nous	-
32	227991		Wire Connector		Appelez-nous	-
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
34	1112554		Ice Chute		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
