Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 SM999 Fan, Motor   (Replaces: 945523) In-Stock Immediately $ 30.26

2 992953 Ring, Compression Appelez-nous -
3 992920 Blade, Fan Special Order $ 39.91

4 548263 Bracket (double) Appelez-nous -
5 938224 Bracket (single) Appelez-nous -
6 548268 Grommet Appelez-nous -
7 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.02

8 538449 Grommet, Screw Appelez-nous -
9 WP489128 Screw, Ground   (Replaces: 488500) Special Order $ 10.88

11 WP488366 Clamp, Tube   (Replaces: 488366) Special Order $ 11.18

12 2001256 Channel, Wiring Appelez-nous -
13 2000618 Wiring Harness, Fan Motor Appelez-nous -
14 1111212 Scroll, Fan (also Order Item 15) Appelez-nous -
15 1112976 Shield, Scroll Appelez-nous -
16 WP489069 Screw, 8 X 1/2   (Replaces: 488772) In-Stock Immediately $ 7.86

17 2000055 Assembly, Air Duct Appelez-nous -
18 2000048 Air Deflector, Icemaker Appelez-nous -
19 1112870 Cup, Motor Appelez-nous -
20 1112882 Shield Appelez-nous -
21 1112871 Fastener (3) Appelez-nous -
22 1112869 Gasket, Air Baffle Appelez-nous -
23 1113942 Cover, Air Outlet Appelez-nous -
24 WPW10141625 Screw, 8-32 X 1-1/2   (Replaces: 488649) Special Order $ 21.16

25 2000485 Cover, Evaporator Appelez-nous -
26 1112565 Connector, Meat Pan Duct Appelez-nous -
27 WP488729 Screw, 8 X 1/2   (Replaces: 487539) In-Stock Immediately $ 7.79

28 1112840 Baffle, Evaporator Appelez-nous -
29 1112851 Diffuser, Air Duct Appelez-nous -
30 WP2256126 Reservior, Water   (Replaces: 839912) Special Order $ 168.85

31 W10823511 Water Tube (inlet)   (Replaces: 2001259) In-Stock Immediately $ 32.41

32 4387491 Insert, Tube   (Replaces: 841707) Special Order $ 7.84

33 00753257 ``o`` Ring Seal   (Replaces: 488819) In-Stock Immediately $ 295.49

34 488795 Compression Nut Appelez-nous -
35 1112875 Assembly, Air Baffle Appelez-nous -
36 1113147 Insulation, Air Diffuser Appelez-nous -
38 1112878 Cover, Air Diffuser Appelez-nous -
39 WP489174 Screw, 8 X 2   (Replaces: 489174) Special Order $ 6.95

40 488775 Screw Appelez-nous -
41 1112265 Tube, Meat Pan Appelez-nous -
42 1112529 Evaporator Baffle Cover Appelez-nous -
43 2001260 Water Tube (outlet) Appelez-nous -
44 WP488163 Screw, 8 X 3/4   (Replaces: 488248) Special Order $ 7.54


    View Diagram in Separate Window     Print Icon   Print Part List

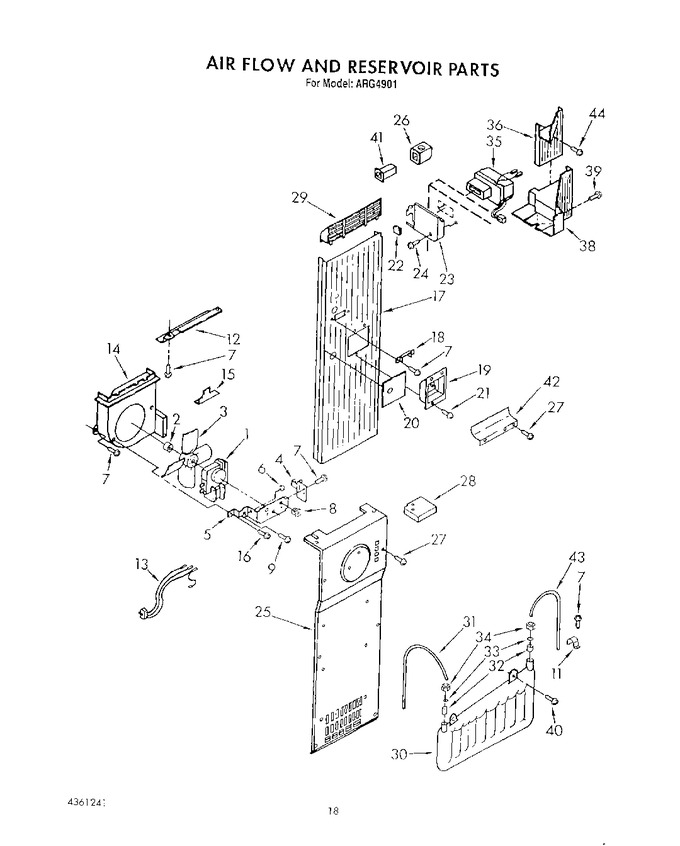

Diagram for ARG4901
