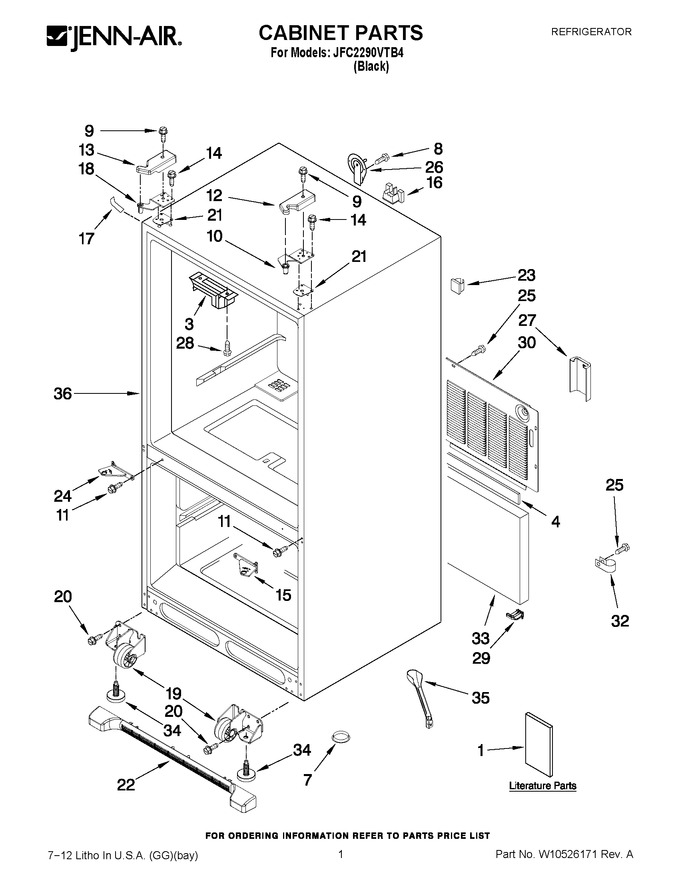

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10475388 | Tech Sheet |
|
- | |||||
| 1 | W10214832 | Tag, Energy |
|
- | |||||
| 1 | W10276070 | Owners Manual |
|
- | |||||
| 3 | W11024160 | Block, Pivot (Replaces: W10120087) |
|
$ 19.03 | |||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 7 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 9 | 12992603 | Screw |
|
$ 10.33 | |||||
| 10 | W10210891 | Hinge, Top Right |
|
$ 86.78 | |||||
| 11 | W11573362 | Screw (6) (Replaces: W10339086) |
|
$ 14.02 | |||||
| 12 | W10153131 | Cover, Right Hinge (black) |
|
- | |||||
| 13 | W10892762 | Cover, Left Hinge (black) (Replaces: W10153130) |
|
$ 18.62 | |||||
| 14 | WP489349 | Screw (6) (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W10210883 | Hinge, Center (rt) (black) |
|
$ 80.75 | |||||
| 16 | 12777701 | Block, Fill Tube |
|
$ 7.17 | |||||
| 17 | 67003485 | Cover, Corner (2) (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | W10892768 | Hinge, Top Left (Replaces: W10210890) |
|
$ 72.85 | |||||
| 19 | W11820445 | Roller Assy. (front) (right) (Replaces: W10275849) |
|
Immediately | $ 35.57 | ||||
| 19 | W11820444 | Roller Assy. (front) (left) (Replaces: W10275850) |
|
Immediately | $ 35.57 | ||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | 12999502 | Shim, Hinge (right) |
|
$ 100.60 | |||||
| 21 | 12999501 | Shim, Hinge (left) |
|
$ 99.53 | |||||
| 22 | WPW10534153 | Grille, Toe (black) (Replaces: W10244561N) |
|
$ 147.21 | |||||
| 23 | WPM0104106 | Clip (2) (Replaces: M0104106) |
|
$ 7.78 | |||||
| 24 | W11747629 | Hinge, Center (lt) (stainless) (Replaces: W10210882) |
|
Immediately | $ 51.83 | ||||
| 25 | 67006425 | Screw (10) (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12726003 | Cover, Waterline |
|
$ 19.19 | |||||
| 27 | W10208593 | Guard, Water Valve (dual) |
|
$ 15.71 | |||||
| 28 | W10854958 | Screw (2) (Replaces: 12990302) |
|
$ 7.43 | |||||
| 29 | 12831101 | Sweep, Dual Tube |
|
$ 13.03 | |||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 198.09 | |||||
| 32 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 21.33 | ||||
| 33 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 34 | WPW10141622 | Brake, Foot (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 35 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 36 | N/P | Cabinet (not A Servicable Part) |
|
- |
