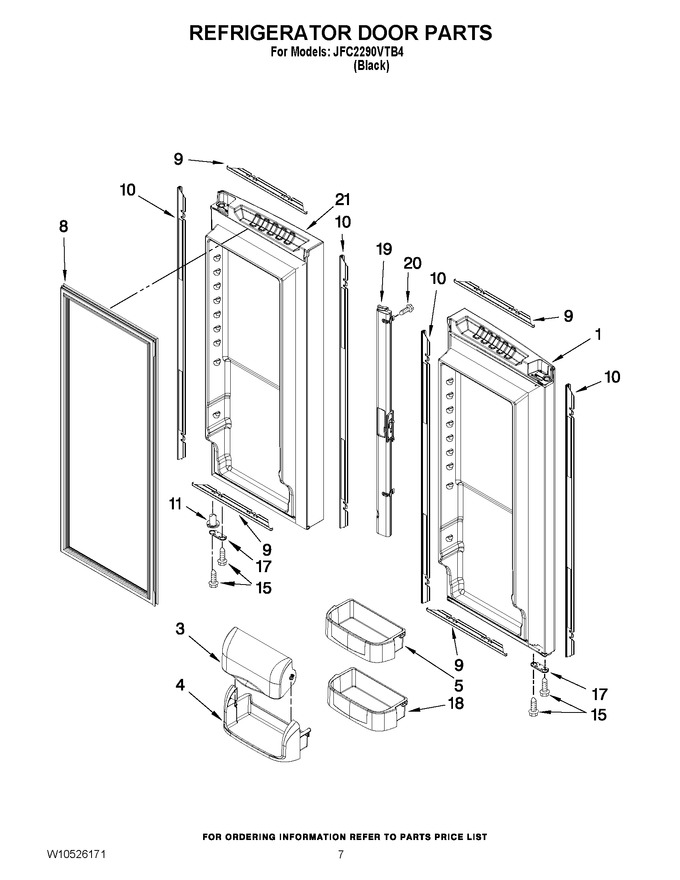

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13094736B | Door, Refrigerator (black, Lh) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10119841 | Bucket, Medium (3) (Replaces: W10119841) |
|
Immediately | $ 90.23 | ||||
| 8 | W10830047 | Gasket, Door (black) (Replaces: W10435971) |
|
Immediately | $ 200.20 | ||||
| 9 | W10130132 | Trim, Top / Bottom |
|
$ 129.33 | |||||
| 10 | WPW10130136 | Trim, Side (Replaces: W10130136) |
|
$ 177.11 | |||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 17 | W10153126 | Stop, Door (black) |
|
$ 15.56 | |||||
| 18 | WPW10119846 | Bucket, Gallon (2) (Replaces: W10119846) |
|
Immediately | $ 81.84 | ||||
| 19 | W11177241 | Mullion, Door (black) (Replaces: 12732508B) |
|
Immediately | $ 187.59 | ||||
| 20 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 21 | 13094741BQ | Door, Refrigerator (black, Rh) (Replaces: 13094741B) |
|
- |
