Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13094914BQ Door, Freezer (black)   (Replaces: 13094914B) Special Order $ 1,127.62

3 W10436252 Gasket, Door (black) In-Stock Immediately $ 362.28

4 W10130133 Trim, Top / Bottom In-Stock Immediately $ 201.23

5 W10130137 Trim, Side Special Order $ 139.30


    View Diagram in Separate Window     Print Icon   Print Part List

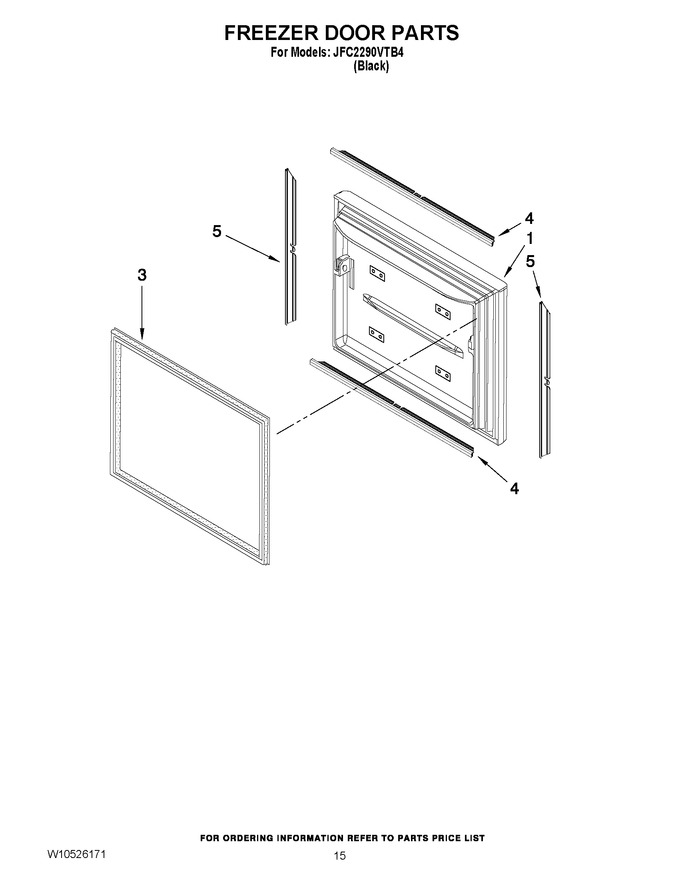

Diagram for JFC2290VTB4
