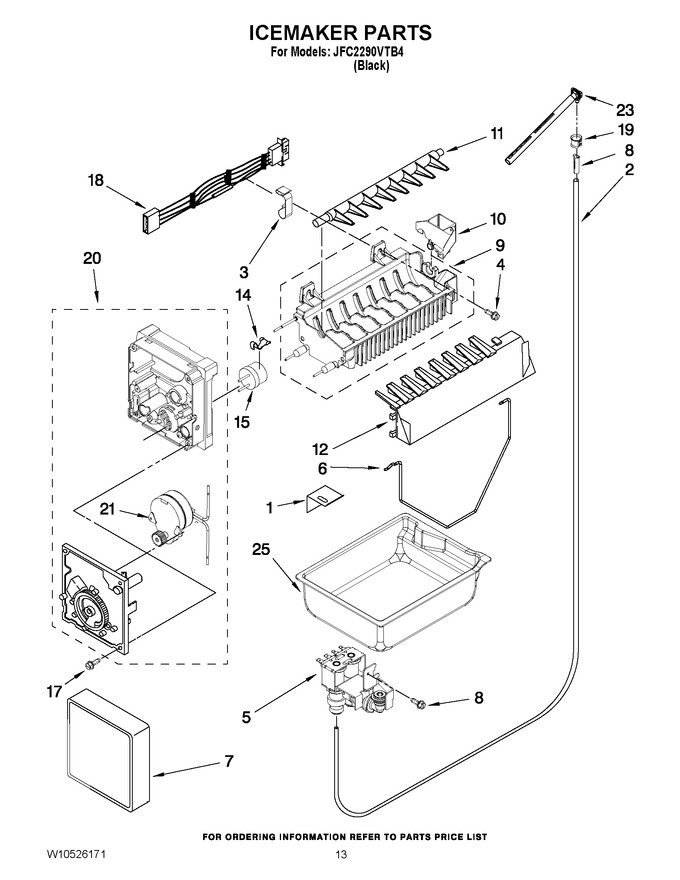

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Ice Maker (Replaces: 2256086) |
|
$ 97.65 | |||||
| 2 | W11120581 | Tube, Plastic (Replaces: B5705333) |
|
$ 124.93 | |||||
| 3 | 10526702 | Clamp |
|
- | |||||
| 4 | W1006825 | Screw |
|
- | |||||
| 5 | WPW10420083 | Valve-inlet (Replaces: W10420083) |
|
Immediately | $ 159.91 | ||||
| 6 | W11559683 | Arm-shut Off (Replaces: W10512602) |
|
$ 71.20 | |||||
| 7 | W10377174 | Cover, Im |
|
$ 81.33 | |||||
| 8 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 | ||||
| 9 | WPW10300025 | Mold & Heater Assembly (also Order 542638) (Replaces: W10300025) |
|
Immediately | $ 201.92 | ||||
| 10 | W10410073 | Cup Water Fill |
|
$ 84.07 | |||||
| 11 | W10318914 | Ejector |
|
$ 38.08 | |||||
| 12 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 99.42 | |||||
| 14 | WP628379 | Clip,fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 15 | WP627985 | Thermostat Order 542369 Cement Alumilastic) (Replaces: W10290336) |
|
$ 114.64 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 18 | WPW10458985 | Harness, Ice Maker (Replaces: W10458985) |
|
$ 111.35 | |||||
| 19 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 20 | WPW10281342 | Module Assembly Includes Items 21& 22) (Replaces: W10281342) |
|
$ 280.48 | |||||
| 21 | N/P | Motor (not Available, Order No.20) |
|
- | |||||
| 23 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 119.86 | ||||
| 25 | W10120005 | Pan, Ice |
|
$ 211.62 | |||||
| 100 | W10884390 | Complete Ice Maker (Replaces: W10377152) |
|
Immediately | $ 149.65 |
