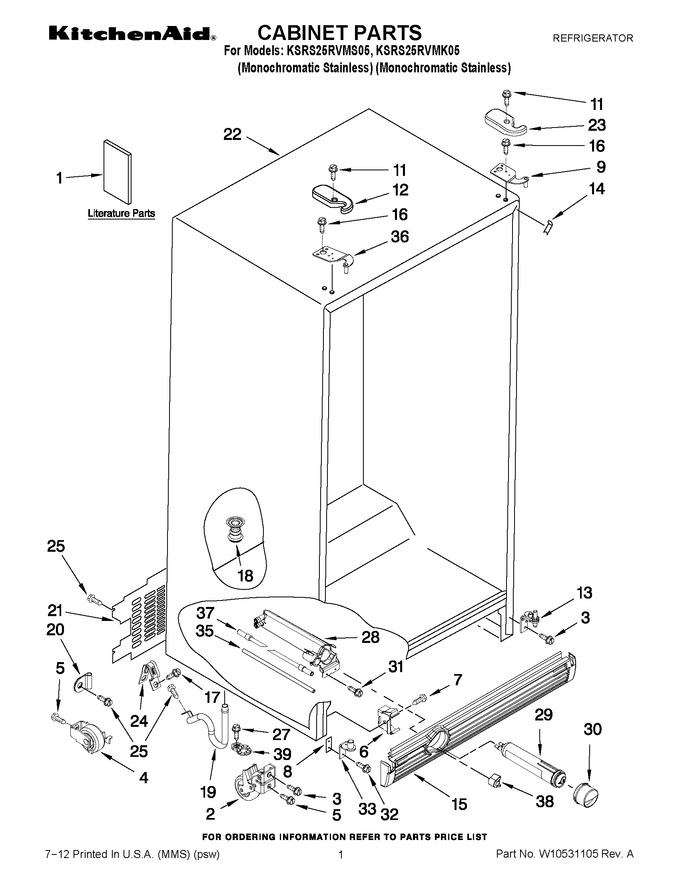

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10320899 | Energy Guide |
|
- | |||||
| 1 | W10190568 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2220407 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10305232 | Instruction Sheet, Door Removal |
|
- | |||||
| 1 | W10346242 | Owner?s Manual |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Rear Roller (2) (Replaces: W10250570) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: W10146358) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WPW10141604 | Screw (Replaces: W10141604) |
|
$ 8.85 | |||||
| 8 | WP2181911 | Shim (Replaces: 2156056) |
|
$ 34.87 | |||||
| 9 | W10242649 | Hinge, Top (rc) |
|
- | |||||
| 11 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 12 | 2203407AP | Hinge Cover (apollo Gray) (Replaces: 2303134AP) |
|
- | |||||
| 13 | W10219817 | Bottom Hinge (rc) |
|
- | |||||
| 14 | W10143043 | Filler, Wrapper (apollo Gray) |
|
- | |||||
| 15 | W10311035 | Grille (midnight Gray) |
|
- | |||||
| 16 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 17 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 18 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 19 | W11512417 | Extension Tube (Replaces: W10153550) |
|
$ 36.53 | |||||
| 20 | 2185960 | Clamp, Cord (Replaces: 2305373) |
|
- | |||||
| 21 | WP2188755 | Cover, Unit (Replaces: 2188735) |
|
$ 142.71 | |||||
| 22 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 23 | 2203408AP | Hinge Cover (apollo Gray) (Replaces: 2303135AP) |
|
$ 99.19 | |||||
| 24 | 549193 | Clamp, Service Cord |
|
$ 14.06 | |||||
| 25 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 27 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 | |||||
| 28 | WPW10121138 | Housing, Water Filter (Replaces: 2260507) |
|
Immediately | $ 112.91 | ||||
| 29 | EDR3RXD1B | Water Filter (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 30 | WP2260518MG | Cap, Water Filter (midnight Gray) (Replaces: 2260502MG) |
|
$ 58.83 | |||||
| 31 | WP489500 | Screw (Replaces: 489500) |
|
$ 8.17 | |||||
| 32 | WP489497 | Screw (Replaces: W10142235) |
|
Immediately | $ 29.09 | ||||
| 33 | 2303141 | Bottom Hinge (fc) |
|
$ 261.00 | |||||
| 35 | WPW10350006 | Tube, Filter Outlet (Replaces: W10330344) |
|
$ 121.32 | |||||
| 36 | W10242650 | Hinge, Top (fc) |
|
- | |||||
| 37 | W10281289 | Tube, Filter Inlet |
|
$ 57.80 | |||||
| 38 | 2260503MG | Button, Water Filter (midnight Gray) |
|
$ 28.36 | |||||
| 39 | W11778262 | Door Closer, (fc) (Replaces: 2223751) |
|
$ 11.63 |
