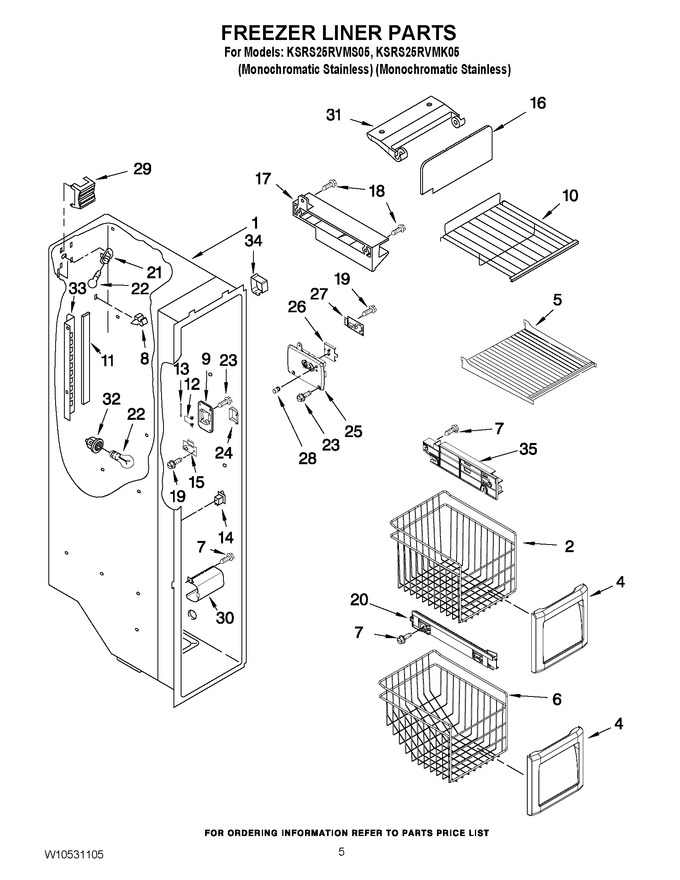

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	2301139		Basket, Tall		Appelez-nous	-
4	2301134		Front, Basket				$ 30.78
5	2205837K		Shelf (2)				$ 42.67
6	2301140		Basket, Sloped		Appelez-nous	-
7	W10759522		Screw (12)   (Replaces: W10004810)				$ 8.24
8	2215823		Clip, Air Duct (2)   (Replaces: 2315163)				$ 10.94
9	WP2198587		Cover, Emitter   (Replaces: 2198587)				$ 110.83
10	2211746		Shelf, S/o Upper		Appelez-nous	-
11	2198697		Gasket, Ladder				$ 36.87
12	WP2198635		Spring   (Replaces: 2198635)				$ 91.43
13	WP2198634		Pin   (Replaces: 2198634)				$ 18.65
14	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
15	W11629974		P.c. Board Emitter   (Replaces: W10193840)			Immediately	$ 421.12
16	WP2255720		Cover, Ice Maker   (Replaces: 2255720)				$ 78.56
17	2212321		Slide, Ice Maker Mounting				$ 67.14
18	WP489478		Screw   (Replaces: W10001260)				$ 8.18
19	2006254		Screw   (Replaces: 489214)				$ 13.79
20	2301289		Glide Assembly, Sloped/bottom Basket (right Side)				$ 86.80
20	2301290		Glide Assembly, Sloped/bottom Basket (left Side)				$ 134.88
21	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
22	W11679940		Light Bulb   (Replaces: W10311505)			Immediately	$ 11.30
23	WPW10142283		Screw   (Replaces: W10142283)				$ 10.33
24	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 50.68
25	W10173569		Cover, Receiver				$ 66.93
26	2315398		Slide, Ice Maker Shut Off				$ 11.45
27	W11629974		P.c. Board, Receiver   (Replaces: W10290817)			Immediately	$ 421.12
28	WP2198643		Lens   (Replaces: 2198643)				$ 8.59
29	2198589		Light Shield		Appelez-nous	-
30	W11298978		Light Lens   (Replaces: 2212340)				$ 98.57
31	WP2198641		Bracket, Icemaker Cover   (Replaces: 2198641)				$ 7.55
32	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
33	2198609		Ladder (left Side)				$ 42.40
33	2198610		Ladder (right Side)				$ 63.20
34	2303234		Shield, Wiring		Appelez-nous	-
35	2301294		Glide Assembly Square/middle Basket (left Side)		Appelez-nous	-
35	2301293		Glide Assembly Square/middle Basket (right Side)		Appelez-nous	-
