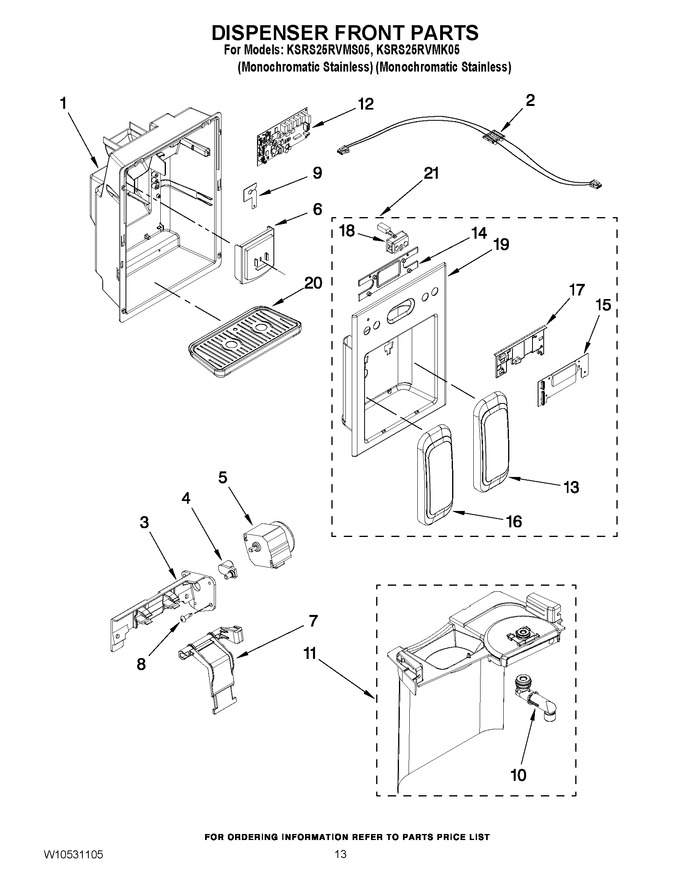

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10178851		Wire Assy, Ui		Appelez-nous	-
3	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 101.60
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 101.82
5	WPW10184813		Motor, Ice Door   (Replaces: W10184813)			Immediately	$ 108.33
6	WP2305258		Door, Ice   (Replaces: 2305258)				$ 26.09
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 92.63
8	WP4449745		Screw (4)   (Replaces: 4449745)				$ 7.98
9	2305447		Clip, Wiring		Appelez-nous	-
10	W10187441		Spigot				$ 119.98
11	2305456		Separator Assembly				$ 52.30
12	WP2303843		Electronic Control (core)   (Replaces: 2303843)				$ 365.39
13	W10133606		Pad, Water (for Monochromatic Stainless Model)   (Replaces: 2305307AS)				$ 335.00
14	2305287		Lens, Front Cover		Appelez-nous	-
15	WP2321746		Cover, Electronic Control (user Interface)   (Replaces: 2321746)			Immediately	$ 318.84
16	W10133606		Pad, Ice (for Monochromatic Stainless Model)   (Replaces: 2305306AS)				$ 335.00
17	2305219		Cover, Pc Board				$ 92.99
18	W10222215		Led Assembly				$ 154.54
19	N/P		Front Cover, Housing (not Available, Order No.21)		Appelez-nous	-
20	2323096NO		Tray, Housing (nickel One)		Appelez-nous	-
21	W10190186		Front Cover Assembly (includes Items 13, 14, 15, 16, 17, 18, 19) (stainless)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
