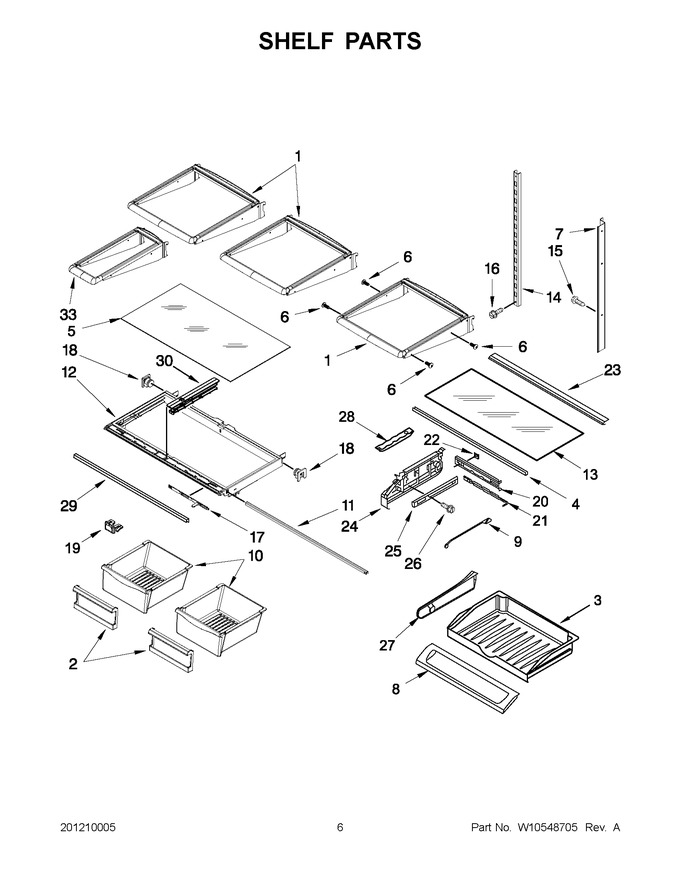

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11402525 | Shelf, Glide Out (Replaces: 12883507) |
|
$ 234.44 | |||||
| 2 | 12727402SP | Handle, Crisper Pan |
|
- | |||||
| 3 | WP67003531 | Drawer, Pantry (Replaces: 12731302) |
|
$ 162.82 | |||||
| 4 | WP12227305WD | Brace-pantry (Replaces: 12227305WH) |
|
$ 108.36 | |||||
| 5 | WP67006704 | Glass, Crisper (Replaces: 12204824) |
|
$ 212.77 | |||||
| 6 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 7 | W10251965 | Ladder, Side (right Hand) |
|
$ 31.08 | |||||
| 7 | W10251966 | Ladder, Side (left Hand) |
|
$ 80.56 | |||||
| 8 | W10827015 | Lid, Pantry (Replaces: 12656815) |
|
Immediately | $ 175.81 | ||||
| 9 | WP67003795 | Bar, Control (Replaces: 12655304) |
|
$ 8.45 | |||||
| 10 | WP67004515 | Pan, Crisper (Replaces: 12804601SP) |
|
Immediately | $ 176.72 | ||||
| 11 | WP12642303WD | Crisper Cover (Replaces: 12642303WD) |
|
$ 112.26 | |||||
| 12 | WPW10329866 | Frame, Crisper (Replaces: W10329866) |
|
$ 226.44 | |||||
| 13 | W11033333 | Glass, Shelf (Replaces: 12204830) |
|
$ 227.27 | |||||
| 14 | W10273464 | Ladder, Center |
|
Immediately | $ 30.19 | ||||
| 15 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 16 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 17 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 18 | WP13062602 | Support, Crisper Frame (Replaces: 13062602) |
|
$ 84.87 | |||||
| 19 | W11498983 | Knob, Temperature Control (Replaces: 12655204) |
|
$ 30.64 | |||||
| 20 | 12656202 | Control, Housing |
|
$ 148.84 | |||||
| 21 | WP67003793 | Slide, Temperature Control (Replaces: 12655402) |
|
Immediately | $ 78.49 | ||||
| 22 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 22.09 | |||||
| 23 | W11812285 | Trim, Pantry Glass (Replaces: 12655902SP) |
|
$ 53.33 | |||||
| 24 | W10874836 | Endcap, Pantry (left Hand) (Replaces: 12656106) |
|
Immediately | $ 38.43 | ||||
| 24 | W10874836 | Endcap, Pantry (right Hand) (Replaces: 12656019) |
|
Immediately | $ 38.43 | ||||
| 25 | WPW10235370 | Glide, Pantry (Replaces: W10235370) |
|
Immediately | $ 199.80 | ||||
| 26 | W10185612 | Screw |
|
$ 7.08 | |||||
| 27 | WP67002759 | Divider, Pantry (Replaces: 12731901) |
|
Immediately | $ 61.25 | ||||
| 28 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 29 | WPW10231345 | Trim, Crisper (Replaces: W10231345) |
|
$ 137.67 | |||||
| 30 | WPW10326469 | Rail, Center Crisper (Replaces: W10326469) |
|
Immediately | $ 33.37 | ||||
| 33 | W11197490 | Shelf, Mini (stationary) (Replaces: 12885501) |
|
$ 242.05 |
