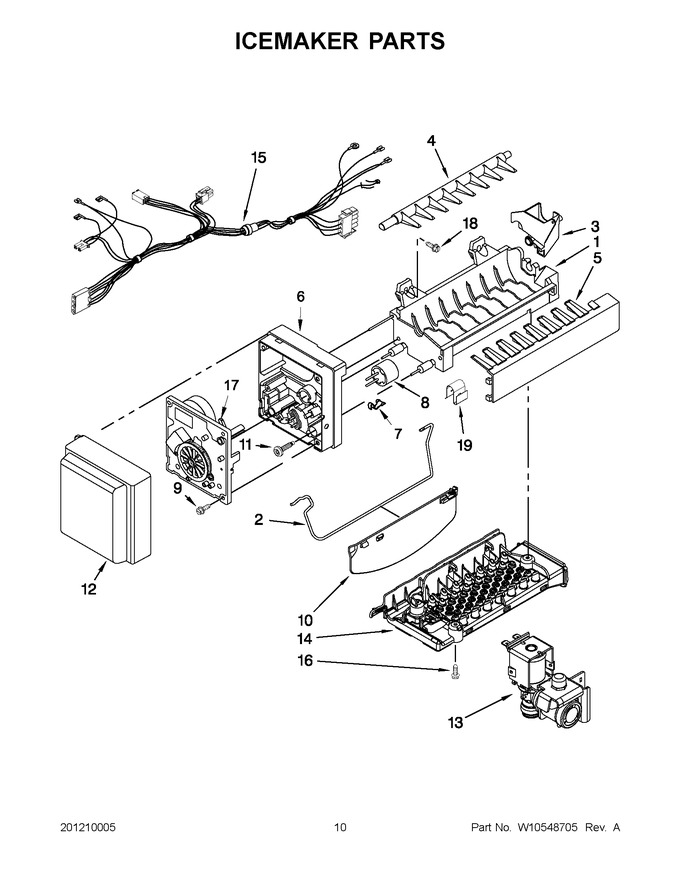

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10379147		Assembly, Mold & Heater   (Replaces: W10379147)				$ 207.07
2	WPW10175514		Arm, Shutoff   (Replaces: W10175514)			Immediately	$ 95.82
3	W10327050		Cup, Fill				$ 90.18
4	W10318914		Ejector, Arm				$ 38.08
5	WPW10122563		Stripper, Ice   (Replaces: W10122563)				$ 99.42
6	WP2195914		Support, Housing   (Replaces: 2194712)				$ 109.80
7	WP2315522		Retainer Thermostat   (Replaces: 2315522)				$ 11.60
8	WP627985		Thermostat   (Replaces: W10290336)				$ 114.64
9	W10001240		Screw				$ 9.22
10	WPW10351019		Extension, Shutoff Arm   (Replaces: W10351019)				$ 84.69
11	W10001280		Screw		Appelez-nous	-
12	W10482962		Cover, Ice Maker		Appelez-nous	-
13	WPW10498988		Valve, Solenoid   (Replaces: W10464415)				$ 122.81
14	WPW10312691		Assembly, Impinger   (Replaces: W10312691)				$ 366.67
15	W10459673		Harness, Ice Maker Module		Appelez-nous	-
16	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
17	W10239565		Module Assembly		Appelez-nous	-
18	W10001240		Screw				$ 9.22
19	WP628379		Clip, Thermal Fuse   (Replaces: 628379)				$ 11.10
100	W10457318		Assembly, Ice Maker		Appelez-nous	-
