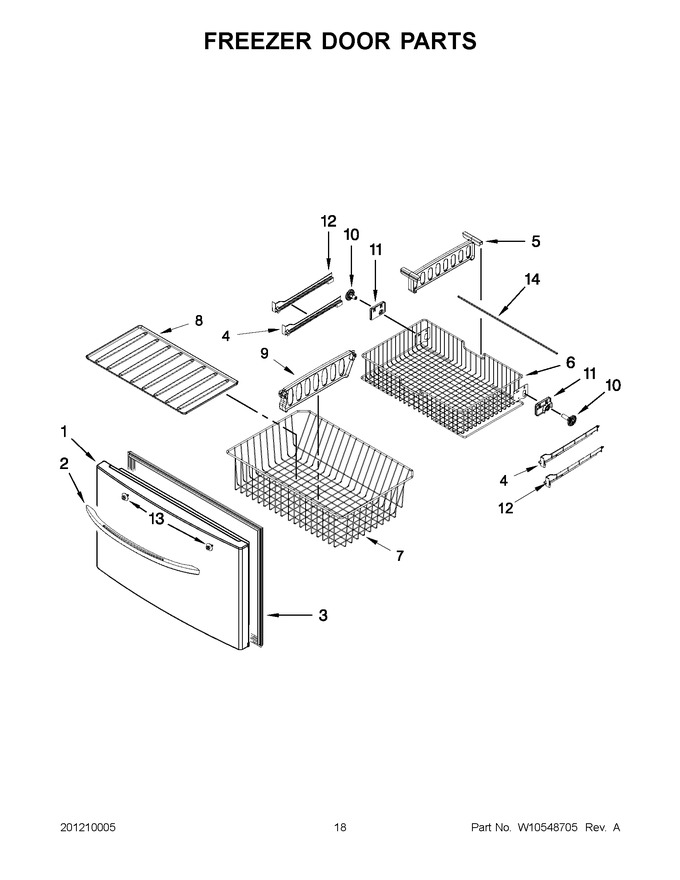

07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977875FQ		Freezer Door (sparkle Steel)   (Replaces: 12977875F)		Appelez-nous	-
2	W10223025K		Handle, Door (stainless)				$ 85.40
3	WPW10714545		Gasket, Door (grey)   (Replaces: W10443322)				$ 323.60
4	WPW10280613		Cradle, Basket (right Hand)   (Replaces: W10280613)				$ 92.15
4	WPW10280608		Cradle, Basket (left Hand)   (Replaces: W10280608)				$ 92.15
5	W10146439		Divider, Upper Basket				$ 32.66
6	W11218042		Basket, Upper   (Replaces: W10348249)				$ 203.43
7	WPW10503184		Basket, Lower   (Replaces: W10503184)				$ 250.08
8	WP67006104		Tray, Lower Basket   (Replaces: 13025201)				$ 89.31
9	W10847995		Divider, Lower Basket   (Replaces: W10146440)				$ 92.48
10	WPW10474716		Gear Spur (left Hand)   (Replaces: W10474716)			Immediately	$ 32.42
10	WPW10474715		Gear Spur (right Hand)   (Replaces: W10474715)			Immediately	$ 32.76
11	W10348259		Gear Mount (left Hand)				$ 89.87
11	W10348260		Gear Mount (right Hand)				$ 89.90
12	W11489993		Rack (left Hand)   (Replaces: W10516603)				$ 23.46
12	W11489994		Rack (right Hand)   (Replaces: W10516602)				$ 23.46
13	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 9.65
14	W11173556		Shaft, Rack   (Replaces: 12812904WD)				$ 32.38
