SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Freezer Door Parts

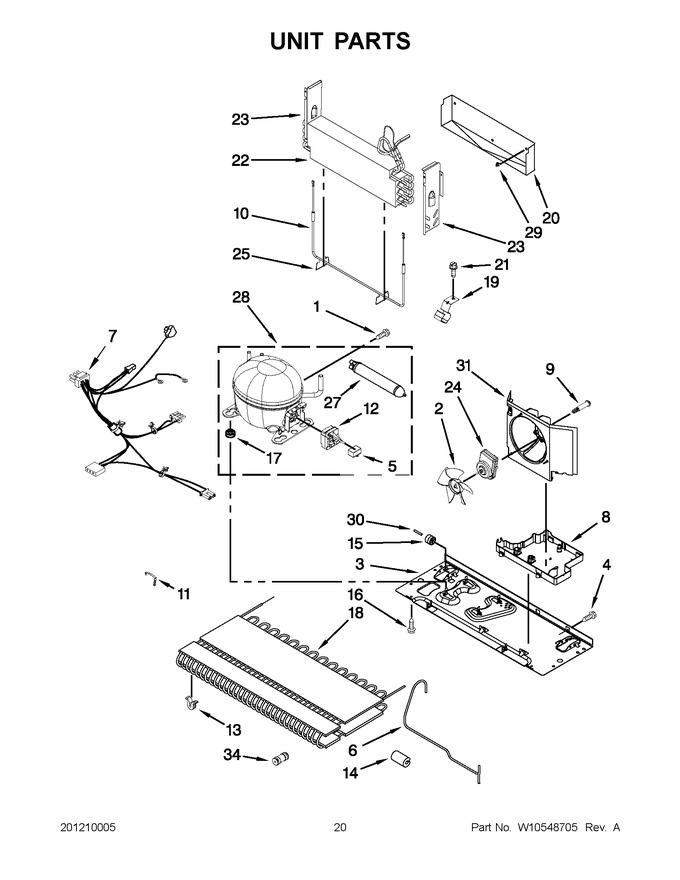

10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 75.12
3	W11727651		Basepan   (Replaces: W10480111)				$ 105.29
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
5	2321245		Capacitor		Appelez-nous	-
6	W10242974		Tube, Discharge				$ 82.85
7	W10510963		Harness, Unit		Appelez-nous	-
8	WPW10655368		Pan, Drain   (Replaces: W10296785)			Immediately	$ 99.03
9	W10829281		Screw, Shoulder   (Replaces: W10216919)				$ 12.65
10	12729132		Heater, Defrost		Appelez-nous	-
11	2302129		Bale Strap		Appelez-nous	-
12	W10361441		Device, Start		Appelez-nous	-
13	WPW10137529		Grommet-condenser   (Replaces: W10137529)				$ 8.34
14	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.70
15	12477102		Roller			Immediately	$ 7.38
16	12992101		Screw		Appelez-nous	-
17	WPW10169124		Grommet, Compressor   (Replaces: 10835903SP)			Immediately	$ 7.19
18	WPW10346415		Condenser   (Replaces: W10346415)				$ 335.38
19	W10281329		Clip, Drier				$ 13.08
20	W11547653		Tray, Drip   (Replaces: W10292803)				$ 54.30
21	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 7.95
22	W11536253		Evaporator   (Replaces: W10313899)				$ 250.69
23	12963002SP		Dam (left Hand)		Appelez-nous	-
23	12963102SP		Dam (right Hand)		Appelez-nous	-
24	WPW10246191		Motor, Fan   (Replaces: W10246191)				$ 302.28
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	W10183407		Compressor   (Replaces: W10120455)				$ 414.86
29	10623002		Clip, Evaporator				$ 11.53
30	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.52
31	W11556315		Shroud   (Replaces: W10189184)				$ 79.66
34	WPW10334458		Connector, Water Tube   (Replaces: W10334458)				$ 21.59
NI	978026		Valve, Access			Immediately	$ 128.09
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 130.71
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 105.25
NI	876764		Valve, Access			Immediately	$ 91.35
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
