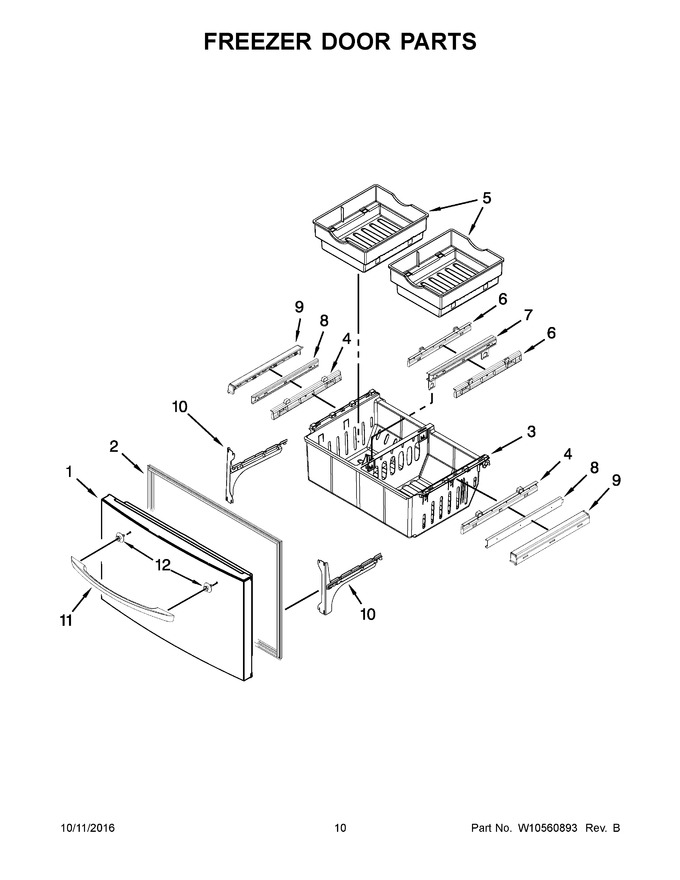

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107111WQ		Freezer Door (white)   (Replaces: 13107111W)				$ 655.37
2	WPW10443321		Gasket, Door (white)   (Replaces: W10443321)				$ 342.70
3	12924801SP		Bin, Lower		Appelez-nous	-
4	W10166742		Adapter, Outer Bin   (Replaces: 12925403SP)				$ 93.45
5	WP12924903		Bin, Upper Freezer   (Replaces: 12924903)				$ 126.00
6	12925404SP		Adapter, Center Bin				$ 43.16
7	WPW10235357		Assembly, Bracket And Glide   (Replaces: W10235357)			Immediately	$ 315.22
8	WPW10235367		Glide, Drawer   (Replaces: W10235367)				$ 298.50
9	WP67006368		Retainer, Glide (right Hand)   (Replaces: 12925502SP)				$ 183.71
10	WPW10330991		Bracket, Door Slide (left Hand)   (Replaces: W10330991)				$ 156.49
11	WPW10314520K		Handle, Freezer (white)   (Replaces: W10314520K)				$ 230.15
12	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.85
10A	WPW10330993		Bracket, Door Slide (right Hand)   (Replaces: W10330993)				$ 158.18
11A	W10314521K		Handle, Freezer (black)		Appelez-nous	-
11B	WPW10314522K		Handle, Freezer (stainless)   (Replaces: W10314522K)				$ 267.33
1A	13107111BQ		Freezer Door (black)   (Replaces: 13107111B)				$ 661.21
1B	13107111SQ		Freezer Door (stainless)   (Replaces: 13107111S)				$ 1,052.01
2A	WPW10436253		Gasket, Door (black)   (Replaces: W10436253)				$ 343.70
2B	WPW10714545		Gasket, Door (grey)   (Replaces: W10443322)				$ 308.19
9A	W10826788		Retainer, Glide (left Hand)   (Replaces: 12925501SP)				$ 54.76
