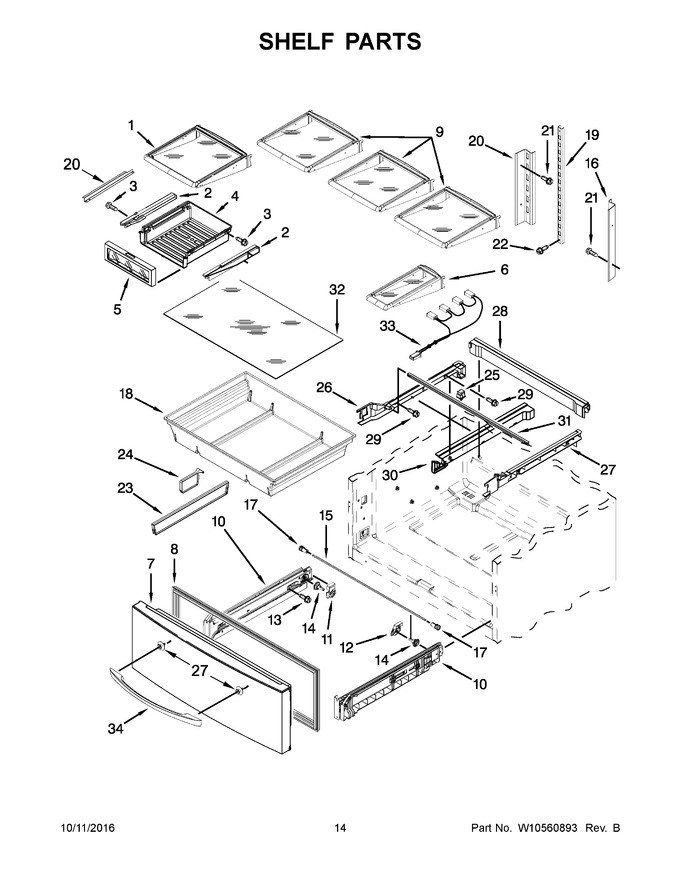

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11243759 | Assembley, Shelf & Roller (Replaces: W10345310) |
|
Immediately | $ 240.28 | ||||
| 2 | WPW10346891 | Runner, Pan Roller (left Hand) (Replaces: W10346891) |
|
Immediately | $ 277.64 | ||||
| 3 | WP8281136 | Screw (Replaces: 8281136) |
|
$ 6.95 | |||||
| 4 | W11696630 | Pan, Deli (Replaces: W10366647) |
|
Immediately | $ 88.00 | ||||
| 5 | WPW10396909 | Front, Deli Pan (Replaces: W10396909) |
|
$ 105.21 | |||||
| 6 | W11241612 | Shelf, Mini (Replaces: W10329926) |
|
$ 233.98 | |||||
| 7 | 13107112WQ | Door, Pantry (white) (Replaces: 13107112W) |
|
$ 922.64 | |||||
| 8 | W10443325 | Gasket, Pantry (white) |
|
Immediately | $ 287.57 | ||||
| 9 | W11213107 | Shelf, Stationary (Replaces: W10329925) |
|
$ 246.04 | |||||
| 10 | W11093713 | Adapter, Pantry (left Hand) (Replaces: W10295155) |
|
$ 134.70 | |||||
| 11 | W10277360 | Gear, Spur |
|
$ 30.33 | |||||
| 12 | W10284709 | Cover, Gear (left Hand) |
|
$ 70.37 | |||||
| 13 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 10.82 | ||||
| 14 | 67006529 | Screw (Replaces: 12991701) |
|
$ 12.83 | |||||
| 15 | W10298176 | Shaft, Rack |
|
- | |||||
| 16 | W10251965 | Ladder, Side (left Hand) |
|
$ 29.60 | |||||
| 17 | WPW10277361 | Collar, Gear (Replaces: W10277361) |
|
$ 11.51 | |||||
| 18 | WPW10530656 | Pan, Pantry (Replaces: W10268846) |
|
$ 229.41 | |||||
| 19 | W10273464 | Ladder, Center |
|
Immediately | $ 28.75 | ||||
| 20 | W11226546 | Runner, Channel (Replaces: W10385043) |
|
$ 119.51 | |||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 22 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 7.80 | |||||
| 23 | W10839397 | Divider, Large Pantry (Replaces: W10328402) |
|
$ 49.38 | |||||
| 24 | W10328403A | Divider, Small Pantry (Replaces: W10328403) |
|
$ 38.05 | |||||
| 25 | W11291138 | Switch, Rocker (Replaces: 12466104) |
|
Immediately | $ 36.67 | ||||
| 26 | W10311723 | Rail, Pantry (left Hand) |
|
$ 135.27 | |||||
| 27 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.85 | ||||
| 28 | W10331298 | Rail, Rear Pantry |
|
- | |||||
| 29 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 30 | W10311725 | Cover, Pantry Rail (left Hand) |
|
$ 17.37 | |||||
| 31 | WP12227305WD | Brace, Crisper Cover (Replaces: 12227305WD) |
|
$ 103.20 | |||||
| 32 | WPW10296571 | Glass, Pantry Shelf (Replaces: W10346616) |
|
$ 235.33 | |||||
| 33 | W10335721 | Harness, Rc-led |
|
- | |||||
| 34 | WPW10314520K | Handle, Snack Pan (white) (Replaces: W10314520K) |
|
$ 230.15 | |||||
| 10A | W11093714 | Adapter, Pantry (right Hand) (Replaces: W10295157) |
|
$ 131.73 | |||||
| 12A | W10294414 | Cover, Gear (right Hand) |
|
$ 79.50 | |||||
| 16A | W10251968 | Ladder, Side (right Hand) |
|
$ 26.08 | |||||
| 26A | W11715934 | Rail, Pantry (right Hand) (Replaces: W10311726) |
|
$ 43.64 | |||||
| 2A | WPW10346890 | Runner, Pan Roller (right Hand) (Replaces: W10346890) |
|
Immediately | $ 277.52 | ||||
| 34A | W10314521K | Handle, Snack Pan (black) |
|
- | |||||
| 34B | WPW10314522K | Handle, Snack Pan (stainless) (Replaces: W10314522K) |
|
$ 267.33 | |||||
| 7A | 13107112BQ | Door, Pantry (black) (Replaces: 13107112B) |
|
$ 762.47 | |||||
| 7B | 13107112SQ | Door, Pantry (stainless) (Replaces: 13107112S) |
|
$ 967.96 | |||||
| 8A | W11625002 | Gasket, Pantry (black) (Replaces: W10436255) |
|
$ 231.55 | |||||
| 8B | WPW10443326 | Gasket, Pantry (grey) (Replaces: W10443326) |
|
$ 331.11 |
