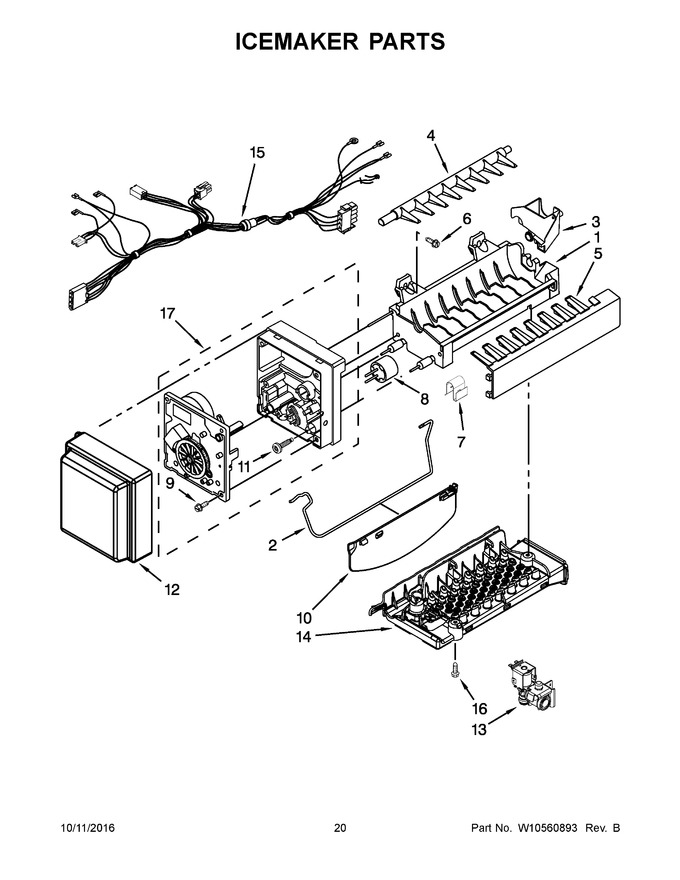

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10300025 | Assembly, Mold And Heater (Replaces: W10300025) |
|
Immediately | $ 192.30 | ||||
| 2 | WPW10378254 | Arm, Shutoff (Replaces: W10378254) |
|
$ 76.07 | |||||
| 3 | W10377998 | Cup, Fill |
|
$ 79.08 | |||||
| 4 | W10318914 | Ejector |
|
$ 36.27 | |||||
| 5 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 94.69 | |||||
| 6 | WPW10068250 | Screw (Replaces: W10068250) |
|
$ 4.07 | |||||
| 7 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 8 | WP627985 | Thermostat (Replaces: W10290336) |
|
$ 109.18 | |||||
| 9 | W10001240 | Screw |
|
$ 8.78 | |||||
| 10 | WPW10351019 | Extension, Shutoff Arm (Replaces: W10351019) |
|
$ 80.66 | |||||
| 11 | 8533917 | Screw |
|
$ 13.37 | |||||
| 12 | W10460383 | Cover, Front |
|
$ 98.16 | |||||
| 13 | WPW10498990 | Valve, Solenoid (Replaces: W10498990) |
|
Immediately | $ 200.66 | ||||
| 14 | WPW10312691 | Assembly, Impinger (Replaces: W10312691) |
|
$ 349.21 | |||||
| 15 | W11029433 | Harness, Icemaker (Replaces: W10404016) |
|
$ 254.54 | |||||
| 16 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 17 | W10882923 | Assembly, Module And Motor (Replaces: W10377147) |
|
Immediately | $ 199.01 | ||||
| 100 | W10882923 | Assembly, Icemaker (Replaces: W10377151) |
|
Immediately | $ 199.01 |
