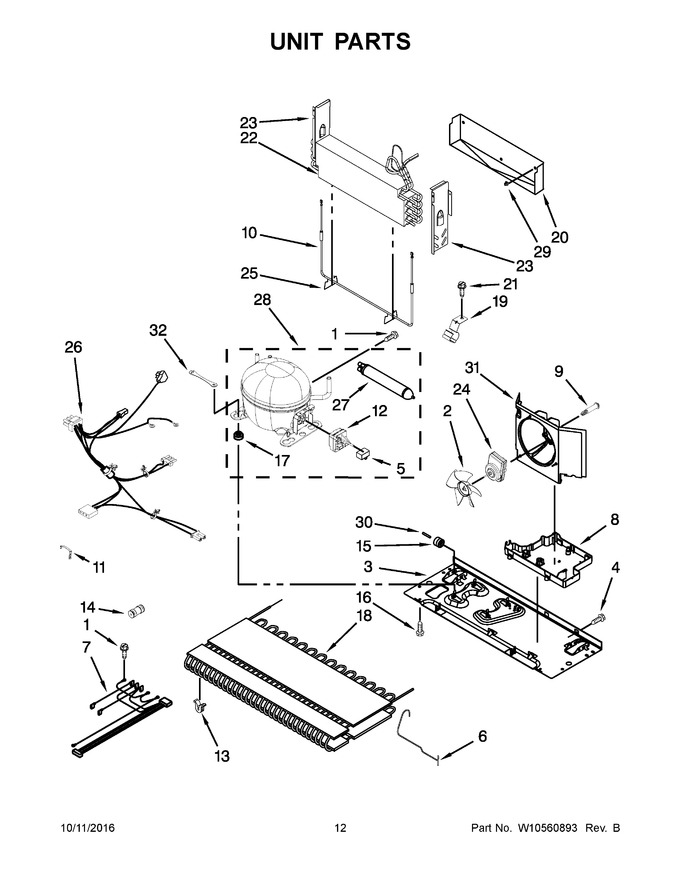

07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Motor And Ice Container Parts


11 - Icemaker Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 75.12
3	W11727651		Basepan   (Replaces: W10480111)				$ 105.29
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
5	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 99.49
6	W10242974		Tube, Discharge				$ 82.85
7	W11334745		Motor, Evaporator (includes Heater Harness, Defrost Thermostat And Thermistor)   (Replaces: W10276647)			Immediately	$ 133.52
8	WPW10655368		Pan, Drain   (Replaces: W10296785)			Immediately	$ 99.03
9	W10829281		Screw   (Replaces: W10216919)				$ 12.65
10	WP12729123		Heater, Defrost   (Replaces: 12729123)				$ 182.32
11	W10204187		Strap, Bale		Appelez-nous	-
12	WPW10197428		Device, Combination Start (start Relay And Overload)   (Replaces: W10197428)			Immediately	$ 89.21
13	WPW10137529		Grommet, Condenser   (Replaces: W10137529)				$ 8.34
14	WPW10334458		Connector, Water Tube   (Replaces: W10334458)				$ 21.59
15	12477102		Roller			Immediately	$ 7.38
16	12992101		Screw		Appelez-nous	-
17	WPW10169124		Grommet   (Replaces: 10835903)			Immediately	$ 7.19
18	WPW10346415		Condenser   (Replaces: W10346415)				$ 335.38
19	W10281329		Clip, Drier				$ 13.08
20	W11547653		Tray, Drip   (Replaces: W10292803)				$ 54.30
21	W11686675		Screw   (Replaces: 12990702)				$ 13.59
22	W11536253		Evaporator   (Replaces: W10313899)				$ 250.69
23	12963102SP		Dam (right Hand)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: W10239053)			Immediately	$ 136.84
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	W10402006		Harness, Unit (includes Power Cord)		Appelez-nous	-
27	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
28	WPW10466675		Compressor (also Order 876765 Tube Kit)   (Replaces: W10391109)				$ 794.79
29	10623002		Clip, Evaporator				$ 11.53
30	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.52
31	W11556315		Shroud, Condenser Fan   (Replaces: W10189184)				$ 79.66
32	W10236396		Strap, Compressor			Immediately	$ 19.82
23A	12963002SP		Dam (left Hand)		Appelez-nous	-
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 130.71
NI	876764		Valve, Access			Immediately	$ 91.35
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 105.25
NI	N/P		Refrigerant Charge 5.50 Oz. (r-134a)		Appelez-nous	-
NI	978026		Valve, Access			Immediately	$ 128.09
