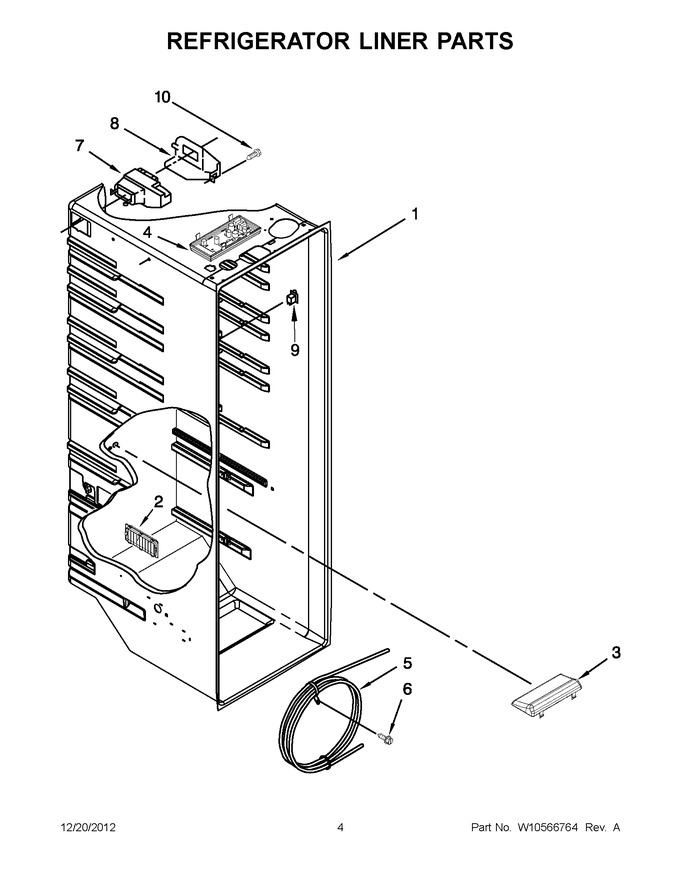

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 2257741 | Louver |
|
- | |||||
| 3 | WPW10515057 | Led Light Assembly Tapered Lens (Replaces: W10398007) |
|
Immediately | $ 47.29 | ||||
| 4 | WPW10515058 | Led Light Assembly Flat Lens (Replaces: W10522611) |
|
Immediately | $ 37.12 | ||||
| 5 | WPW10276792 | Reservoir (Replaces: W10276792) |
|
$ 144.45 | |||||
| 6 | 488280 | Screws |
|
- | |||||
| 7 | W10899382 | Air Diffuser Assembly (Replaces: W10128734) |
|
$ 201.44 | |||||
| 8 | W10128735 | Cover, Air Diffuser |
|
- | |||||
| 9 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 10 | W10759522 | Screw (Replaces: 486298) |
|
$ 8.24 |
