01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Parts

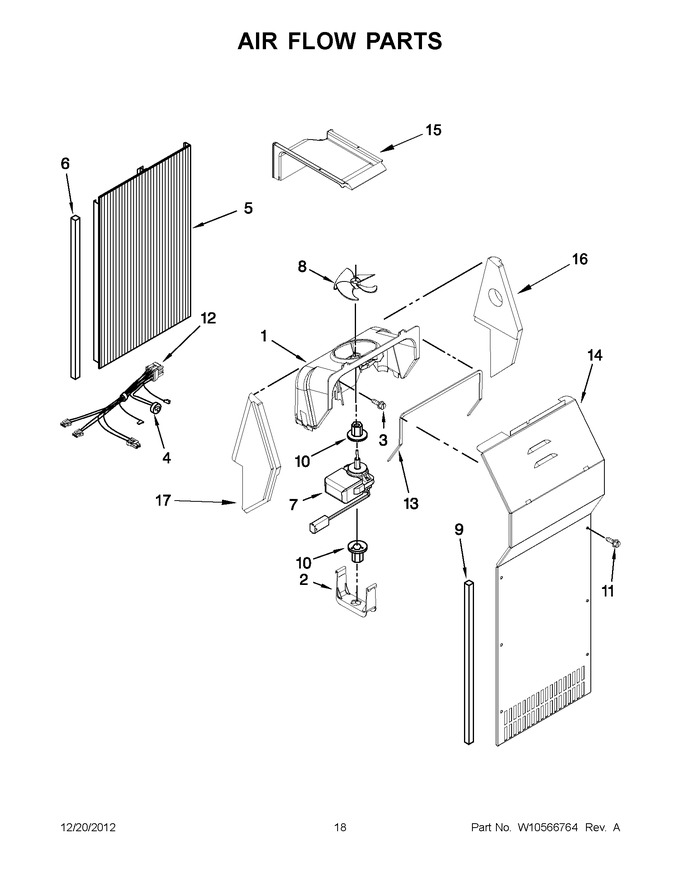

09 - Air Flow Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2182120)			Immediately	$ 117.57
2	W11671527		Retainer, Fan Motor   (Replaces: W10260421)				$ 24.00
3	WP489478		Screw   (Replaces: 489478)				$ 8.18
4	WPW10225581		Bi-metal, Defrost   (Replaces: W10225581)			Immediately	$ 50.77
5	2312010		Air Duct Freezer		Appelez-nous	-
6	2313327		Gasket		Appelez-nous	-
7	4389144		Fan Motor   (Replaces: W10312647)			Immediately	$ 97.33
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2304241		Gasket, Evaporator Cover   (Replaces: 2304241)			Immediately	$ 86.94
10	WP2176759		Grommet, Motor   (Replaces: 2176759)				$ 8.16
11	4389654		Screw   (Replaces: 8281159)				$ 14.58
12	W10539759		Harness, Evaporator Fan				$ 81.17
13	WP2155789		Gasket, Evaporator Cover   (Replaces: 2155789)				$ 8.18
14	W11720796		Cover, Evaporator   (Replaces: W10505307)		Appelez-nous	-
15	2313359		Duct, Upper   (Replaces: W10272514)				$ 110.22
16	4388358		Support, Right Hand   (Replaces: 2203595)				$ 32.72
17	4388358		Support, Left Hand   (Replaces: 2203596)				$ 32.72
