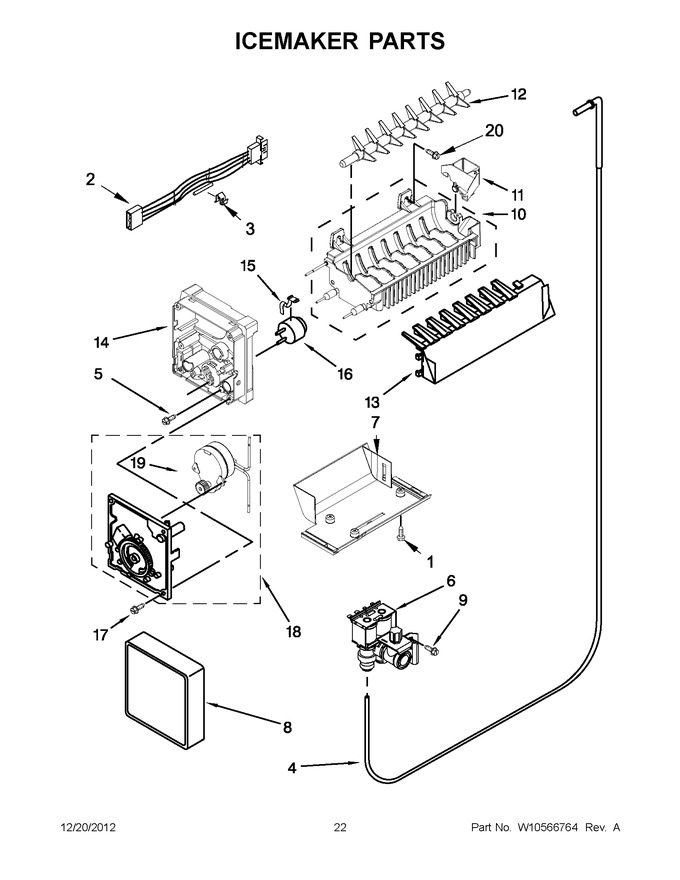

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 2 | W11643622 | Wire Assembly, Ice Maker (Replaces: W10309400) |
|
$ 28.48 | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 4 | 2303216 | Fitting, Water |
|
$ 55.81 | |||||
| 5 | W10001280 | Screw |
|
- | |||||
| 6 | WPW10179146 | Filter Valve Assembly (Replaces: W10179146) |
|
Immediately | $ 116.61 | ||||
| 7 | 2303583 | Bracket, Icemaker Mounting |
|
$ 46.76 | |||||
| 8 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 8.82 | ||||
| 9 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 10 | WPW10300025 | Assembly, Mold & Heater (Replaces: W10300025) |
|
Immediately | $ 201.92 | ||||
| 11 | W11676540 | Cup-water Fill (Replaces: W10435665) |
|
$ 22.65 | |||||
| 12 | W10318914 | Ejector, Arm |
|
$ 38.08 | |||||
| 13 | WPW10272161 | Stripper, Ice (Replaces: W10272161) |
|
$ 72.82 | |||||
| 14 | WP2195914 | Support (Replaces: 2195914) |
|
$ 109.80 | |||||
| 15 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 16 | 628532 | Thermostat (also Order 542369 Cement Alumilastic) |
|
$ 109.07 | |||||
| 17 | W10001240 | Screw |
|
$ 9.22 | |||||
| 18 | 8201515 | Assembly, Module (Replaces: 626691) |
|
Immediately | $ 159.78 | ||||
| 19 | 8201515 | Motor, Module Assembly (Replaces: 626683) |
|
Immediately | $ 159.78 | ||||
| 20 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 100 | W11512152 | Complete Icemaker Assembly (Replaces: W10300023) |
|
$ 216.72 |
