SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door

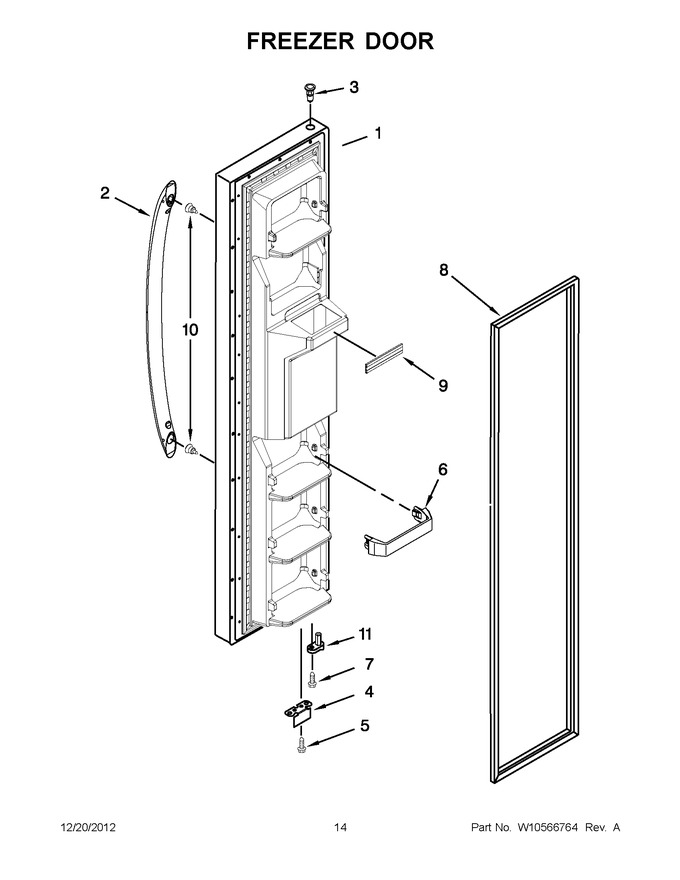

07 - Freezer Door


08 - Dispenser Parts


09 - Air Flow Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10505318		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10505319		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10505320		Freezer Door (includes Item 8 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
1	W10525826		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit/bisque)		Appelez-nous	-
2	W10398788		Handle (black)		Appelez-nous	-
2	W10899551		Handle (stainless)   (Replaces: W10407272)			Immediately	$ 188.82
2	WPW10398789		Handle (biscuit/bisque)   (Replaces: W10398789)				$ 265.80
2	W10848410		Handle (white)   (Replaces: W10357236)				$ 203.72
3	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
4	2323534		Bracket, Door Stop (silver)		Appelez-nous	-
5	WP489483		Screw   (Replaces: 489420)				$ 11.41
6	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 332.49
8	2159074		Door Gasket, Magnetic (beige)   (Replaces: 2309532)				$ 325.70
8	W10136735		Door Gasket, Magnetic (grey)   (Replaces: 2327164)				$ 315.51
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 24.27
10	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
11	2323535		Door Closer, Upper Cam (silver)				$ 33.97

    View Diagram in Separate Window       Print Part List
