01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Shelf Parts


06 - Refrigerator Door Parts


07 - Freezer Door And Basket Parts


08 - Top Grille And Unit Cover


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Ice Maker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

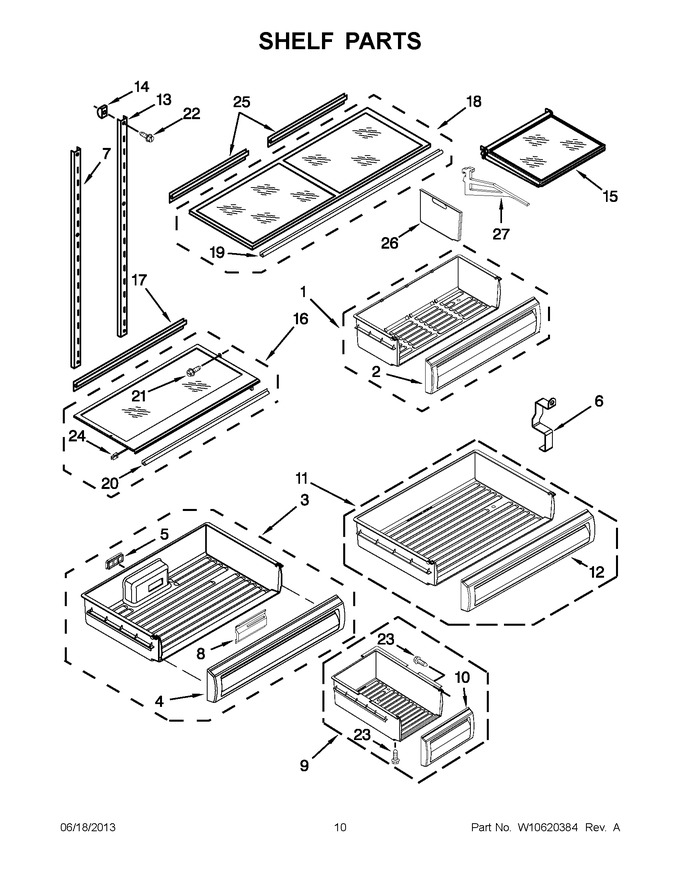

1	WP2256375		Crisper Pan Assembly (includes Item 2)   (Replaces: W10407629)				$ 378.33
2	2256374		Front, Crisper Pan		Appelez-nous	-
3	W10407636		Deli Pan Assembly		Appelez-nous	-
4	2257548		Front, Deli Pan				$ 157.61
5	2307810		Duct, Deli Pan		Appelez-nous	-
6	2327393		Clip, Bin (right Hand)				$ 61.29
6	2327394		Clip, Bin (left Hand)		Appelez-nous	-
7	W10246602		Ladder, Shelf (center)		Appelez-nous	-
8	2317939		Air Deflector		Appelez-nous	-
9	2306174		Assembly, Ice Pan				$ 147.41
10	2306175		Front, Ice Pan				$ 91.39
11	2327512		Freezer Pan Assembly		Appelez-nous	-
12	2268383		Front, Freezer Pan		Appelez-nous	-
13	W10213472		Ladder, Shelf Side		Appelez-nous	-
14	520965		Support, Ladder				$ 29.86
15	WPW10198700		Shelf   (Replaces: W10198700)				$ 297.81
16	W10183750		Cover, Deli Bin		Appelez-nous	-
17	2309399		Gasket, Rear (deli Cover)		Appelez-nous	-
18	W10183749		Cover, Crisper		Appelez-nous	-
19	2309397		Gasket, Cover Front		Appelez-nous	-
20	2309397		Gasket, Cover Front		Appelez-nous	-
21	W10825422		Screw (white)   (Replaces: 8281251)				$ 10.82
22	2006475		Screw (white)		Appelez-nous	-
23	WP488787		Screw   (Replaces: 488886)				$ 10.58
24	2309393		Light Assembly, (deli)		Appelez-nous	-
25	2309398		Cover, Rear Gasket		Appelez-nous	-
26	2256474		Divider, Crisper				$ 87.99
27	W10187549		Sidearm, Shelf				$ 284.88

    View Diagram in Separate Window       Print Part List
