SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Shelf Parts


06 - Refrigerator Door Parts

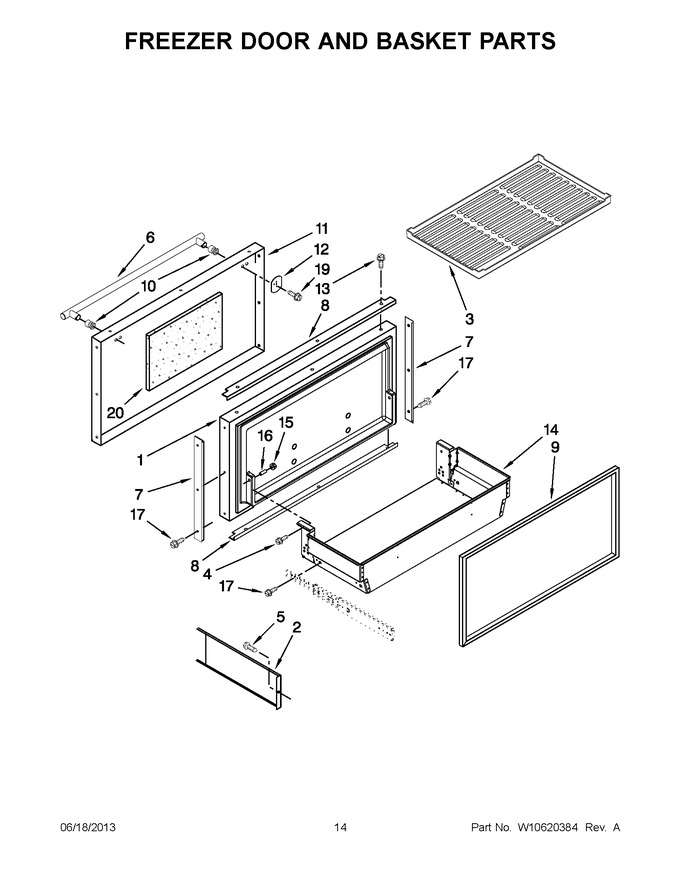

07 - Freezer Door And Basket Parts


08 - Top Grille And Unit Cover


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Ice Maker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258746		Freezer Door Panel		Appelez-nous	-
2	2317101		Divider, Basket		Appelez-nous	-
3	W10168937		Mat, Basket		Appelez-nous	-
4	W10135775		Screw				$ 14.93
5	WP488234		Screw   (Replaces: W10135792)				$ 7.08
6	WPW10298179		Handle, Door (stainless)   (Replaces: W10298179)				$ 319.69
7	2300025		Spacer, Door Edge Side		Appelez-nous	-
8	2300027		Spacer, Door Edge		Appelez-nous	-
9	W11624996		Door Gasket, Magnetic   (Replaces: W10144009)			Immediately	$ 243.72
10	WPW10168981		Mount, Handle   (Replaces: W10168981)				$ 17.69
11	W10523749		Skin, Door		Appelez-nous	-
12	W10127710		Plate, Handle Door			Immediately	$ 25.94
13	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
14	W10258182		Basket Assembly, Freezer				$ 254.40
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
16	W10001190		Washer				$ 8.80
17	W10109030		Screw				$ 15.35
19	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
20	2327468		Filler, Foam		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
