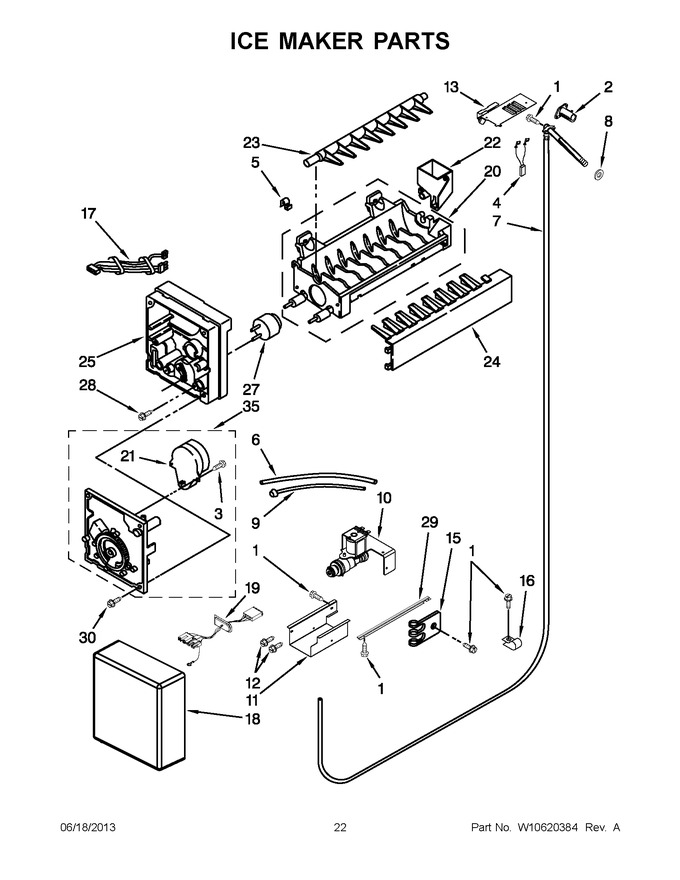

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 2 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 196.74 | |||||
| 3 | 489136 | Screw |
|
$ 10.29 | |||||
| 4 | W10482373 | Wire Assembly, Fill Tube Heater |
|
$ 119.14 | |||||
| 5 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 6 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 64.66 | |||||
| 7 | 2317847 | Tube Assembly, Water Inlet |
|
$ 82.24 | |||||
| 8 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: W10437853) |
|
Immediately | $ 31.57 | ||||
| 10 | WP2307650 | Valve, Solenoid (Replaces: 2307650) |
|
Immediately | $ 203.52 | ||||
| 11 | W10129653 | Shield, Valve Electrical |
|
- | |||||
| 12 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 13 | WP2221231 | Shield, Heat (Replaces: 2221231) |
|
$ 85.08 | |||||
| 15 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.18 | |||||
| 16 | W10331955 | Clamp, Tube |
|
- | |||||
| 17 | W10508673 | Wire Assembly, Ice Maker |
|
$ 117.74 | |||||
| 18 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 8.40 | ||||
| 19 | W10279393 | Wire Assembly (water Valve) |
|
$ 149.59 | |||||
| 20 | WPW10190929 | Assembly, Mold And Heater (Replaces: W10122527) |
|
$ 233.15 | |||||
| 21 | N/P | Motor (not Available, Order No.35) |
|
- | |||||
| 22 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 21.57 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 24 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 94.69 | |||||
| 25 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 104.57 | |||||
| 27 | WP627985 | Thermostat (Replaces: 627985) |
|
$ 109.18 | |||||
| 28 | W10001280 | Screw |
|
- | |||||
| 29 | 2320559 | Support, Valve |
|
$ 84.56 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 35 | 8201515 | Assembly, Module And Motor (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 100 | WPW10277450 | Complete Icemaker Assembly (Replaces: W10277450) |
|
Immediately | $ 268.05 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 8537055 | Cleaner, Stainless Steel (2 Oz) |
|
- |
