01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Shelf Parts


06 - Refrigerator Door Parts


07 - Freezer Door And Basket Parts


08 - Top Grille And Unit Cover


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Ice Maker Parts

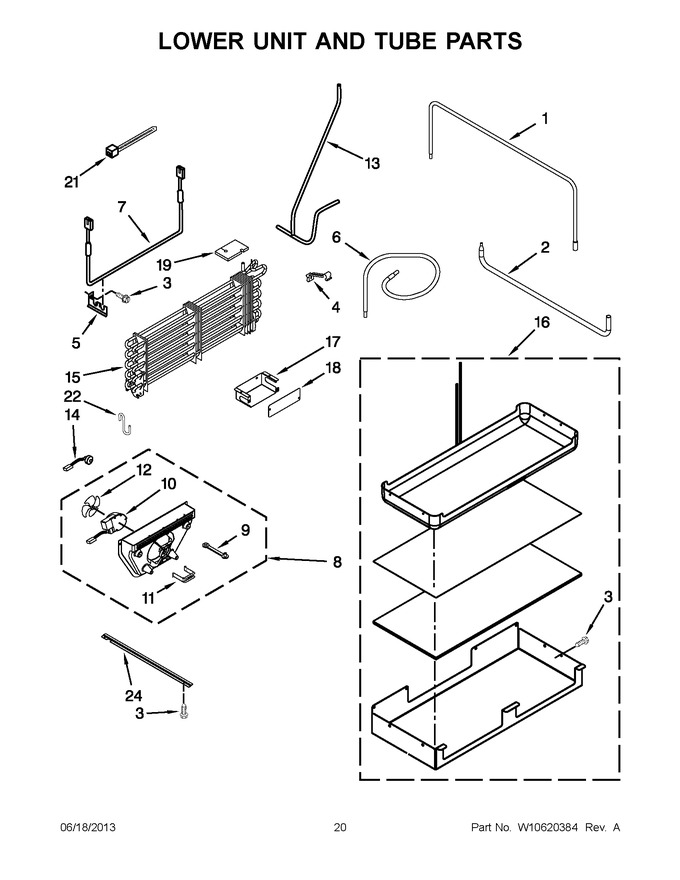

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309072		Tube, Transition (condenser/drain Pan)		Appelez-nous	-
2	W10388653		Tube, Transition (drier/restrictor)			Immediately	$ 38.55
3	W11624204		Screw   (Replaces: 486194)				$ 14.02
4	2307944		Clip, Evaporator Heater		Appelez-nous	-
5	2307945		Bracket, Mounting		Appelez-nous	-
6	W10306442		Tube, Oil Trap Suction		Appelez-nous	-
7	WP2268393		Heater, Defrost   (Replaces: 2268393)				$ 160.18
8	W10321092		Scroll Assembly				$ 239.26
9	W11671528		Grommet, Motor   (Replaces: W10321090)		Appelez-nous	-
10	W11671461		Motor, Fan   (Replaces: W10436861)			Immediately	$ 196.69
11	W11671527		Retainer, Fan Motor   (Replaces: W10260421)				$ 22.86
12	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
13	W10404239		Tube, Discharge Assembly		Appelez-nous	-
14	W10482185		Harness, Bi-metal				$ 241.75
15	WPW10195923		Evaporator Assembly   (Replaces: W10195923)			Immediately	$ 371.57
16	W11623101		Drain Pan Assembly   (Replaces: W10281063)			Immediately	$ 375.26
17	WPW10309012		Cover, Wiring   (Replaces: W10309012)				$ 77.64
18	W11756952		Cover, Wire Box   (Replaces: W10321048)		Appelez-nous	-
19	2306180		Block, Evaporator Water Filter		Appelez-nous	-
21	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 7.90
22	2317920		Clip, Defrost Heater		Appelez-nous	-
24	2320554		Support, Drain Pan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
