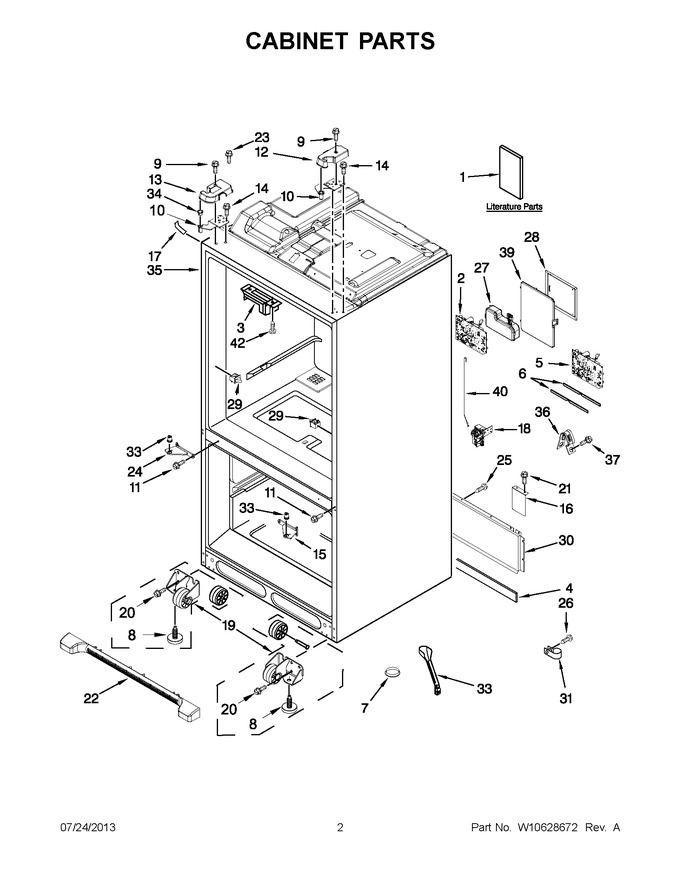

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Motor And Ice Container Parts


10 - Icemaker Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10591246		Tech Sheet		Appelez-nous	-
1	W10446590		Guide, Energy		Appelez-nous	-
1	W10417009		Owners Manual		Appelez-nous	-
2	WPW10453401		Power Supply   (Replaces: W10453401)			Immediately	$ 247.11
3	WPW10344432		Block, Pivot   (Replaces: W10344432)			Immediately	$ 19.16
4	W10505487		Gasket				$ 28.68
5	WPW10589837		Board, Control   (Replaces: W10589837)			Immediately	$ 453.33
6	W10415341		Gasket, Hv Box				$ 37.00
7	A3076901		Plug, Button				$ 5.70
8	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
9	WP98165		Screw   (Replaces: 12990521)				$ 8.57
10	W11592404		Hinge, Top (right Hand)   (Replaces: W10248409)				$ 25.90
10	W11592405		Hinge, Top (left Hand)   (Replaces: W10248410)				$ 32.31
11	W10403208		Screw (white)				$ 14.04
11	W11573362		Screw (grey)   (Replaces: W10403212)				$ 14.72
11	W10403211		Screw (black)				$ 78.33
12	W10248562		Cover, Right Hinge (white)		Appelez-nous	-
12	W10407157		Cover, Right Hinge (black)				$ 23.06
12	WPW10407158		Cover, Right Hinge (grey)   (Replaces: W10407158)				$ 22.98
13	WPW10471618		Cover, Left Hinge (grey)   (Replaces: W10471618)				$ 25.27
13	W10471615		Cover, Left Hinge (white)				$ 20.70
13	W10471617		Cover, Left Hinge (black)				$ 24.13
14	WPW10308751		Screw, Black   (Replaces: W10308751)				$ 8.84
15	W11240748		Hinge, Center (rt) (grey)   (Replaces: W10248703)				$ 78.71
15	W10407275		Hinge, Center (rt) (black)   (Replaces: W10248702)				$ 79.94
15	W10248433		Hinge, Center (rt) (white)				$ 85.33
16	W10336736		Cover, Roller		Appelez-nous	-
17	12587703W		Cover, Corner (white)				$ 22.90
17	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 8.07
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 22.14
18	W10865826		Valve, Water   (Replaces: W10394076)			Immediately	$ 69.09
19	W11820445		Roller Assembly (right Hand)   (Replaces: W10515762)			Immediately	$ 37.35
19	W11820444		Roller Assembly (left Hand)   (Replaces: W10515763)			Immediately	$ 37.35
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 8.15
21	WP33001882		Screw   (Replaces: 12990701)				$ 83.71
22	WPW10637668		Grille, Toe (white)   (Replaces: W10485160)				$ 138.98
22	WPW10637671		Grille, Toe (grey)   (Replaces: W10485164)			Immediately	$ 143.46
22	WPW10637669		Grille, Toe (black)   (Replaces: W10485161)				$ 134.32
23	W11214483		Screw   (Replaces: 12992601)			Immediately	$ 14.72
24	W10407279		Hinge, Center (lt) (black)   (Replaces: W10248705)				$ 82.59
24	W10878115		Hinge, Center (lt) (grey)   (Replaces: W10248706)			Immediately	$ 76.85
24	W10248434		Hinge, Center (lt) (white)				$ 84.85
25	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
26	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
27	WPW10306786		Supply, Power Led   (Replaces: W10421948)			Immediately	$ 319.36
28	WPW10485658		Cover, Control Box   (Replaces: W10485658)				$ 83.03
29	W11396033		Switch, Light   (Replaces: 12466105)			Immediately	$ 37.30
30	W11482027		Cover-back   (Replaces: W10544171)			Immediately	$ 121.36
31	W11456069		Clamp-tube   (Replaces: M0108107)			Immediately	$ 22.40
32	W10503562		Tube, Drain				$ 24.25
33	WPW10505294		Coupler, Door   (Replaces: W10505294)				$ 11.90
34	W10212137		Retainer, Door				$ 13.69
35	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
36	549193		Clamp, Power Cord				$ 14.06
37	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
38	W10854958		Screw   (Replaces: 12990302)				$ 7.90
39	W10277839		Lid, Hv				$ 73.91
40	W11308813		Tube-water   (Replaces: W10277931)			Immediately	$ 124.33
