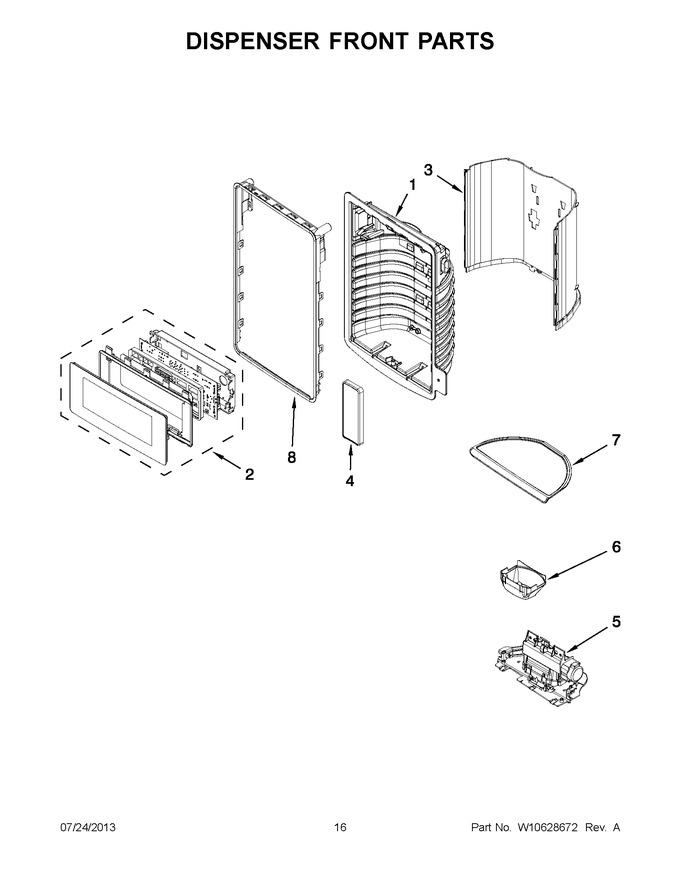

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10861900		Ui Assembly (silver)   (Replaces: W10590567)				$ 457.58
2	W10590566		Ui Assembly (black)		Appelez-nous	-
3	W10446193		False Wall, Dispenser (white)		Appelez-nous	-
3	W10446192		False Wall, Dispenser (black)		Appelez-nous	-
3	W10606648		False Wall, Dispenser (grey)   (Replaces: W10402141)				$ 251.77
3	W10606653		False Wall, Dispenser (grey (wrf989sdahx))   (Replaces: W10402146)				$ 296.14
4	W11028219		Pad Assembly (cast Grey)   (Replaces: W10473006)				$ 85.54
4	WPW10420671		Pad Assembly (cast Grey (wrf989sdahx))   (Replaces: W10420671)			Immediately	$ 289.81
4	WPW10370592		Pad Assembly (black)   (Replaces: W10370592)				$ 322.90
4	W10853387		Pad Assembly (tempest Grey)   (Replaces: W10473007)				$ 290.31
5	WPW10291704		Assembly, Separator   (Replaces: W10291704)				$ 192.66
6	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
7	W10606644		Tray, Drip (white)   (Replaces: W10446197)				$ 42.38
7	W10446196		Tray, Drip (black)		Appelez-nous	-
7	WPW10606639		Tray, Drip (grey)   (Replaces: W10402167)				$ 101.40
7	W10606641		Tray, Drip (grey (wrf989sdahx))   (Replaces: W10402170)				$ 114.73
8	W10462438		Ring, Trim (white)				$ 38.57
8	W10462439		Ring, Trim (black)				$ 38.46
8	WPW10402180		Ring, Trim (chrome)   (Replaces: W10402180)			Immediately	$ 60.92
