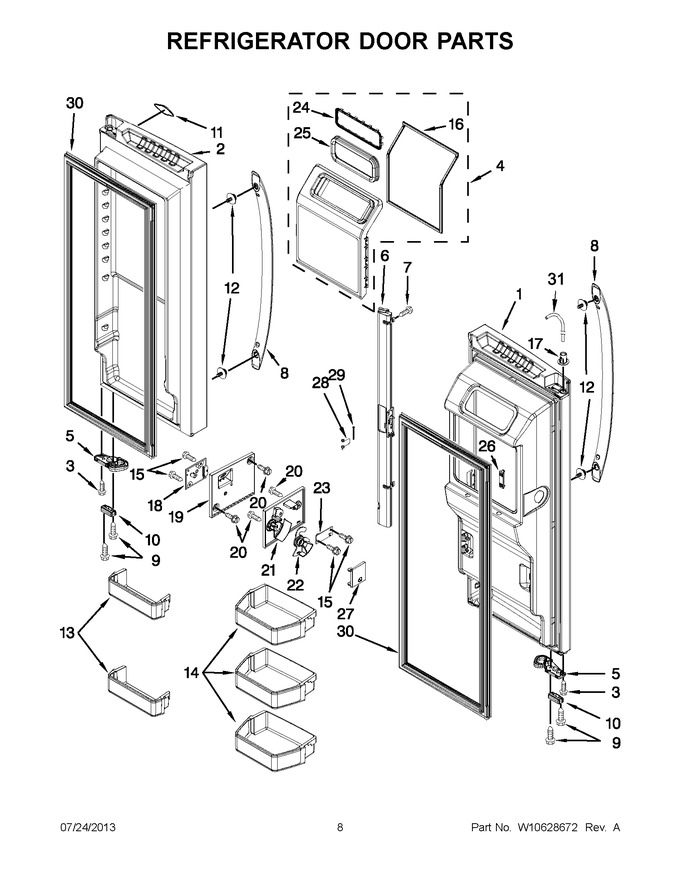

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10561921		Door, Left (white)		Appelez-nous	-
1	W10561924		Door, Left (black)		Appelez-nous	-
1	LW10561928		Door, Left (stainless)   (Replaces: W10561928)				$ 1,431.62
1	W10561933		Door, Left (sparkle Steel)		Appelez-nous	-
2	W10403290		Door, Right (sparkle Steel)		Appelez-nous	-
2	W10340316		Door, Right (white)		Appelez-nous	-
2	LW10341282		Door, Right (black)   (Replaces: W10341282)				$ 1,199.61
2	LW10341284		Door, Right (stainless)   (Replaces: W10341284)				$ 1,223.19
3	WPW10464016		Screw   (Replaces: W10464016)				$ 12.94
4	WPW10549589		Door, Ice   (Replaces: W10492469)				$ 372.28
5	W10857643		Latch, Door (left Hand)   (Replaces: W10355634)				$ 87.76
5	WPW10372267		Latch, Door (right Hand)   (Replaces: W10372267)				$ 13.98
6	W10806457		Mullion, Door (grey)   (Replaces: W10407254)			Immediately	$ 283.65
6	W10698196		Mullion, Door (black)   (Replaces: W10407253)				$ 145.06
6	W10846151		Mullion, Door (white)   (Replaces: W10407252)				$ 140.65
7	W11311945		Screw   (Replaces: 12990204)				$ 14.72
8	W10805245		Handle, Door (black)   (Replaces: W10548947)				$ 227.50
8	W10848410		Handle, Door (white)   (Replaces: W10548948)				$ 203.72
8	W10899551		Handle, Door (brushed Aluminum)   (Replaces: W10407272)			Immediately	$ 188.82
9	WP98165		Screw   (Replaces: 12990504)				$ 8.57
10	W11687672		Bumper, Door (white)   (Replaces: W10407175)				$ 14.93
11	WPW10393265		Nameplate (grey)   (Replaces: W10393265)			Immediately	$ 73.15
11	WPW10391355		Nameplate (white)   (Replaces: W10391355)				$ 75.65
12	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
13	W10539117		Trivet, 2 Liter				$ 32.19
14	W10467435		Bucket, Gallon		Appelez-nous	-
15	2006254		Screw   (Replaces: 489214)				$ 13.79
16	W11624997		Gasket, Ice Door   (Replaces: W10347085)				$ 69.41
17	W10562834		Clip-tube   (Replaces: W10245516)				$ 15.66
18	W11813704		Circuit Board, Receiver   (Replaces: W10518658)			Immediately	$ 328.97
19	W11763407		Cover, Receiver   (Replaces: W10258510)				$ 44.50
20	WP3400065		Screw (stainless)   (Replaces: 3400065)			Immediately	$ 8.18
21	W10258502		Cover, Emitter				$ 89.74
22	W10258540		Slide, Icemaker Shut Off				$ 11.15
23	W10870822		Circuit Board, Emitter   (Replaces: W10518659)			Immediately	$ 222.54
24	WPW10400825		Retainer,ice Chute   (Replaces: W10400825)				$ 32.32
25	WPW10347087		Gasket, Ice Chute   (Replaces: W10347087)				$ 48.97
26	W10347053		Vent, Thermistor		Appelez-nous	-
27	WPW10258520		Door, Emitter   (Replaces: W10258520)				$ 79.65
28	WP2198635		Spring, Door   (Replaces: 2198635)				$ 91.43
29	WP2198634		Pin, Door   (Replaces: 2198634)				$ 18.65
30	W10407212		Gasket, Door (grey)   (Replaces: W10407146)			Immediately	$ 254.40
30	W10861004		Gasket, Door (black)   (Replaces: W10407145)				$ 331.17
30	W11678967		Gasket, Door (white)   (Replaces: W10249089)				$ 229.41
31	WPW10499015		Tube, Water   (Replaces: W10499015)				$ 128.77
