01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Motor And Ice Container Parts


10 - Icemaker Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

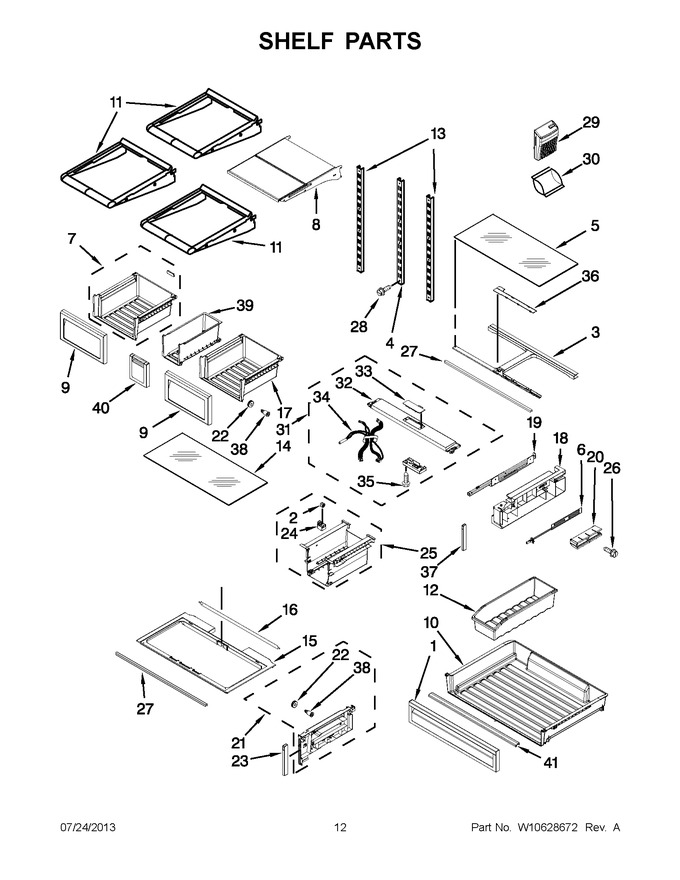

1	WPW10510417		Front, Pantry   (Replaces: W10510417)				$ 105.60
2	W10248789		Roller, Center				$ 19.37
3	WPW10489978		Support, Pantry   (Replaces: W10489978)				$ 56.24
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 35.89
5	WPW10248799		Glass, Pantry   (Replaces: W10248799)				$ 225.08
6	W10342618		Heater, Pantry				$ 88.06
7	W10850377		Pan, Crisper   (Replaces: W10422706)			Immediately	$ 137.11
8	W10467466		Shelf, Tuck				$ 119.01
9	W10839427		Front, Crisper   (Replaces: W10510695)				$ 96.57
10	WPW10654844		Pan, Pantry   (Replaces: W10498901)			Immediately	$ 130.40
11	WPW10467425		Shelf, Stationary   (Replaces: W10467425)				$ 286.49
12	W10467369		Divider, Pantry				$ 24.81
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 50.62
14	WPW10428945		Glass, Crisper   (Replaces: W10428945)				$ 239.49
15	WPW10407377		Cover, Crisper   (Replaces: W10407377)				$ 215.26
16	WPW10248967		Support, Rear   (Replaces: W10248967)				$ 79.09
17	W10850377		Pan, Crisper   (Replaces: W10387757)			Immediately	$ 137.11
18	WPW10498902		Plate, Side Pantry (right Hand)   (Replaces: W10498902)				$ 69.42
18	WPW10498906		Plate, Side Pantry (left Hand)   (Replaces: W10498906)				$ 132.04
19	W11759682		Slide, Pantry (right Hand)   (Replaces: W10499294)				$ 69.89
19	W10499289		Slide, Pantry (left Hand)				$ 354.74
20	W10432697		Insulation, Sideplate				$ 14.63
21	W10549602		Plate, Crisper (right Hand)				$ 126.18
21	W11763411		Plate, Crisper (left Hand)   (Replaces: W10549601)				$ 64.80
22	WPW10248544		Roller, Guide   (Replaces: W10248544)				$ 8.09
23	W10467415		Front, Sideplate (crisper)   (Replaces: W10387761)				$ 72.29
24	W10530314		Housing, Roller				$ 11.36
25	W10662015		Center Crisper Support Assembly   (Replaces: W10549605)				$ 87.71
26	WP8281136		Screw   (Replaces: 8281136)				$ 7.30
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 134.05
28	W10423560		Screw		Appelez-nous	-
29	WPW10408747		Holder, Filter   (Replaces: W10408747)				$ 32.61
30	W10346771		Filter, Produce Preserver		Appelez-nous	-
31	WPW10732686		Cover, Front Incl. Led \assembly   (Replaces: W10584146)				$ 401.09
32	W10398004		Cover, Top		Appelez-nous	-
33	WPW10565996		Assembly, Ui   (Replaces: W10565996)				$ 301.08
34	W10610324		Harness, Wire (includes Thermistor)   (Replaces: W10539187)				$ 129.96
35	W11311945		Screw   (Replaces: 12990204)				$ 14.72
36	W10490266		Support, Pantry Cover				$ 87.36
37	W10467416		Front, Sideplate (pantry)   (Replaces: W10248853)				$ 38.26
38	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
39	WPW10387778		Pan, Crisper   (Replaces: W10387778)				$ 127.48
40	W10467395		Front, Crisper		Appelez-nous	-
41	W10467379		Handle, Pantry				$ 121.02
