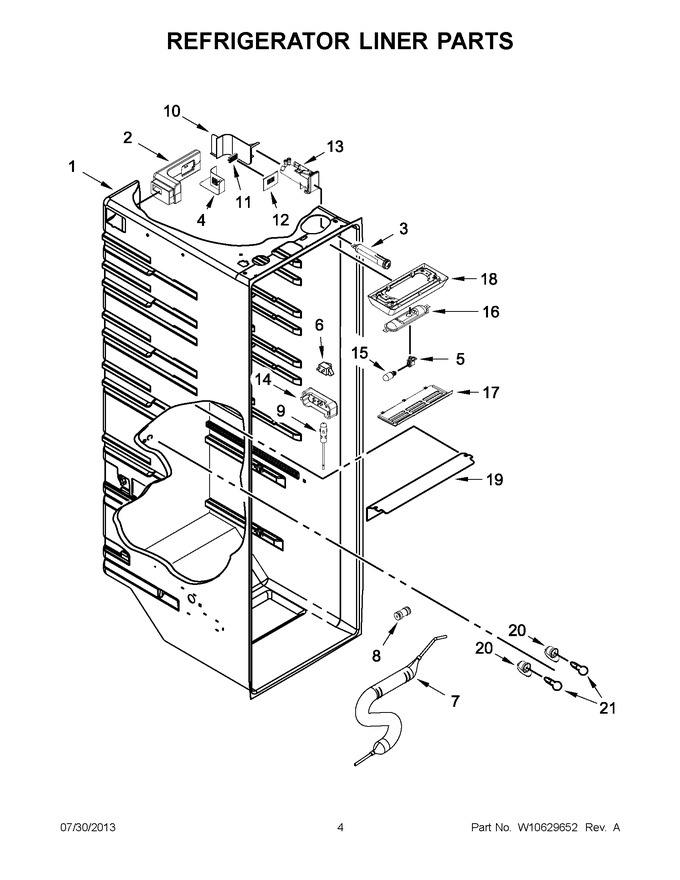

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11164593 | Air Diffuser Assembly (Replaces: W10362947) |
|
Immediately | $ 122.07 | ||||
| 3 | EDR1RXD1B | Water Filter, Pur (Replaces: W10217316) |
|
Immediately | $ 49.99 | ||||
| 4 | WPW10457601 | Air Diffuser Cover (Replaces: W10457601) |
|
$ 157.21 | |||||
| 5 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 8.80 | |||||
| 6 | W11384469 | Switch, Light (Replaces: C3680314) |
|
Immediately | $ 39.09 | ||||
| 7 | W11802492 | Reservoir (Replaces: W10366790) |
|
$ 88.91 | |||||
| 8 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 9 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 10 | W11501035 | Cover, Water Filter (Replaces: W10300482) |
|
$ 15.70 | |||||
| 11 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 12 | WPW10457603 | Air Filter Cover (Replaces: W10457603) |
|
$ 82.14 | |||||
| 13 | WPW10394053 | Housing, Water Filter (Replaces: W10394053) |
|
Immediately | $ 139.80 | ||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 15 | WPA3073101 | Bulb, Light (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 16 | W10289520 | Shield, Heat |
|
- | |||||
| 17 | W10280420 | Lens, Top Light |
|
$ 107.14 | |||||
| 18 | W10280178 | Trim, Light |
|
- | |||||
| 19 | WPW10269099 | Lens, Light (Replaces: W10269099) |
|
$ 128.01 | |||||
| 20 | W11447232 | Socket, Light (Replaces: W10352518) |
|
Immediately | $ 13.87 | ||||
| 21 | W11679940 | Bulb, Light (Replaces: W10311505) |
|
Immediately | $ 11.30 |
