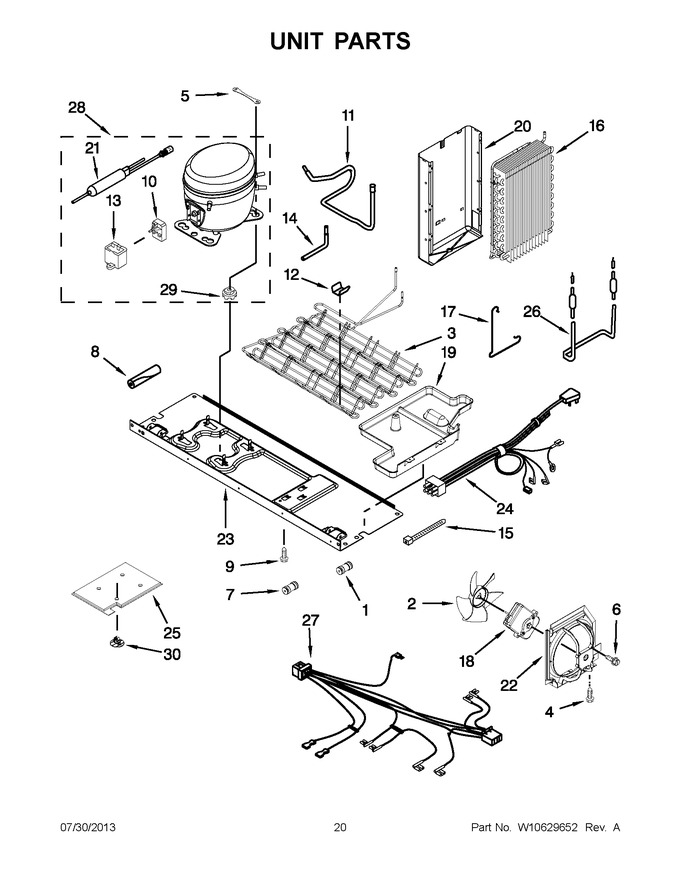

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10271543 | Connector, Water Tube (Replaces: W10271543) |
|
Immediately | $ 35.43 | ||||
| 2 | W10156818 | Blade, Fan (Replaces: 12825802) |
|
Immediately | $ 62.11 | ||||
| 3 | W11708426 | Condenser Assembly (Replaces: W10240365) |
|
$ 271.19 | |||||
| 4 | W10142255 | Screw |
|
- | |||||
| 5 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.61 | ||||
| 7 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 9 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 10 | WPW10260370 | Device, Start (Replaces: W10260370) |
|
$ 188.29 | |||||
| 11 | W11311688 | Tube Suction (Replaces: W10219381) |
|
$ 88.67 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 14 | 2325479 | Tube, Process |
|
- | |||||
| 15 | WP2205813 | Tie, Wire (Replaces: 2205813) |
|
$ 8.11 | |||||
| 16 | WP2188822 | Evaporator, Fc (Replaces: 2188822) |
|
Immediately | $ 356.84 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 19 | WPW10251469 | Tray, Evaporator (Replaces: W10251469) |
|
$ 178.00 | |||||
| 20 | W10274575 | Heat Shield |
|
$ 101.51 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 22 | WPW10251467 | Air Baffle (Replaces: W10251467) |
|
$ 84.80 | |||||
| 23 | W10277704 | Support Plate, Compressor |
|
$ 169.00 | |||||
| 24 | WPW10261232 | Power Cord (Replaces: W10261232) |
|
$ 66.90 | |||||
| 25 | W10284726 | Unit Cover, Bottom |
|
$ 115.91 | |||||
| 26 | WPW10495967 | Heater, Defrost (Replaces: W10495967) |
|
Immediately | $ 167.33 | ||||
| 27 | W11676780 | Harness, Wiring Water Valve/diode (Replaces: W10209479) |
|
$ 77.71 | |||||
| 28 | W10309989 | Compressor (also Order 876765 Tube Kit) (Replaces: W10260368) |
|
Immediately | $ 689.81 | ||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.55 | ||||
| 30 | W10296661 | Clip, Bottom Cover |
|
$ 17.78 | |||||
| NI | N/P | Refrigerant Charge (5.0oz. (r-134a)) |
|
- | |||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access Ÿ``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 110.51 |
